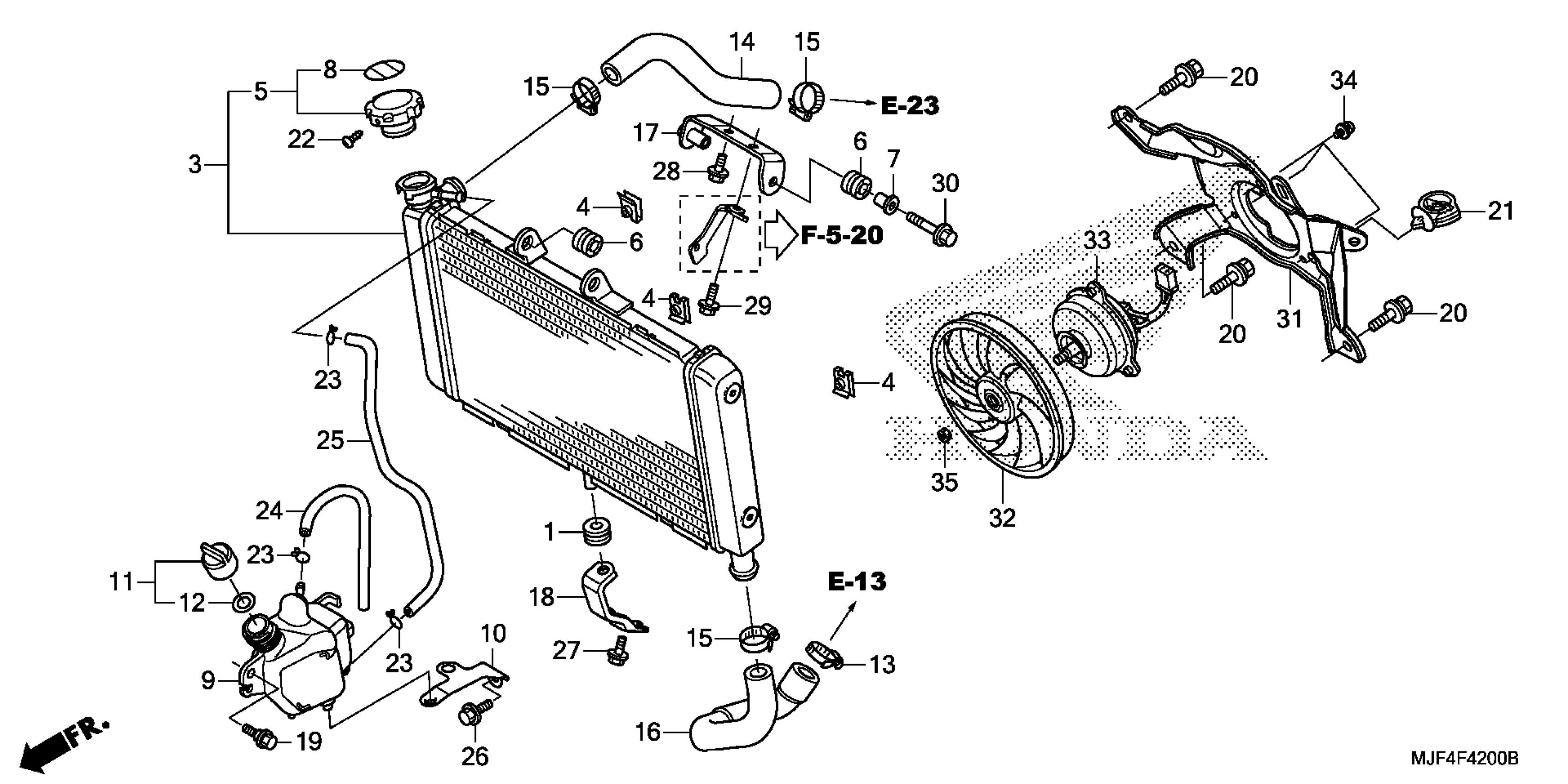

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 RADIATOR Diagram

#

Description
Price

1

RUBBER, CUSHION

17622-GB7-900

$4.78

3

RADIATOR (COO)

19010-MJF-305

$890.36

4

NUT, SETTING (6MM)

19014-KEA-003

$3.10

5

CAP, RADIATOR

19045-MY3-621

$40.44

6

RUBBER, RADIATOR MOUNTING

19051-MGS-D30

$1.82

7

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

8

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$9.22

9

TANK, RADIATOR RESERVE

19101-MGS-D30

$38.85

10

STAY, RESERVE TANK (LOWER)

19104-MGS-D70

$7.00

11

CAP ASSY., RESERVE TANK

19106-GET-000

$6.90

12

GASKET, RESERVE TANK

19107-GET-000

$3.74

13

CLAMP, WATER HOSE (35MM)

19504-MGP-000

$9.41

14

HOSE, RADIATOR (UPPER)

19505-MGS-D30

$14.51

15

CLAMP, WATER HOSE

19505-ML3-770

$7.08

16

HOSE, RADIATOR (LOWER)

19506-MGS-D30

$22.85

17

STAY, RADIATOR (UPPER)

19515-MGS-D30

$8.33

18

STAY, RADIATOR (LOWER) *NH303M* (MAT AXIS GRAY METALLIC) | Digital silver metallic NHA30M;

19516-MGS-D30ZA

$10.00

19

BOLT, FLANGE (6MM)

90111-162-000

$2.89

20

BOLT-WASHER (6X12)

90120-GHB-601

$1.98

21

CLIP, HARNESS

90683-MGC-920

$3.11

22

SCREW, TAPPING (3X8)

93901-22180

$1.49

23

CLIP, TUBE (B10)

95002-02100

$1.90

24

BULK HOSE, VACUUM (5.5X3000) (5.3X380)

95005-55003-20M

$34.09

25

BULK HOSE, VACUUM (5.5X3000) (5.3X580)

95005-55003-20M

$34.09

26

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

27

BOLT, FLANGE (6X14)

95701-06014-02

$1.49

28

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

29

BOLT, FLANGE (6X14)

95701-06014-08

$1.55

30

BOLT, FLANGE (6X25)

95701-06025-08

$1.72

31

SHROUD

19016-MJF-A01

$82.02

32

FAN, COOLING (TOYO)

19020-MGS-D31

$39.67

33

MOTOR ASSY., FAN

19080-MGS-D31

$215.93

34

SCREW-WASHER (4X6)

93891-04006-07

$1.49

35

NUT, FLANGE (3MM)

90315-MFL-003

$2.33

35

NUT, HEX. (3MM)

94001-03000-0S

$1.49
