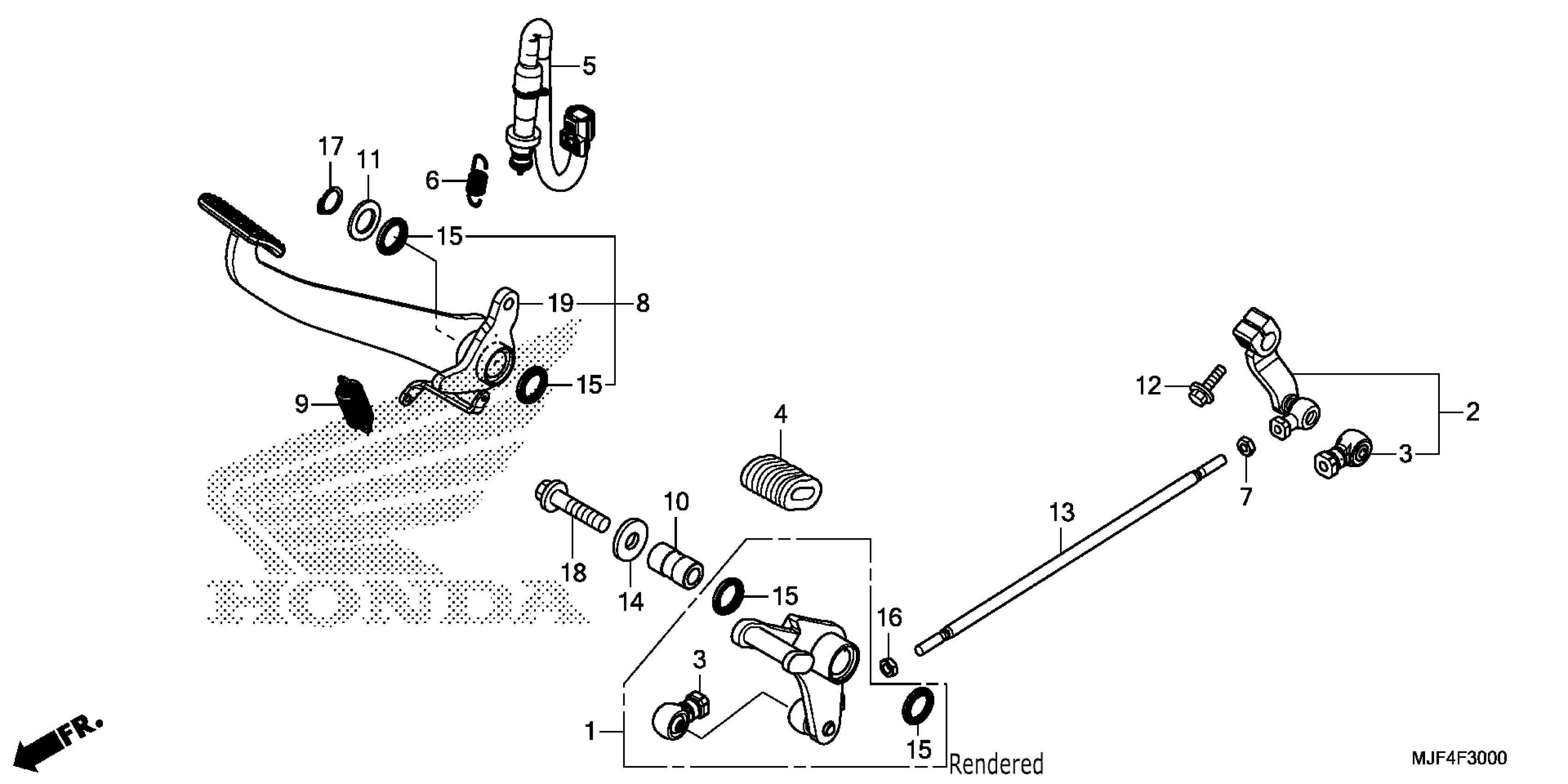

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 PEDAL Diagram

PEDAL, GEARSHIFT This part replaces 24705-MJF-305.

24705-MJF-A00

$106.61

ARM, GEARSHIFT

24710-MJF-A00

$71.93

COVER, DUST

24724-MBW-D21

$6.98

RUBBER, CHANGE PEDAL

24781-371-000

$5.13

SWITCH ASSY., RR. STOP

35350-MJF-A01

$29.72

SPRING, STOP SWITCH

35357-KY1-000

$4.31

NUT, HEX. (6MM) (LEFT HAND THREAD)

45423-KA4-700

$1.55

SPRING, BRAKE PEDAL

46511-MJF-A00

$6.21

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$11.72

WASHER, BUSH

53312-657-000

$6.70

BOLT, FLANGE (6X20)

90010-ML0-720

$2.92

BOLT, TIE ROD

90165-MJF-A00

$13.07

WASHER (10.3MM)

90521-KF9-900

$1.85

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.69

NUT, HEX. (6MM)

94002-06020-0S

$1.49

CIRCLIP (OUTER) (15MM)

94511-15000

$1.49

BOLT, FLANGE (10X45)

95701-10045-08

$2.59

PEDAL, RR. BRAKE (COO)

46501-MJF-305

$115.03
