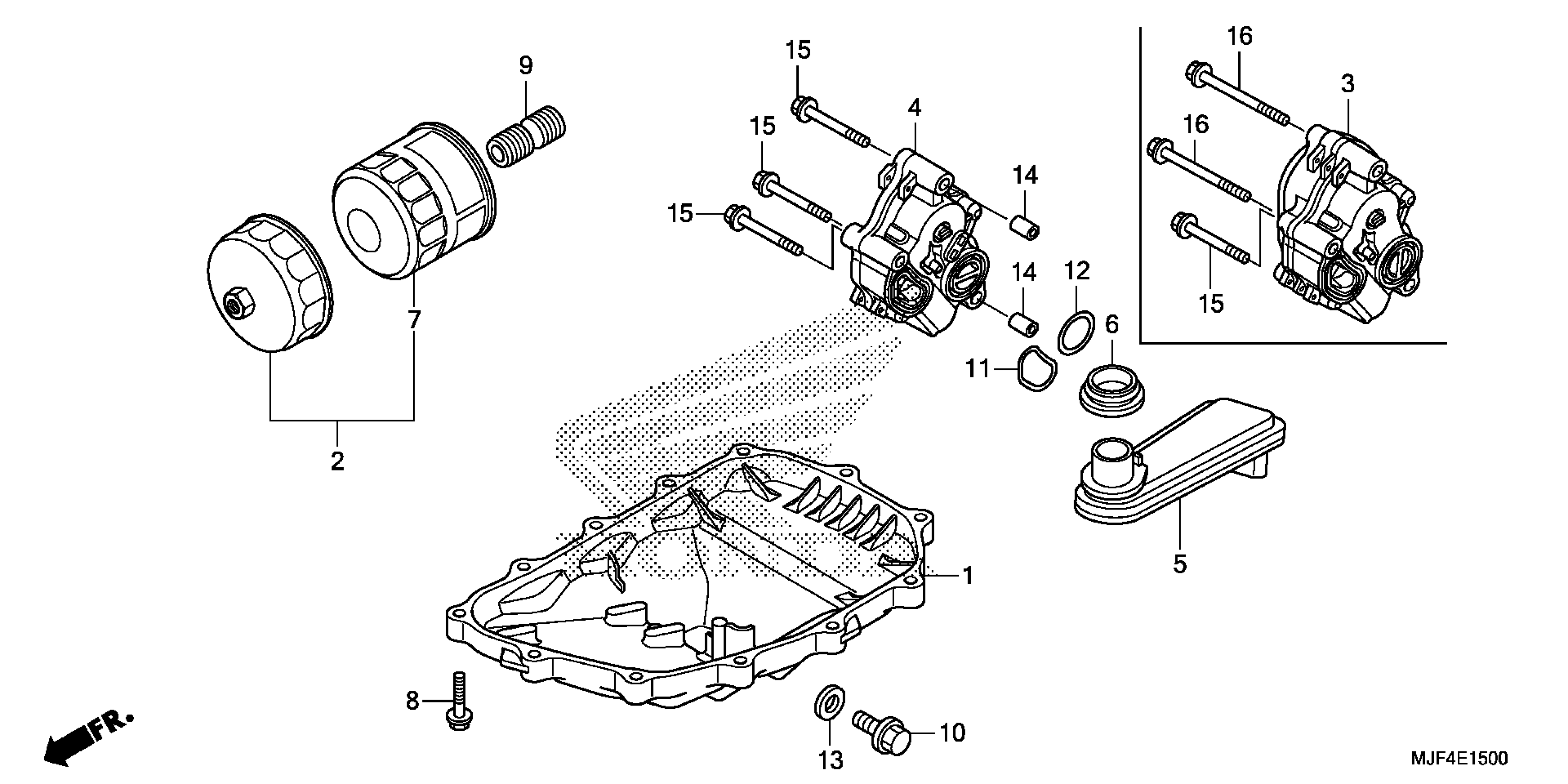

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 OIL PAN + OIL PUMP Diagram

PAN, OIL | Use up to Engine SN 5006452

11210-MGS-D10

$311.21

PAN, OIL | Use from Engine SN 5006453

11210-MJL-D30

$231.63

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$18.15

PUMP ASSY., OIL

15100-MGS-D30

$143.84

STRAINER, OIL

15150-MGS-D30

$36.31

GASKET, OIL STRAINER

15154-MAT-000

$5.87

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$14.16

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$1.88

BOSS, OIL FILTER

90019-MB0-000

$7.93

BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000.

90131-896-650

$2.03

BOLT, DRAIN PLUG (12X15)

90131-896-650

$2.03

O-RING (32X1.7)

91301-MEE-003

$1.75

O-RING (24.5X1.9)

91307-PY4-003

$2.80

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.13

PIN, DOWEL (8X14)

94301-08140

$2.62

BOLT, FLANGE (6X55)

95701-06055-00

$2.59
