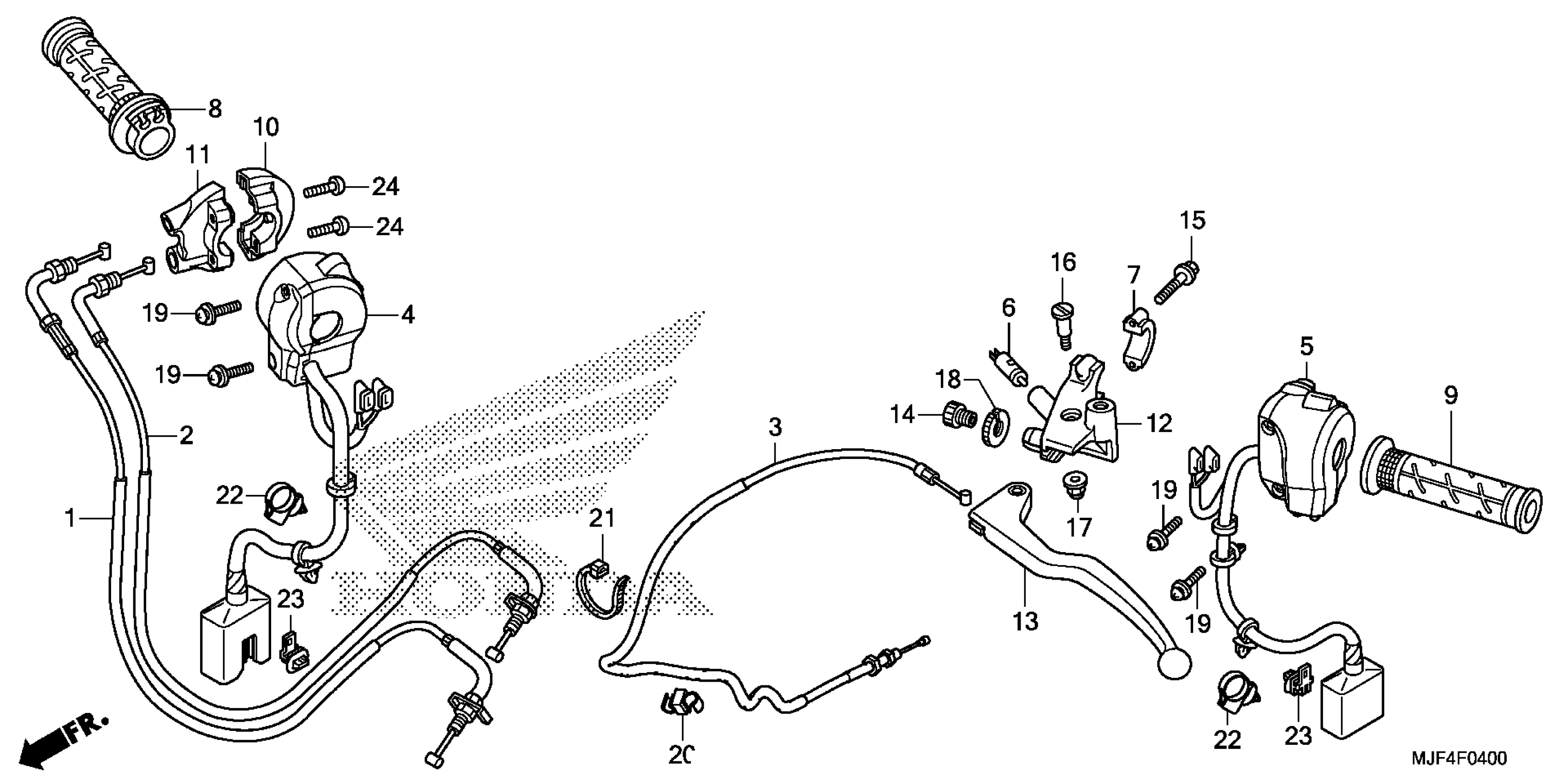

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 HANDLE LEVER + SWITCH + CABLE (1) Diagram

CABLE A, THROTTLE

17910-MJF-A01

$33.75

CABLE B, THROTTLE

17920-MJF-A01

$33.75

CABLE, CLUTCH

22870-MJF-A00

$33.15

SWITCH ASSY., ENGINE STOP

35130-MJF-A03

$151.44

SWITCH ASSY., TURN SIGNAL

35200-MJF-A03

$184.93

SWITCH, FR. LEVER (TOYO DENSO)

35330-413-003

$21.91

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

GRIP, THROTTLE This part replaces 53140-MGS-305.

53140-MGS-D30

$28.33

GRIP, L. HANDLE This part replaces 53150-MGS-305.

53150-MGS-D30

$12.11

HOUSING, THROTTLE (UPPER) (RR.)

53167-MGS-D30

$16.86

HOUSING, THROTTLE (LOWER) (FR.)

53168-MGS-D30

$17.98

BRACKET, HANDLE LEVER

53172-KT7-751

$28.46

LEVER, L. HANDLE This part replaces 53178-MAV-305.

53178-MAV-750

$18.40

BOLT, CLUTCH WIRE ADJUSTING

53192-349-690

$7.04

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

BOLT, L. HANDLEBAR LEVER PIVOT

90113-438-000

$7.58

NUT, CAP (6MM)

90201-415-000

$2.05

NUT, FIXING

90321-KT7-760

$10.45

SCREW-WASHER (5X16)

90508-MGS-D30

$1.87

CLIP, JOINT

90601-MEJ-000

$3.66

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLAMP, HARNESS

90652-HC4-003

$5.95

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.49

SCREW, PAN (5X22)

93500-05022-0G

$1.49
