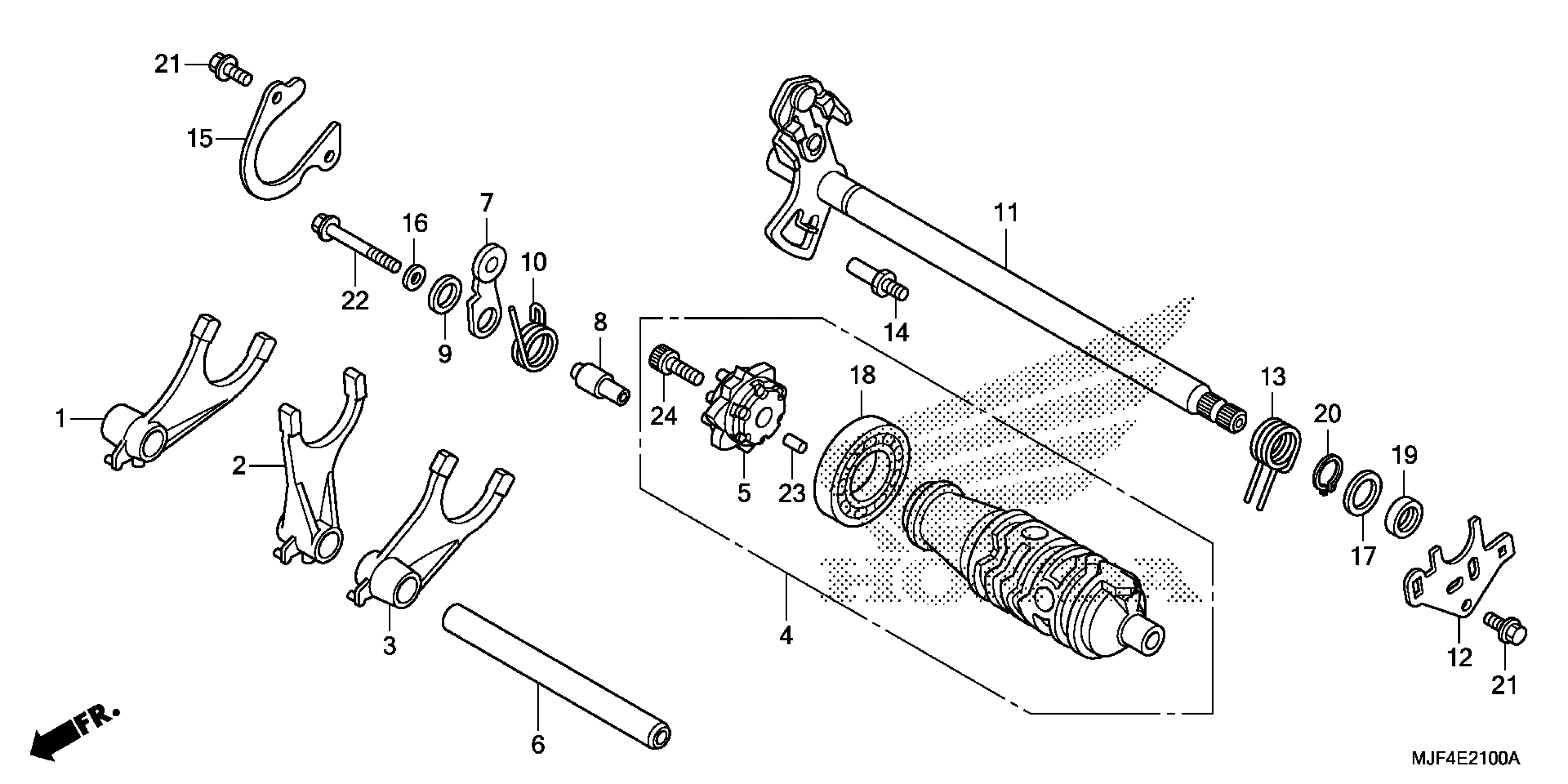

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 GEARSHIFT DRUM (1) Diagram

#

Description
Price

1

FORK, R. GEARSHIFT

24211-MGS-D30

$99.89

2

FORK, CENTER GEARSHIFT

24212-MGS-D30

$99.89

3

FORK, L. GEARSHIFT

24213-MGS-D30

$99.87

4

DRUM ASSY., GEARSHIFT

24310-MGS-D30

$245.80

5

CENTER, SHIFT DRUM

24315-MAS-E00

$36.44

6

SHAFT, GEARSHIFT FORK

24321-MAS-000

$22.34

7

STOPPER, GEARSHIFT DRUM

24430-MGS-D30

$23.41

8

COLLAR, SHIFT DRUM STOPPER PLATE

24434-MGS-D30

$7.92

9

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.59

10

SPRING, SHIFT DRUM STOPPER

24435-MGS-D30

$5.44

11

SPINDLE, GEARSHIFT

24610-MGS-D30

$175.59

12

PLATE, SPINDLE

24612-MGS-D30

$2.92

13

SPRING, GEARSHIFT RETURN

24651-MGS-D30

$7.55

14

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

15

PLATE, SHIFT DRUM BEARING SETTING

24655-MGS-D30

$4.25

16

WASHER, DRUM STOPPER

90417-360-000

$1.74

17

WASHER, THRUST (16MM)

90453-235-000

$1.83

18

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$17.30

18

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

91007-MGS-D21

$17.30

19

OIL SEAL (16X24X5)

91201-MGS-D31

$10.16

20

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

21

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

22

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

23

ROLLER (4X8)

96220-40080

$1.49

24

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
