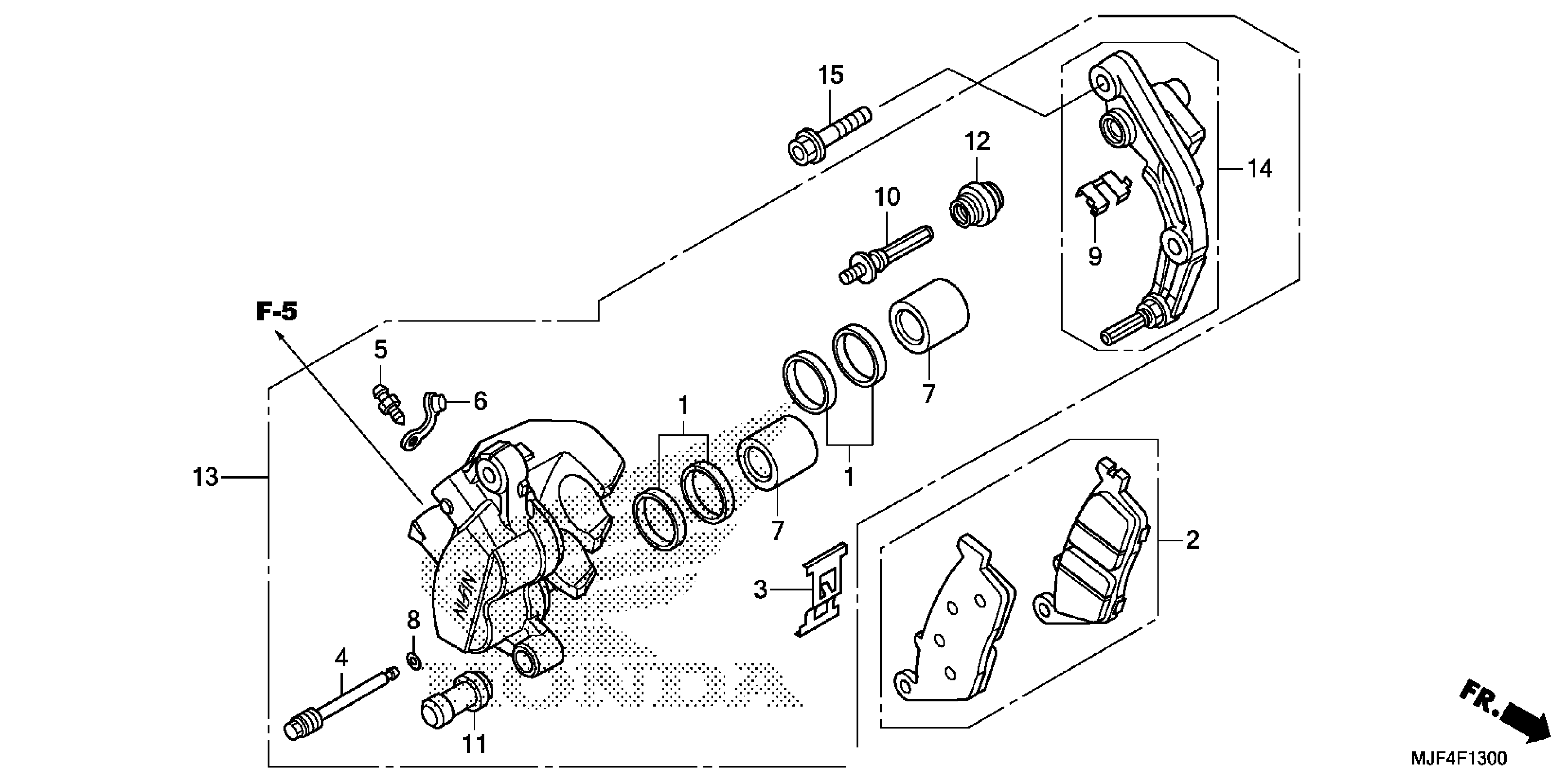

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 FRONT BRAKE CALIPER (1) Diagram

#

Description
Price

1

SEAL SET, PISTON

06431-MA3-405

$7.33

2

PAD SET, FR. This part replaces 06455-MGS-D31.

06455-MGS-D32

$51.67

3

SPRING, PAD

43108-MCT-006

$4.92

4

PIN, HANGER

43215-KZ4-J41

$5.25

5

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

6

CAP, BLEEDER

43353-461-771

$5.05

7

PISTON

45107-ML4-006

$37.87

8

RING, STOPPER

45111-MAJ-G41

$3.80

9

RETAINER

45112-ML7-921

$5.46

10

BOLT A, PIN

45131-ML7-921

$15.44

11

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

12

BOOT B

45133-MA3-006

$5.46

13

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-MGZ-J01

$202.54

14

BRACKET SUB-ASSY., R. FR.

45290-MGS-D31

$123.92

15

BOLT, FLANGE (8X32) (SAGA)

90131-KBV-003

$4.75
