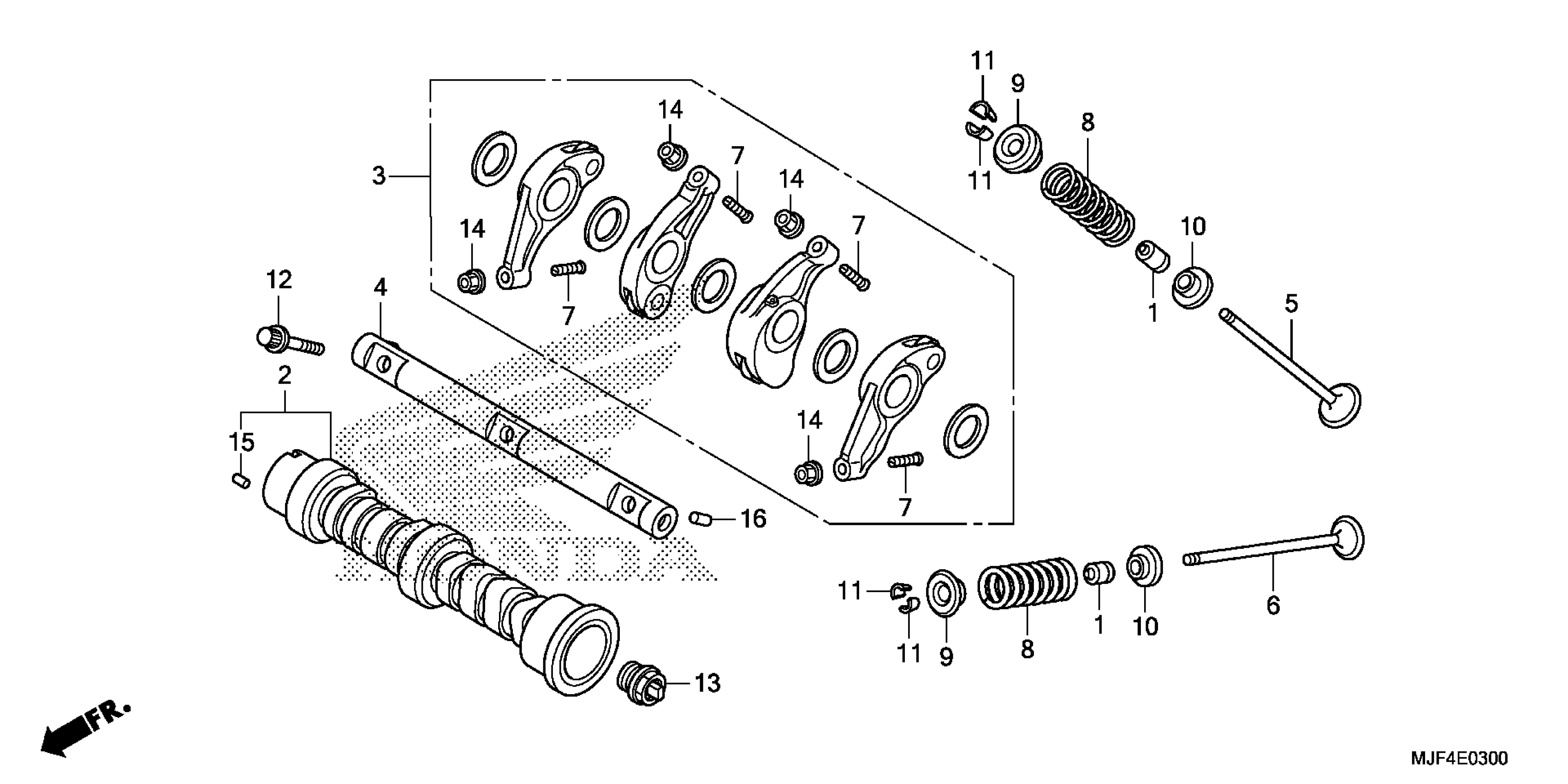

Honda CTX700NA (15) CTX700N, JPN, VIN# JH2RC680-FK100001 CAMSHAFT + VALVE Diagram

SEAL, VALVE STEM (ARAI)

12209-MA6-003

$9.28

CAMSHAFT

14110-MGS-D30

$204.18

ARM ASSY., ROCKER

14620-MGS-D30

$408.64

SHAFT, ROCKER

14630-MGS-D30

$81.54

VALVE, IN.

14711-MGS-D30

$52.56

VALVE, EX.

14721-MGS-D30

$92.74

SCREW, TAPPET ADJUSTING

14744-PM3-000

$7.70

SPRING, VALVE (NIPPON HATSUJO)

14751-MGS-D30

$11.74

RETAINER, VALVE SPRING

14771-KRM-840

$8.57

SEAT, VALVE SPRING

14775-MGS-D30

$7.00

COTTER, VALVE

14781-MA6-000

$2.92

BOLT, ROCKER ARM SHAFT

90006-PWC-003

$7.48

CAP, CAM SHAFT (20MM)

90048-MGS-D30

$27.84

NUT, TAPPET ADJUSTING (TOKAI TRW)

90206-PM3-004

$4.27

PIN, DOWEL (2.5X10)

90703-PWA-003

$3.61

PIN, DOWEL (5X8)

94303-05080

$2.14
