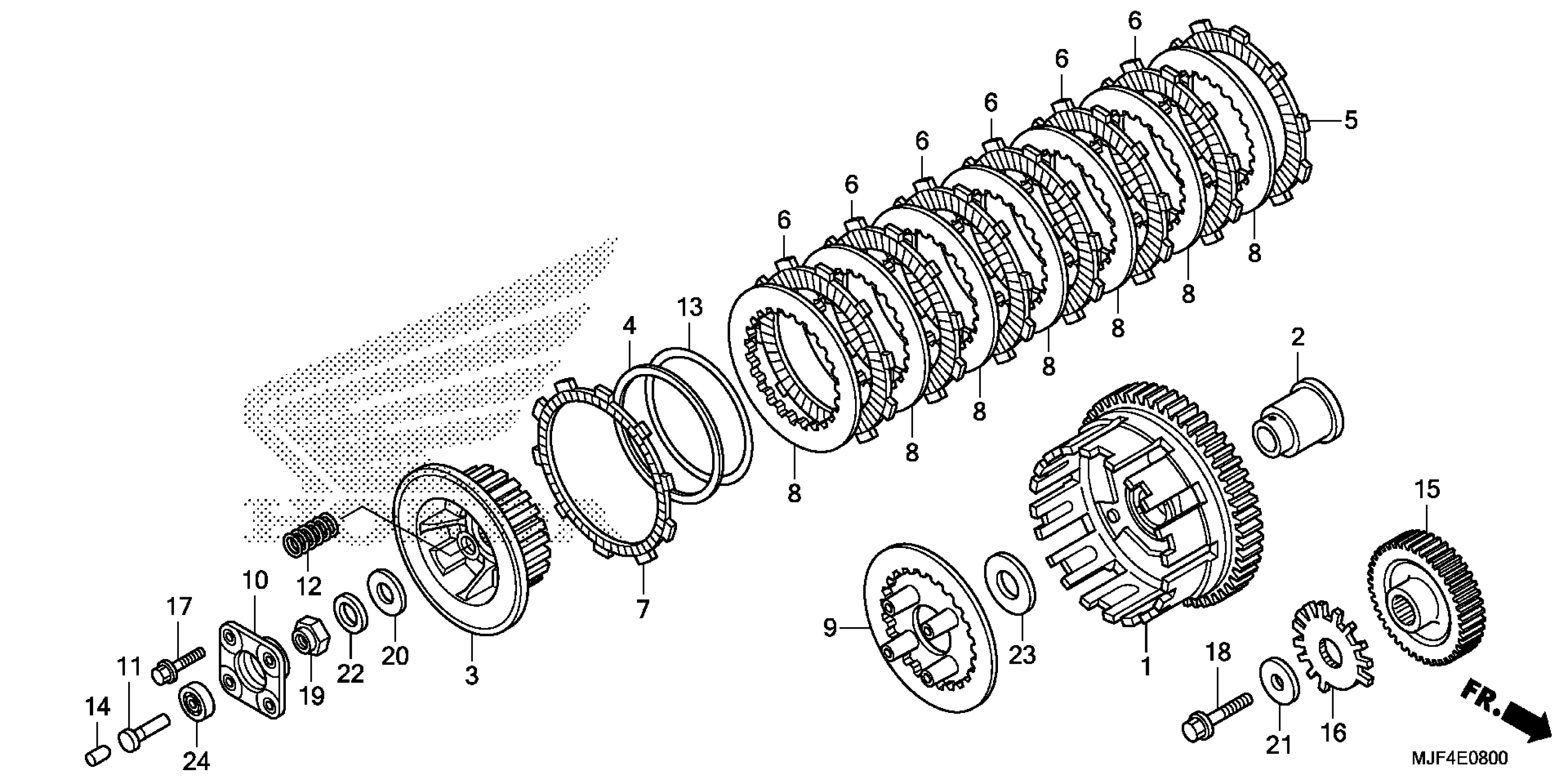

Honda CTX700NA (14) CTX700N, JPN, VIN# JH2RC680-EK000001 TO JH2RC680-EK099999 CLUTCH (1) Diagram

#

Description
Price

1

CLUTCH OUTER (71T)

22100-MGS-D30

$404.44

2

GUIDE, CLUTCH (OUTER)

22116-MGS-D30

$37.77

3

CENTER, CLUTCH (24T)

22120-MBA-000

$87.83

4

SEAT, JUDDER SPRING

22125-435-000

$9.15

5

DISK, CLUTCH FRICTION

22201-MAV-000

$13.04

6

DISK, CLUTCH FRICTION

22201-MFF-D00

$14.88

7

DISK B, CLUTCH FRICTION

22202-MAE-000

$16.01

8

PLATE, CLUTCH

22321-MN8-000

$9.38

9

PLATE, CLUTCH PRESSURE | Use up to Engine SN 5000122 This part replaces 22350-MS6-921.

22350-MS6-922

$60.04

9

PLATE, CLUTCH PRESSURE

22350-MS6-922

$60.04

10

PLATE, CLUTCH LIFTER

22361-MR1-000

$21.17

11

ROD, CLUTCH CENTER

22366-MFF-D00

$11.84

12

SPRING, CLUTCH

22401-MM9-000

$3.81

13

SPRING, JUDDER

22402-435-000

$34.37

14

ROD, CLUTCH LIFTER

22847-MFF-D00

$6.58

15

GEAR, PRIMARY DRIVE (41T)

23103-MGS-D30

$147.00

16

ROTOR, PULSE

30291-MGS-D30

$8.02

17

BOLT, FLANGE (6X35) | Use from Engine SN 5000086

90007-MJH-Y01

$3.03

17

BOLT, SPECIAL FLANGE (6X30) | Use up to Engine SN 5000085

90007-MR1-000

$2.92

18

BOLT, FLANGE (10MM)

90023-MBW-000

$9.79

19

NUT, LOCK (18MM)

90236-HA0-000

$10.45

20

WASHER (18MM)

90401-MZ8-B40

$2.52

21

WASHER (10.5X36X4)

90414-MGE-D00

$3.51

22

WASHER, LOCK

90432-428-000

$7.57

23

WASHER, THRUST (22MM)

90452-471-000

$4.76

24

BEARING, RADIAL BALL (6001)

96100-60010-00

$17.13
