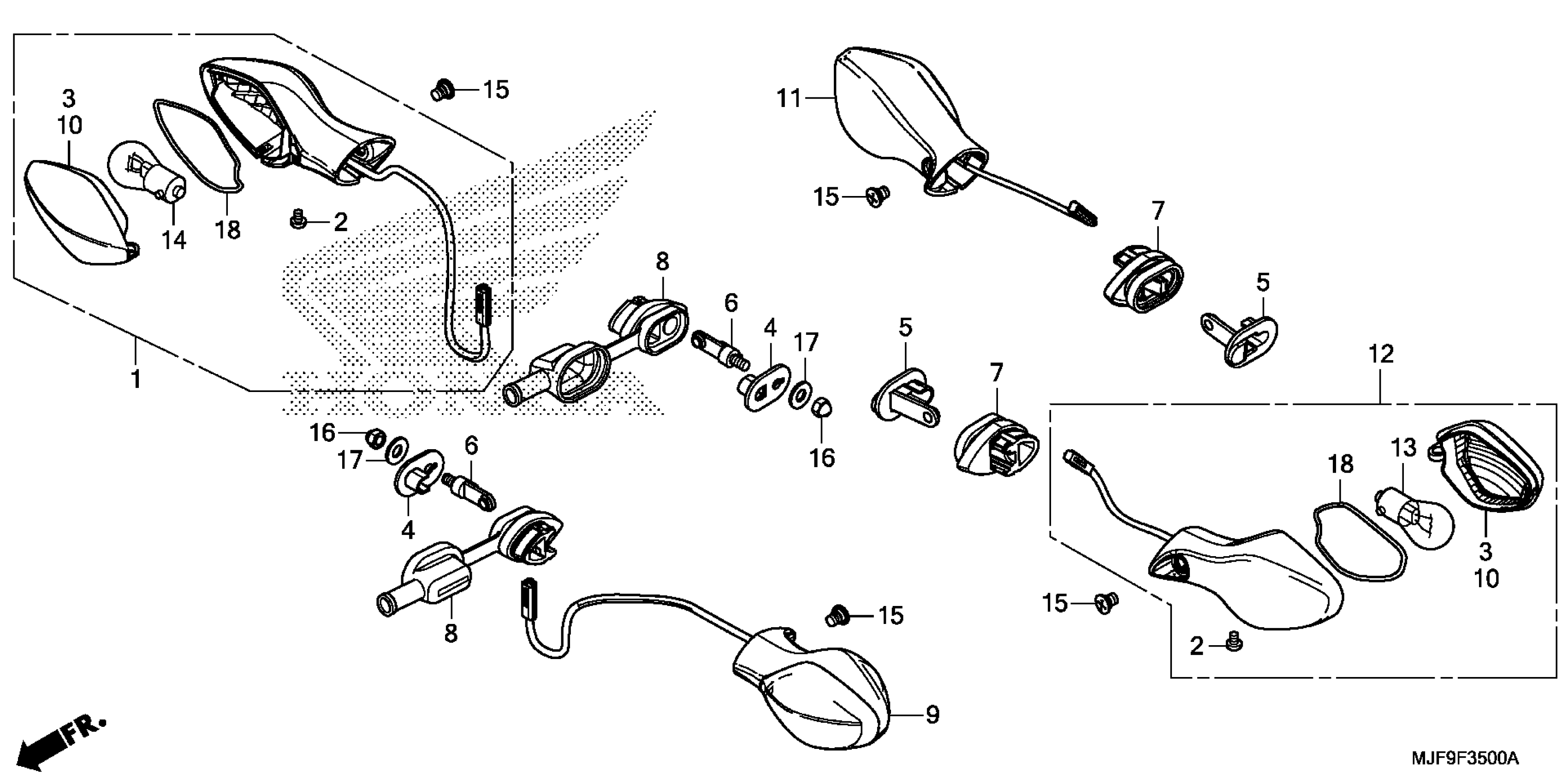

Honda CTX700DA (18) MOTORCYCLE, JPN, VIN# JH2RC694-JK400001 TURN SIGNAL Diagram

#

Description
Price

1

TURN SIGNAL ASSY., R. FR. (P21/5W) | Use up to Frame SN JK400358.

33400-MJF-A32

$96.57

1

TURN SIGNAL ASSY., R. FR. (P21/5W) | Use from Frame SN JK400359.

33400-MJF-A33

$96.57

2

SCREW, SPECIAL (4X10)

33402-MGS-D31

$1.49

3

LENS, R. TURN SIGNAL (R. FR./L. RR.)

33404-MGS-J32

$2.95

4

PLATE, TURN SIGNAL (FR.)

33411-MGZ-J00

$1.49

5

STAY, TURN SIGNAL (RR.)

33412-MGS-D30

$7.70

6

STAY, TURN SIGNAL (FR.)

33412-MGZ-J00

$17.82

7

RUBBER, TURN SIGNAL MOUNTING (RR.)

33413-MGS-D30

$5.98

8

RUBBER, TURN SIGNAL MOUNTING (FR.)

33413-MGZ-J00

$8.80

9

TURN SIGNAL ASSY., L. FR. (P21/5W) | Use up to Frame SN JK400358.

33450-MJF-A32

$92.87

9

TURN SIGNAL ASSY., L. FR. (P21/5W) | Use from Frame SN JK400359.

33450-MJF-A33

$92.87

10

LENS, L. TURN SIGNAL (L. FR./R. RR.)

33454-MGS-J32

$2.95

11

TURN SIGNAL ASSY., R. RR. (12V 21W) | Use up to Frame SN JK400358. This part replaces 33600-MJF-A02.

33600-MJF-A03

$98.46

11

TURN SIGNAL ASSY., R. RR. (12V 21W) | Use from Frame SN JK400359.

33600-MJF-A03

$98.46

12

TURN SIGNAL ASSY., L. RR. (12V 21W) | Use up to Frame SN JK400358.

33650-MJF-A02

$92.84

12

TURN SIGNAL ASSY., L. RR. (12V 21W) | Use from Frame SN JK400359.

33650-MJF-A03

$92.84

13

BULB, TURN SIGNAL LIGHT (P21W) (RR.) (FOR RR.)

34904-MGZ-J01

$17.82

14

BULB, TAILLIGHT (P21/5W) (LIFE ELEX) (FR. WINKER)

34906-MGZ-J01

$6.71

15

SCREW, SPECIAL (6X8)

90380-MGS-D30

$3.51

16

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

16

NUT, CAP (6MM)

94021-06020

$1.73

16

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

16

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

17

WASHER, PLAIN (6MM)

94101-06700

$1.49

18

SEAL, GASKET

33405-MKA-D81

$1.49
