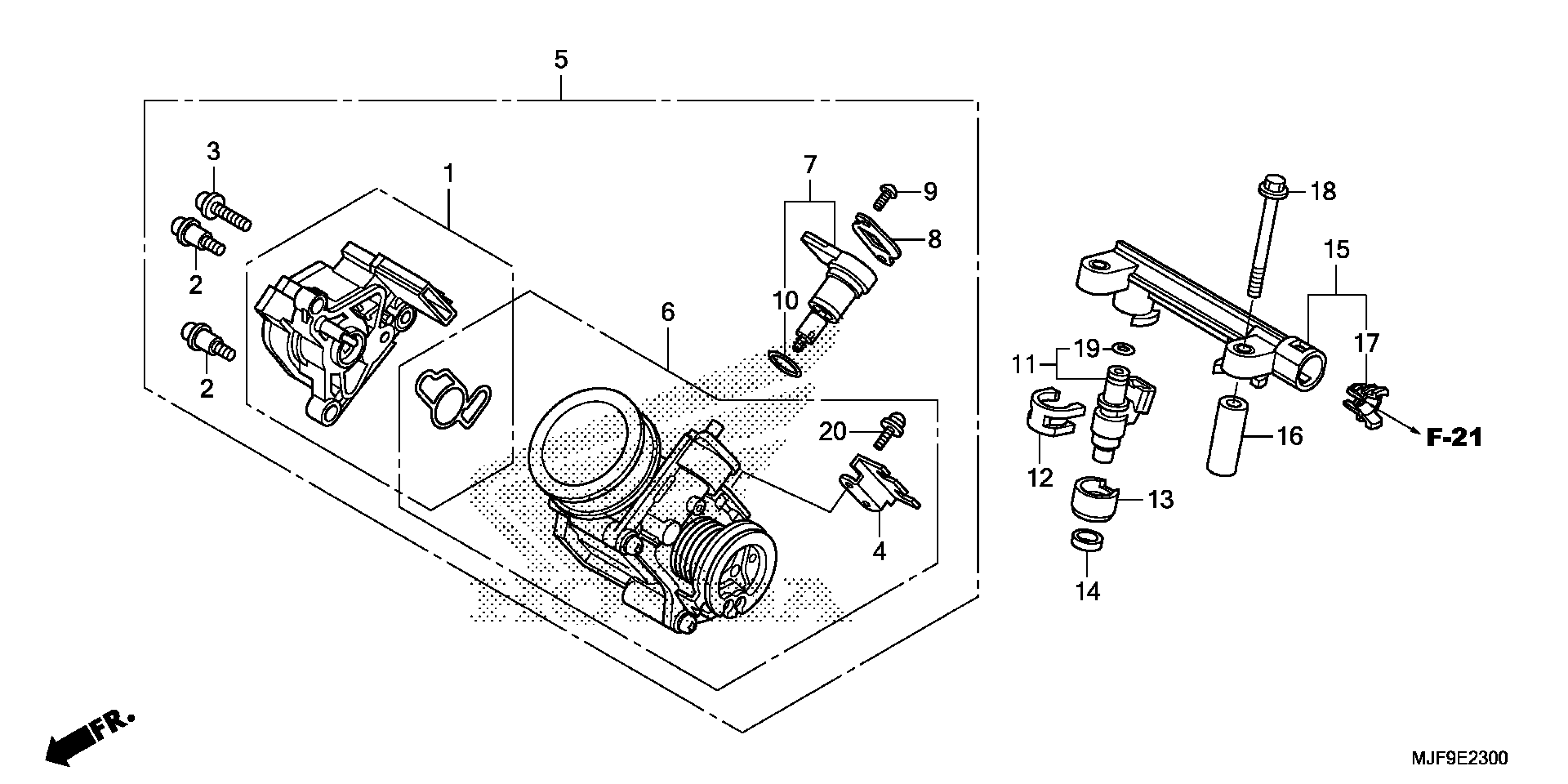

Honda CTX700DA (18) MOTORCYCLE, JPN, VIN# JH2RC694-JK400001 THROTTLE BODY Diagram

SENSOR SET

16060-MFR-671

$179.38

SCREW, TORX (5X8.7)

16081-KYJ-901

$2.82

SCREW, TORX (5X17)

16082-KYJ-901

$2.23

STAY, WIRE

16169-MGS-D31

$19.80

BODY ASSY., THROTTLE (GQ3UA A)

16400-MGS-D31

$582.80

BODY SET

16410-MGS-D31

$300.93

VALVE SET, IDLE AIR CONTROL

16430-MGS-D31

$162.62

PLATE, IDLE AIR CONTROL VALVE

16432-MFE-641

$7.28

SCREW, TORX

16433-HN8-A61

$1.49

O-RING (17.8X1.9)

16435-HN8-A61

$9.12

INJECTOR ASSY., FUEL

16450-MFA-D02

$145.49

CLIP, INJECTOR

16451-MFL-000

$2.97

COVER, INJECTOR

16459-MGS-D30

$2.79

SEAL RING, INJECTOR

16472-MGS-D30

$3.18

PIPE, FUEL

16640-MGS-D31

$61.08

COLLAR, FUEL PIPE

16647-MGS-D30

$3.92

RETAINER

17711-MGE-003

$6.34

BOLT, FLANGE (6X55)

90005-MGS-D30

$2.72

O-RING (7.8X1.9)

91301-P7A-004

$3.35

SCREW-WASHER (5X12) (Honda Code 0368621)

93892-05012-08

$1.49

SCREW-WASHER (5X12) This part replaces 93892-05012-18.

93892-05012-08

$1.49
