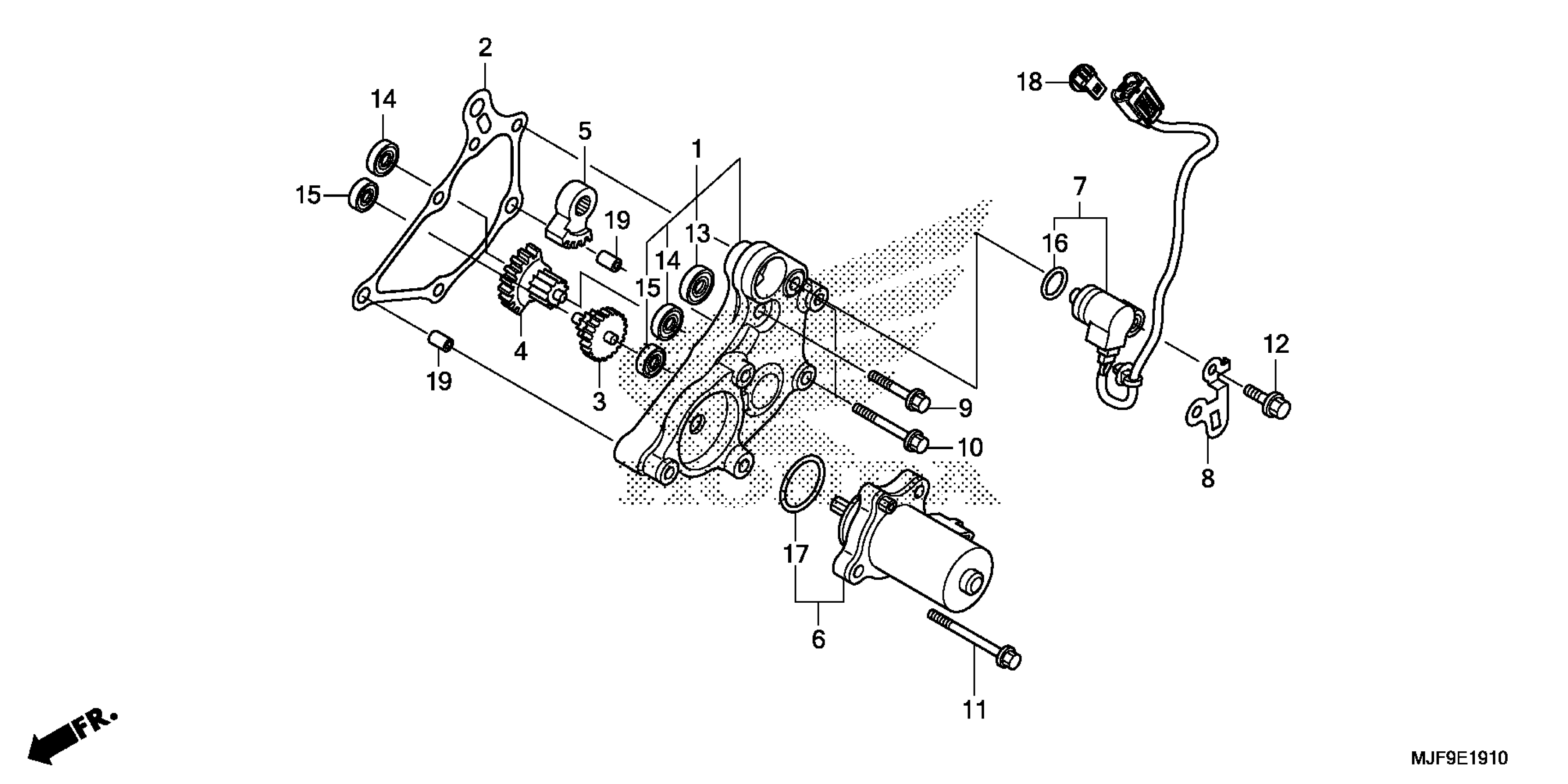

Honda CTX700DA (18) MOTORCYCLE, JPN, VIN# JH2RC694-JK400001 REDUCTION GEAR Diagram

COVER, REDUCTION GEAR

11520-MGS-D20

$107.00

GASKET This part replaces 11523-MGS-D20.

11523-MGS-D21

$11.80

GEAR, SHIFT REDUCTION (45T/7T)

24615-MGE-D01

$67.39

GEAR, SHIFT REDUCTION (32T/13T)

24616-MGS-D21

$66.48

GEAR, SHIFT REDUCTION (42T)

24617-MGE-D01

$54.69

MOTOR, RATIO CONTROL This part replaces 31300-MJF-A21.

31300-MJF-A22

$276.44

SENSOR ASSY., ANGLE

38800-MGS-D21

$240.23

STAY, ANGLE SENSOR WIRE

38815-MGS-D20

$2.82

BOLT, FLANGE (6X28)

90001-MGS-D20

$1.95

BOLT, FLANGE (6X40)

90002-MGS-D20

$2.90

BOLT, FLANGE (6X60)

90003-MGS-D20

$2.64

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

BEARING, RADIAL BALL (699ZZ)

91025-MGS-D21

$10.98

BEARING, RADIAL BALL (607ZZ)

91026-MGS-D21

$9.77

BEARING, RADIAL BALL (696ZZ)

91027-MGS-D21

$8.69

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

O-RING, CONTROL MOTOR

91351-HM8-A51

$3.81

CLIP, CONNECTOR (BLACK) (Honda Code 7386865)

91565-SEL-003

$3.67

PIN A, DOWEL (8X10)

94301-08100

$2.25
