Description

Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$51.58

2

SPROCKET, FINAL DRIVEN (39T)

41201-MGS-D70

$70.75

3

AXLE, RR. WHEEL

42301-MGS-D31

$43.30

4

COLLAR, L. RR. WHEEL SIDE

42311-MGS-D10

$19.32

5

COLLAR, RR. BRAKE SIDE

42312-MGS-D10

$14.03

6

RING, RR. PULSER

42515-MGS-D80

$57.36

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGS-D30

$236.64

8

COLLAR, RR. AXLE DISTANCE

42620-MGS-D10

$23.17

9

COLLAR B, RR. WHEEL DISTANCE

42625-MGS-D30

$17.49

10

WHEEL SUB-ASSY., RR. (COO) This part replaces 42650-MGS-D61.

42650-MGS-316

$795.20

11

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.01

11

WEIGHT, BALANCE (20G)

42705-MER-D00

$15.86

11

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.62

12

TIRE, RR. (160/60ZR17 M/C 69W) (BS)

42711-MGS-D35

$241.78

12

TIRE, RR. (160/60ZR17 M/C 69W) (METZELER)

42711-MJW-J03

$238.70

13

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$6.62

13

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$11.44

14

DISK, RR. BRAKE (SUNSTAR)

43251-MGS-D31

$309.72

15

BOLT 2, STUD (12X25)

90102-MAS-000

$3.73

16

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$5.78

16

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$5.78

17

NUT, U (18MM)

90301-MJF-A01

$9.47

18

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

19

WASHER (20X31.5X2)

90401-MAS-000

$2.98

20

WASHER, RR. SWINGARM

90559-MER-R60

$3.90

21

BEARING, ANGULAR BALL (22X50X15)

91051-MGS-D31

$34.20

22

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$11.60

23

DUST SEAL (30X50X7)

91251-MGS-D31

$11.54

24

DUST SEAL (30X47X7.5)

91253-MAE-003

$14.33

25

O-RING (55X2)

91351-MGS-D30

$2.80

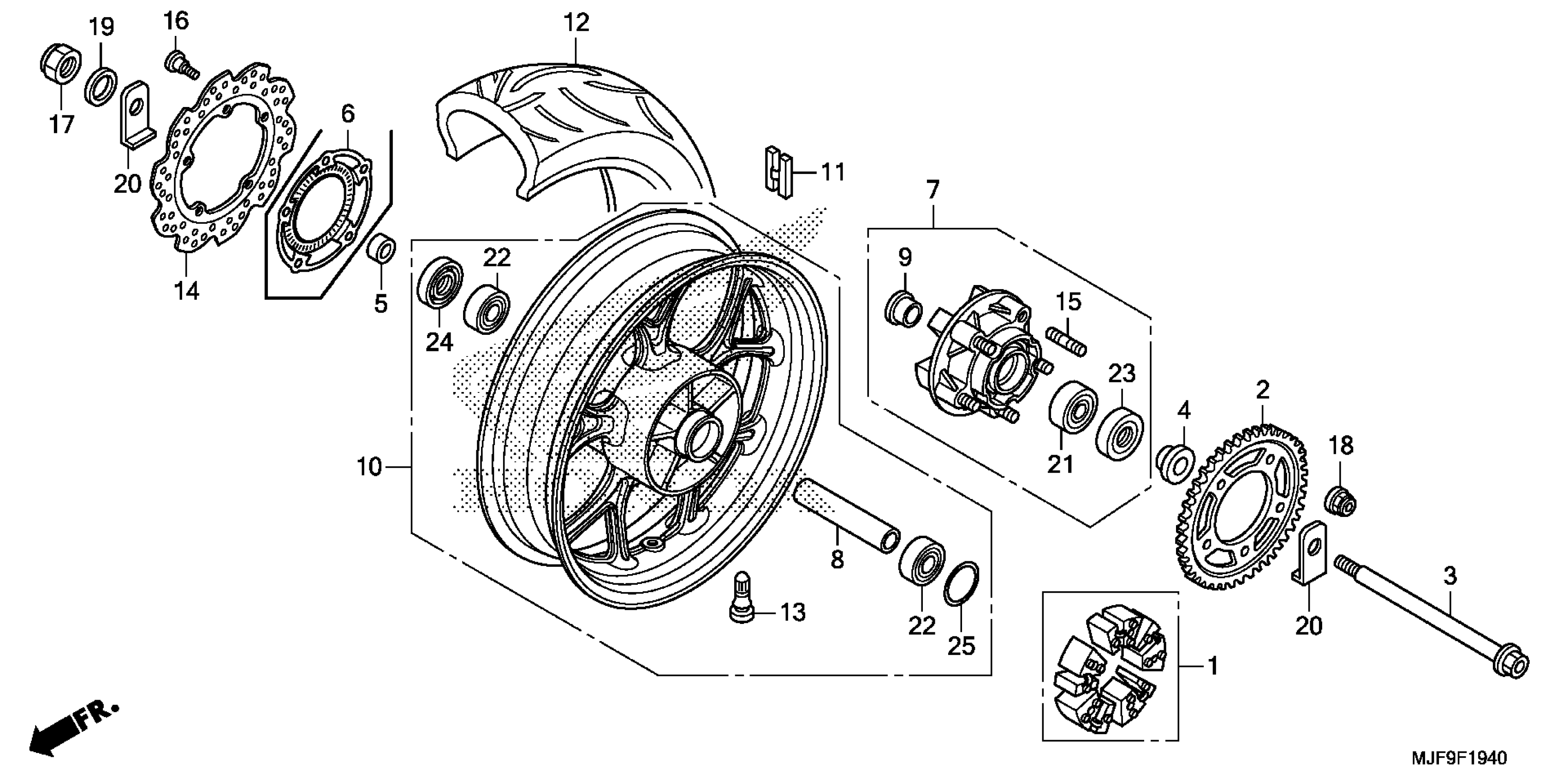

Honda CTX700DA (18) MOTORCYCLE, JPN, VIN# JH2RC694-JK400001 REAR WHEEL Diagram
