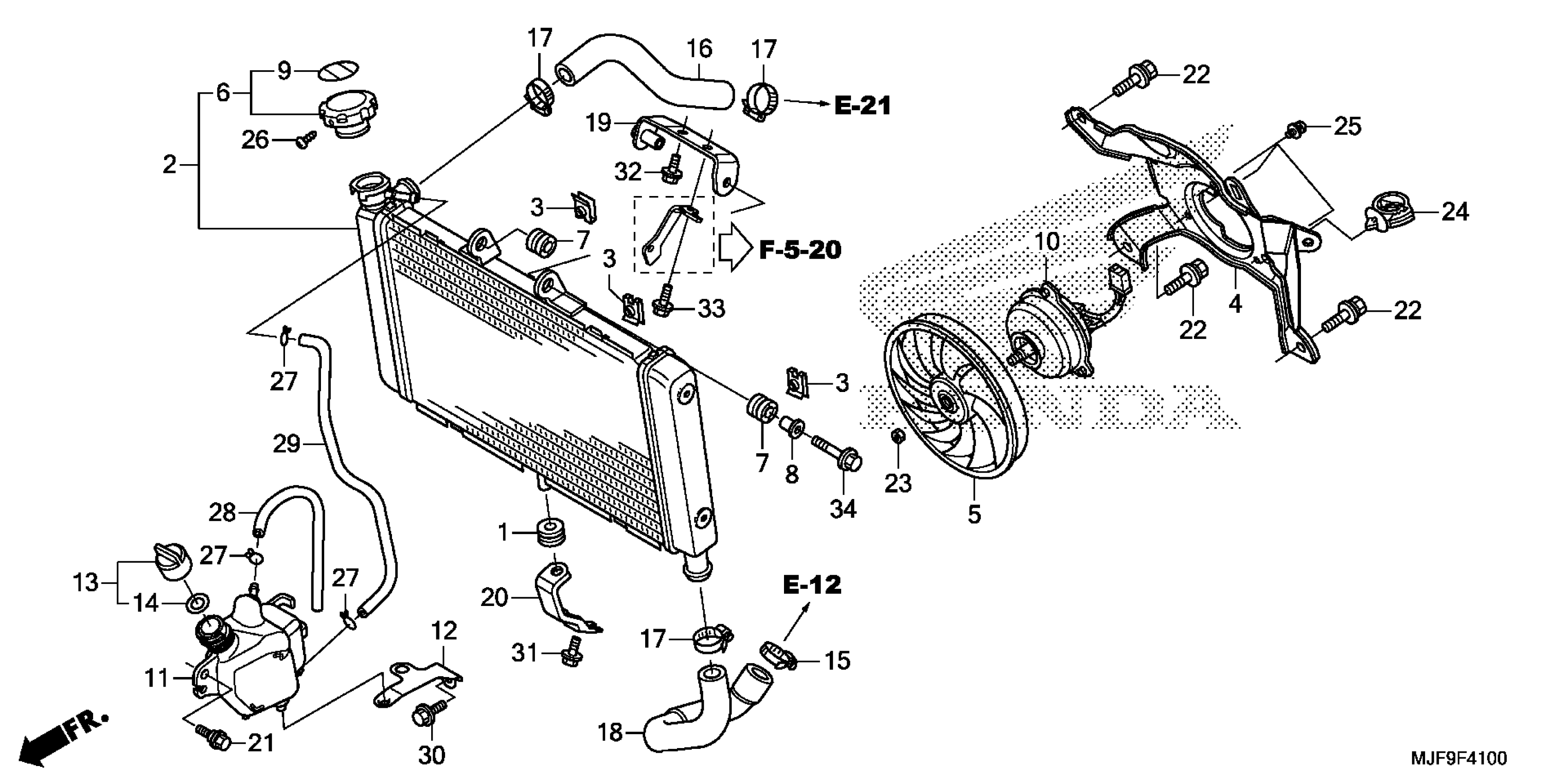

Honda CTX700DA (18) MOTORCYCLE, JPN, VIN# JH2RC694-JK400001 RADIATOR Diagram

#

Description
Price

1

RUBBER, CUSHION

17622-GB7-900

$4.58

2

RADIATOR (COO) This part replaces 19010-MJF-A01.

19010-MJF-305

$822.65

3

NUT, SETTING (6MM)

19014-KEA-003

$2.95

4

SHROUD

19016-MJF-A01

$75.78

5

FAN, COOLING (TOYO)

19020-MGS-D31

$36.42

6

CAP, RADIATOR

19045-MY3-621

$37.14

7

RUBBER, RADIATOR MOUNTING

19051-MGS-D30

$1.68

8

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

9

SEAL, RADIATOR CAP (ENGLISH/FRENCH/JAPANESE)

19055-MV9-881

$8.49

10

MOTOR ASSY., FAN

19080-MGS-D31

$199.51

11

TANK, RADIATOR RESERVE

19101-MGS-D30

$33.62

12

STAY, RESERVE TANK (LOWER)

19104-MGS-D70

$6.47

13

CAP ASSY., RESERVE TANK

19106-GET-000

$6.59

14

GASKET, RESERVE TANK

19107-GET-000

$3.58

15

CLAMP, WATER HOSE (35MM)

19504-MGP-000

$8.69

16

HOSE, RADIATOR (UPPER)

19505-MGS-D30

$14.22

17

CLAMP, WATER HOSE

19505-ML3-770

$6.75

18

HOSE, RADIATOR (LOWER)

19506-MGS-D30

$21.12

19

STAY, RADIATOR (UPPER)

19515-MGS-D30

$7.69

20

STAY, RADIATOR (LOWER) *NH303M* (MAT AXIS GRAY METALLIC)

19516-MGS-D30ZA

$9.24

21

BOLT, FLANGE (6MM)

90111-162-000

$2.66

22

BOLT-WASHER (6X12)

90120-GHB-601

$1.78

23

NUT, FLANGE (3MM)

90315-MFL-003

$2.15

24

CLIP, HARNESS

90683-MGC-920

$2.88

25

SCREW-WASHER (4X6)

93891-04006-07

$1.06

26

SCREW, TAPPING (3X8)

93901-22180

$0.90

27

CLIP, TUBE (B10)

95002-02100

$1.75

28

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

Unavailable

29

BULK HOSE, VACUUM (5.5X3000) (95005-55001-20M(95005-55001-2

95005-55003-20M

Unavailable

30

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$0.93

31

BOLT, FLANGE (6X14) (Honda Code 3707114)

95701-06014-02

$1.04

32

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

33

BOLT, FLANGE (6X18)

95701-06018-08

$1.63

34

BOLT, FLANGE (6X25) BOLT, FLANGE (6X16)

95701-06025-08

$1.79
