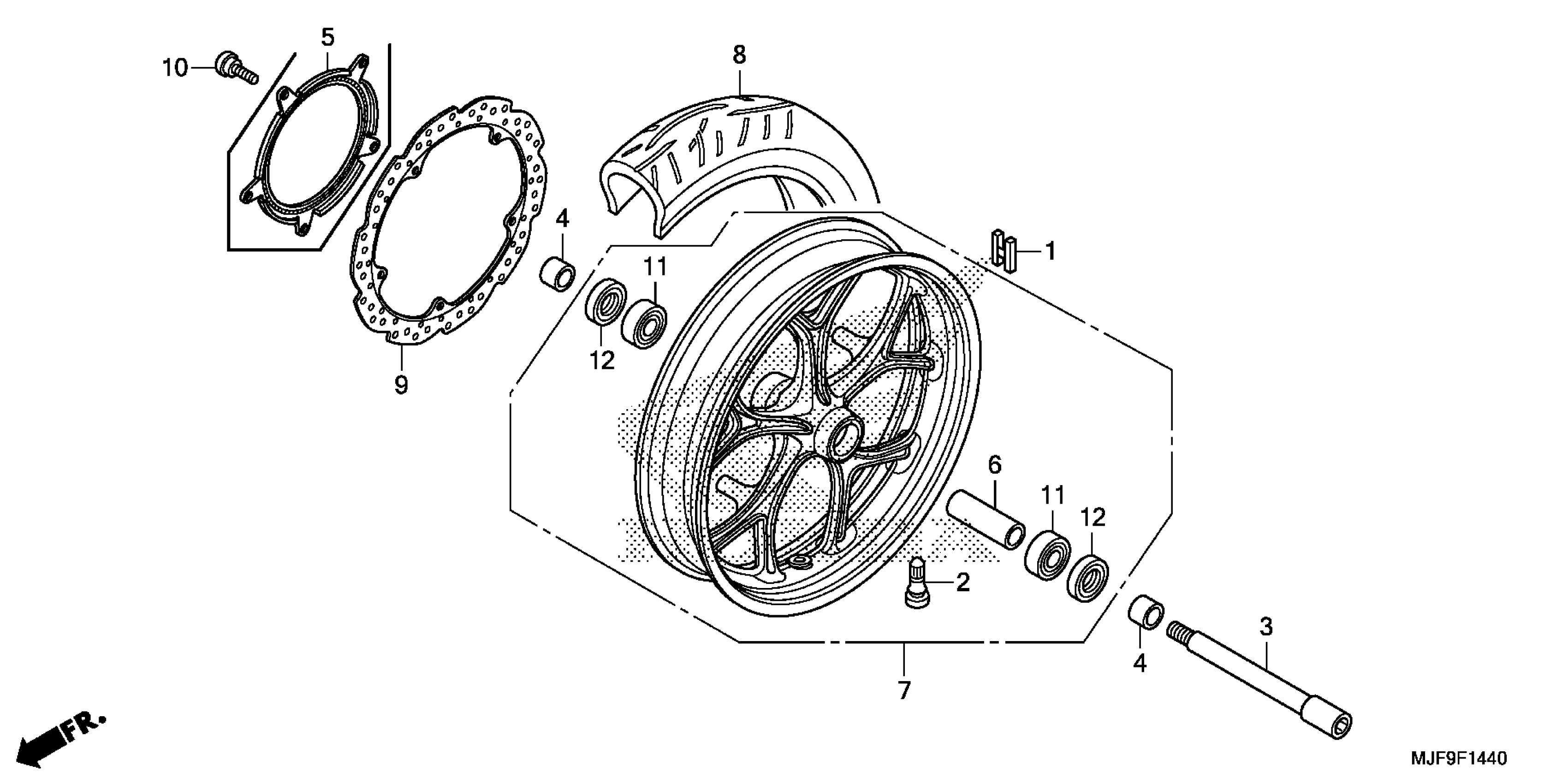

Honda CTX700DA (18) MOTORCYCLE, JPN, VIN# JH2RC694-JK400001 FRONT WHEEL Diagram

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.15

WEIGHT, BALANCE (20G)

42705-MER-D00

$16.09

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.85

VALVE, RIM (PIRELLI) (NOT AVAILABLE)

42753-MCF-008

$6.72

VALVE, RIM (BS) VALVE, RIM (MICHELIN)

42753-ML7-003

$11.69

AXLE, FR. WHEEL

44301-MGS-D30

$49.15

COLLAR, FR. WHEEL SIDE

44311-MGS-D10

$15.06

RING, FR. PULSER

44515-MGS-D81

$117.62

COLLAR, FR. AXLE DISTANCE

44620-MGS-D10

$14.79

WHEEL SUB-ASSY., FR.

44650-MGS-D11

$742.62

TIRE, FR This part replaces 44711-MGS-D35.

44711-MGS-D37

$156.50

TIRE, FR. (120/70ZR17) (M/C 58W) (METZELER)

44711-MGS-D36

Unavailable

DISK, FR. BRAKE (SUNSTAR)

45251-MGS-D81

$476.38

BOLT, DISK (8X25)

90105-MGS-D30

$2.80

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$11.86

OIL SEAL (28X47.2X7) (ARAI)

91252-MC4-013

$6.66
