Description

Price

1

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-MKA-S81.

51400-MJF-315

$716.96

2

SPRING, FR. FORK (SHOWA)

51401-MGS-D11

$89.87

3

COLLAR, SPRING (SHOWA) (R.)

51402-KV3-701

$23.53

4

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.58

5

PIPE, FR. FORK (SHOWA)

51410-MGS-D31

$351.81

6

RING, BACK-UP (SHOWA)

51412-MB4-003

$8.88

7

BUSH, GUIDE

51414-MFJ-A51

$6.93

8

BUSH, SLIDER

51415-MFJ-A51

$6.93

9

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$6.72

10

CASE, R. (LOWER) (SHOWA)

51420-MGS-D31

$355.96

11

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$22.78

12

RING, PISTON (SHOWA)

51437-MM5-003

$5.07

13

PIPE, SEAT

51440-MGS-D71

$45.44

14

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.31

15

BOLT, FR. FORK

51454-MM9-671

$35.21

16

SEAL SET, FR. FORK

51490-MKA-D81

$20.90

17

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-MKA-S81.

51500-MJF-315

$716.96

18

CASE, L. (LOWER) (SHOWA)

51520-MGS-D31

$355.96

19

BOLT, FLANGE (8X45)

90109-MR7-000

$4.71

20

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.71

21

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.65

22

DUST SEAL (SHOWA)

91251-MKA-D81

$7.88

23

O-RING (21.7X3.5) (SHOWA)

91356-KF0-003

$3.59

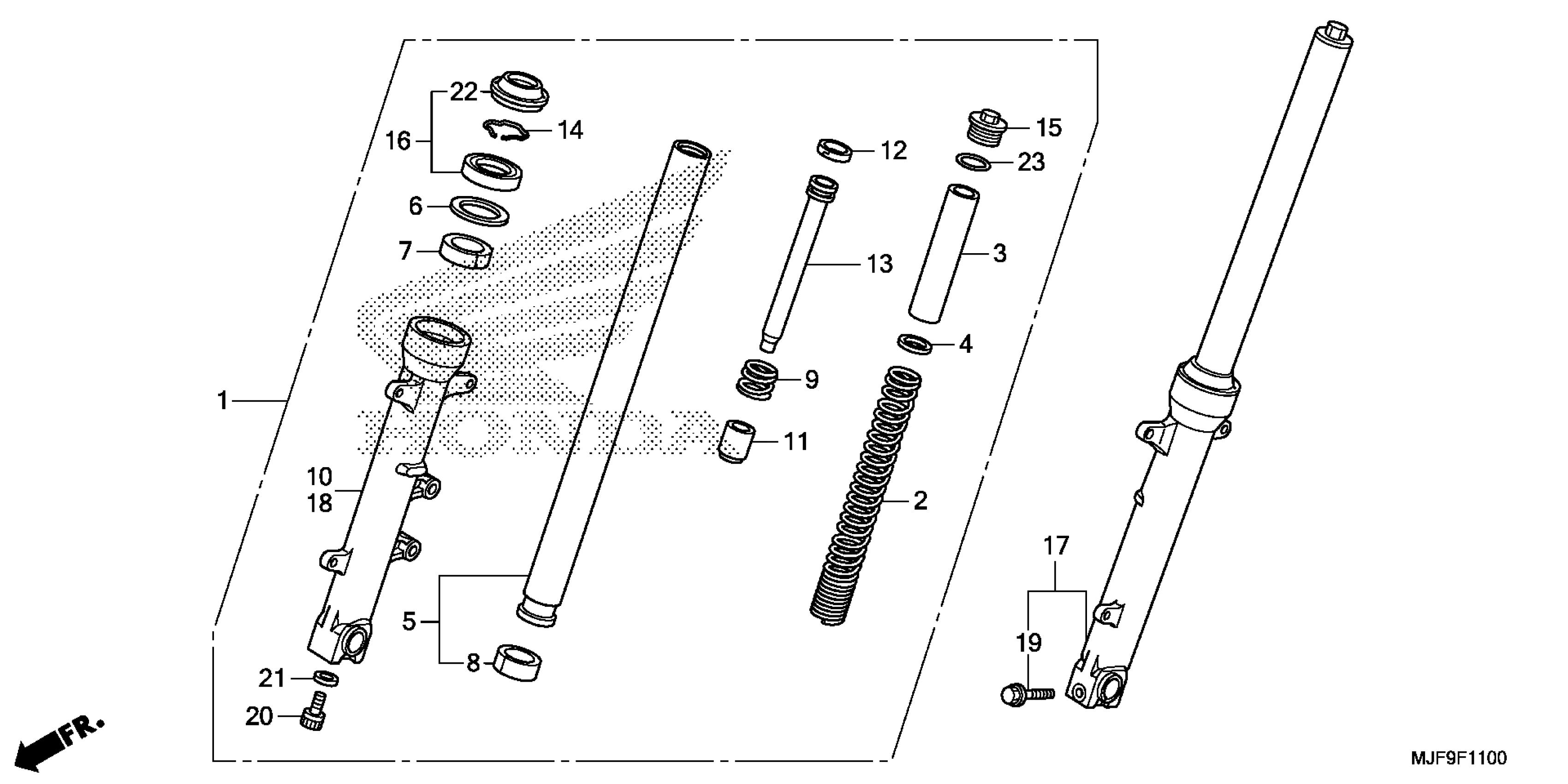

Honda CTX700DA (18) MOTORCYCLE, JPN, VIN# JH2RC694-JK400001 FRONT FORK Diagram
