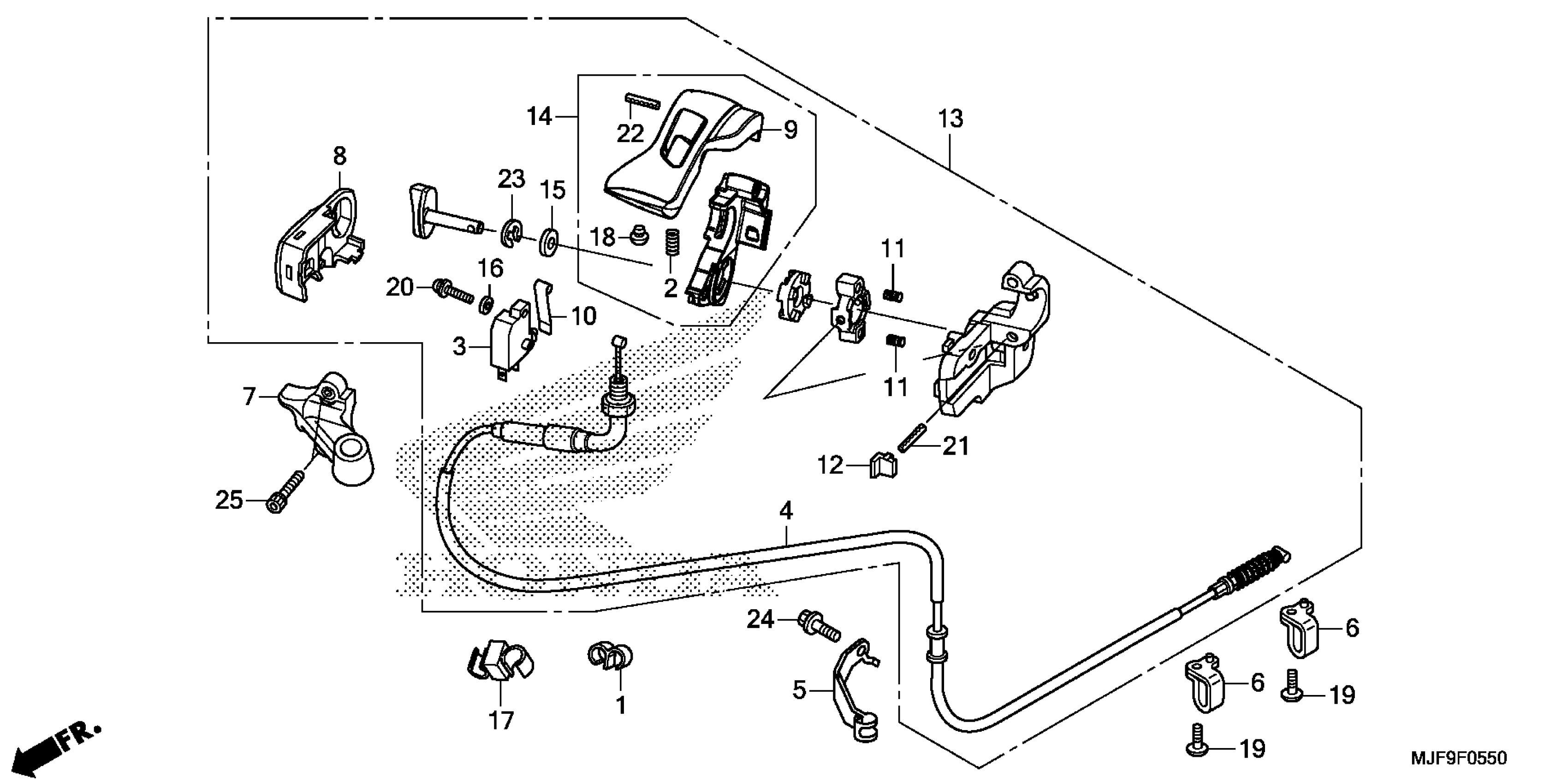

Honda CTX700DA (17) CTX700D, JPN, VIN# JH2RC694-HK300001 TO JH2RC694-HK399999 PARKING BRAKE LEVER Diagram

CLAMP, TUBE (7.5X2)

17205-PC6-000

$8.64

SPRING, BALL SETTING

24271-743-000

$2.39

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

CABLE, PARKING BRAKE

43450-MJF-A51

$54.08

CLAMP, PARKING BRAKE

43455-MGS-D50

$9.26

GUIDE, PARKING BRAKE

43456-MGS-D70

$6.84

HOLDER (UPPER)

47111-MGS-D50

$54.52

COVER, HOLDER

47117-MGS-D50

$3.82

LEVER, PARKING TOP

47152-MGS-D51

$11.10

SPRING, SWITCH

47154-MGE-D00

$8.49

SPRING, PLUNGER

47155-MGE-D00

$3.62

CAP, HOLDER (LOWER)

47156-MGE-D00

$2.31

LEVER ASSY., PARKING

47200-MJF-A51

$368.79

LEVER, PARKING

47210-MGS-D51

$44.72

WASHER (10.2MM)

90401-430-000

$1.64

WASHER, PLAIN (4X8)

90515-GN5-910

$1.49

WASHER, PLAIN (4X8) This part replaces 90515-046-810.

90515-GN5-910

$1.49

CLIP, JOINT

90601-MEJ-000

$3.66

PLUG, CHANGE REINFORCEMENT

90801-SB0-000

$3.61

SCREW, PAN (5X16) SCREW, PAN (4X20)

93500-05016-0G

$1.49

SCREW-WASHER (4X14)

93892-04014-07

$1.49

PIN, SPRING (3X22)

94305-30223

$1.49

PIN, SPRING (3X28) (NOT AVAILABLE)

94305-30283

$1.51

E-RING (9MM) (NOT AVAILABLE)

94540-09018

$3.85

BOLT, FLANGE (6X14)

96001-06014-00

$1.72

BOLT, SOCKET (6X20)

96600-06020-07

$1.49
