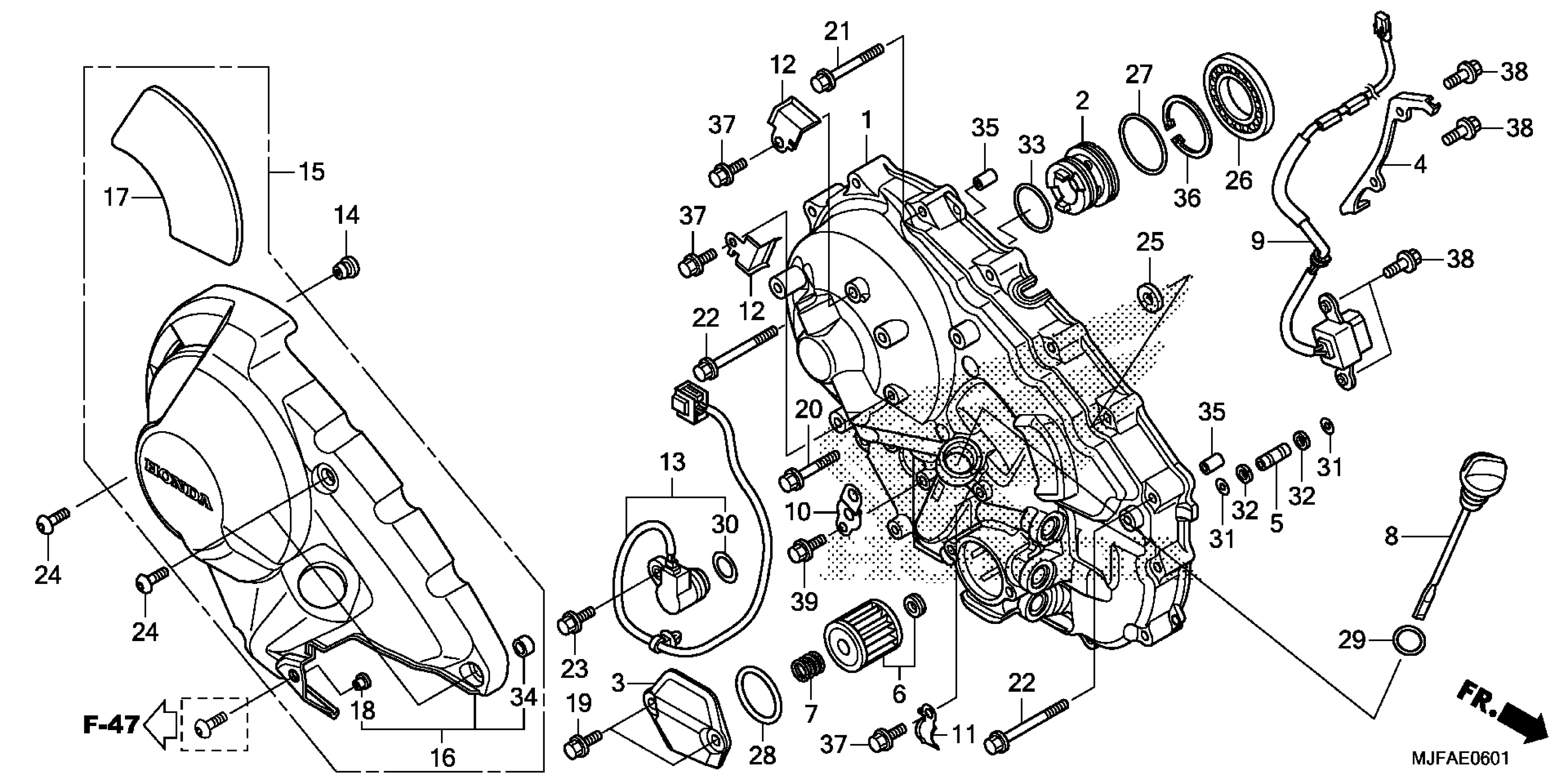

Honda CTX700DA (15) CTX700D, JPN, VIN# JH2RC694-FK100001 RIGHT CRANKCASE COVER (2) Diagram

#

Description
Price

1

COVER, R. CRANKCASE

11330-MGS-D40

$336.13

2

COLLAR, OIL GUIDE

11332-MGS-D20

$26.43

3

COVER, OIL FILTER

11337-MGS-D40

$56.84

4

CLAMP, SOLENOID CORD

11339-MGS-D20

$9.92

5

PIPE, OIL PASSAGE

15104-MGS-D20

$9.77

6

ELEMENT, OIL FILTER

15412-MGS-D21

$8.72

7

SPRING, OIL FILTER

15414-MEB-670

$2.62

8

DIPSTICK, OIL

15650-MGS-D20

$29.49

9

GENERATOR ASSY., PULSE

30300-MJF-A21

$119.87

10

STAY, HARNESS CLIP (B)

32171-MGS-D20

$2.70

11

STAY, HARNESS

32172-MGS-D70

$2.70

12

STAY, HARNESS

32173-MGS-D70

$2.70

13

SENSOR ASSY., ANGLE

38810-MGS-D51

$240.23

14

PLUG, HANDLE COVER (LOWER)

53125-174-670

$1.84

15

COVER ASSY., R. ENGINE SIDE *NH303M* (MAT AXIS GRAY METALLIC) | Ion blue metallic PB388M;

64500-MJF-A20ZA

$71.11

16

COVER, R. ENGINE SIDE *NH303M* (MAT AXIS GRAY METALLIC) | Ion blue metallic PB388M;

64520-MGS-D50ZA

$80.66

17

MAT, ENGINE SIDE COVER

64521-MJF-A20

$6.26

18

COLLAR, FENDER SETTING

80103-MCJ-750

$2.57

19

BOLT, FLANGE (6X16) (NSHF)

90006-GHB-630

$1.80

20

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

21

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

22

BOLT, FLANGE (6X50) (NSHF)

90006-GHB-730

$1.80

23

BOLT, KNOCK (6MM)

90011-MGE-D00

$2.89

24

BOLT, SPECIAL (6X17)

90085-MCZ-000

$2.13

25

WASHER, SEALING (6MM)

90488-425-000

$2.28

26

BEARING, RADIAL BALL (40X68X7.5)

91029-MGS-D21

$21.15

27

O-RING (35X2.2)

91302-MGS-D20

$2.31

28

O-RING (39.8X2.2) (ARAI)

91302-PA9-003

$4.21

29

O-RING (18X3)

91307-035-000

$2.92

30

O-RING (16.5X2.5)

91310-MGE-D01

$4.80

31

O-RING (7.7X1.9)

91311-RFH-003

$2.61

32

RING, BACK-UP (8X11)

91315-MGS-D20

$3.34

33

O-RING (29X2.4) (NOK)

91344-PC9-004

$3.51

34

COLLAR

91502-MGS-D50

$2.72

35

PIN, DOWEL (8X20)

94301-08200

$2.25

36

CIRCLIP (INNER) (40)

94520-40150

$2.02

37

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

38

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

39

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
