Description

Price

1

DAMPER SET, WHEEL

06410-MGS-D30

$59.16

2

SPROCKET, FINAL DRIVEN (39T)

41201-MGS-D70

$77.70

3

AXLE, RR. WHEEL This part replaces 42301-MGS-D30.

42301-MGS-D31

$47.56

4

COLLAR, L. RR. WHEEL SIDE

42311-MGS-D10

$21.21

5

COLLAR, RR. BRAKE SIDE

42312-MGS-D10

$15.62

6

RING, RR. PULSER

42515-MGS-D80

$63.00

7

FLANGE SUB-ASSY., RR. DRIVEN

42615-MGS-D30

$259.90

8

COLLAR, RR. AXLE DISTANCE

42620-MGS-D10

$25.44

9

COLLAR B, RR. WHEEL DISTANCE

42625-MGS-D30

$19.46

10

WHEEL SUB-ASSY., RR. (COO) This part replaces 42650-MGS-306.

42650-MGS-316

$873.34

11

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.61

11

WEIGHT, BALANCE (20G)

42705-MER-D00

$17.93

11

WEIGHT, BALANCE (30G)

42706-MER-D00

$17.67

12

TIRE, RR. (160/60ZR17 M/C 69W) (BS) This part replaces 42711-MGS-D32.

42711-MGS-D35

$241.78

13

VALVE, RIM (BS)

42753-ML7-003

$12.74

14

DISK, RR. BRAKE (SUNSTAR)

43251-MGS-D31

$340.11

15

BOLT, STUD (12X25)

90102-MAS-000

$4.01

16

BOLT, DISK (8X24) (TSUKIBOSHI) This part replaces 90105-MBB-000.

90105-MV9-003

$6.21

16

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

17

NUT, U (18MM)

90301-MJF-A01

$10.56

18

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

$3.85

19

WASHER (20X31.5X2)

90401-MAS-000

$3.21

20

WASHER, RR. SWINGARM

90559-MER-R60

$4.21

21

BEARING, ANGULAR BALL (22X50X15)

91051-MGS-D31

$38.11

22

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$12.93

23

DUST SEAL (30X50X7)

91251-MGS-D31

$12.86

24

DUST SEAL (30X47X7.5)

91253-MAE-003

$15.95

25

O-RING (55X2)

91351-MGS-D30

$2.92

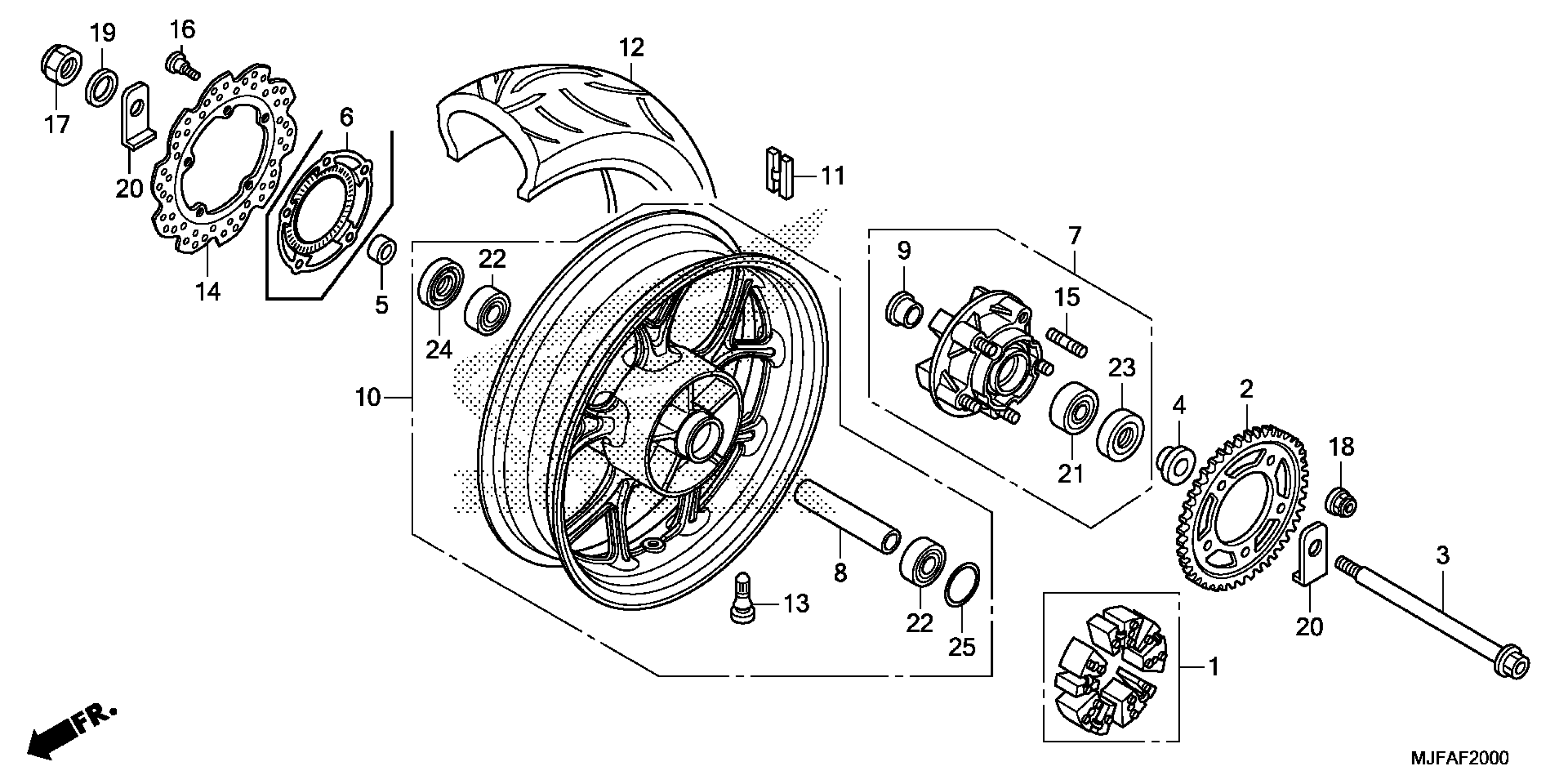

Honda CTX700DA (15) CTX700D, JPN, VIN# JH2RC694-FK100001 REAR WHEEL Diagram
