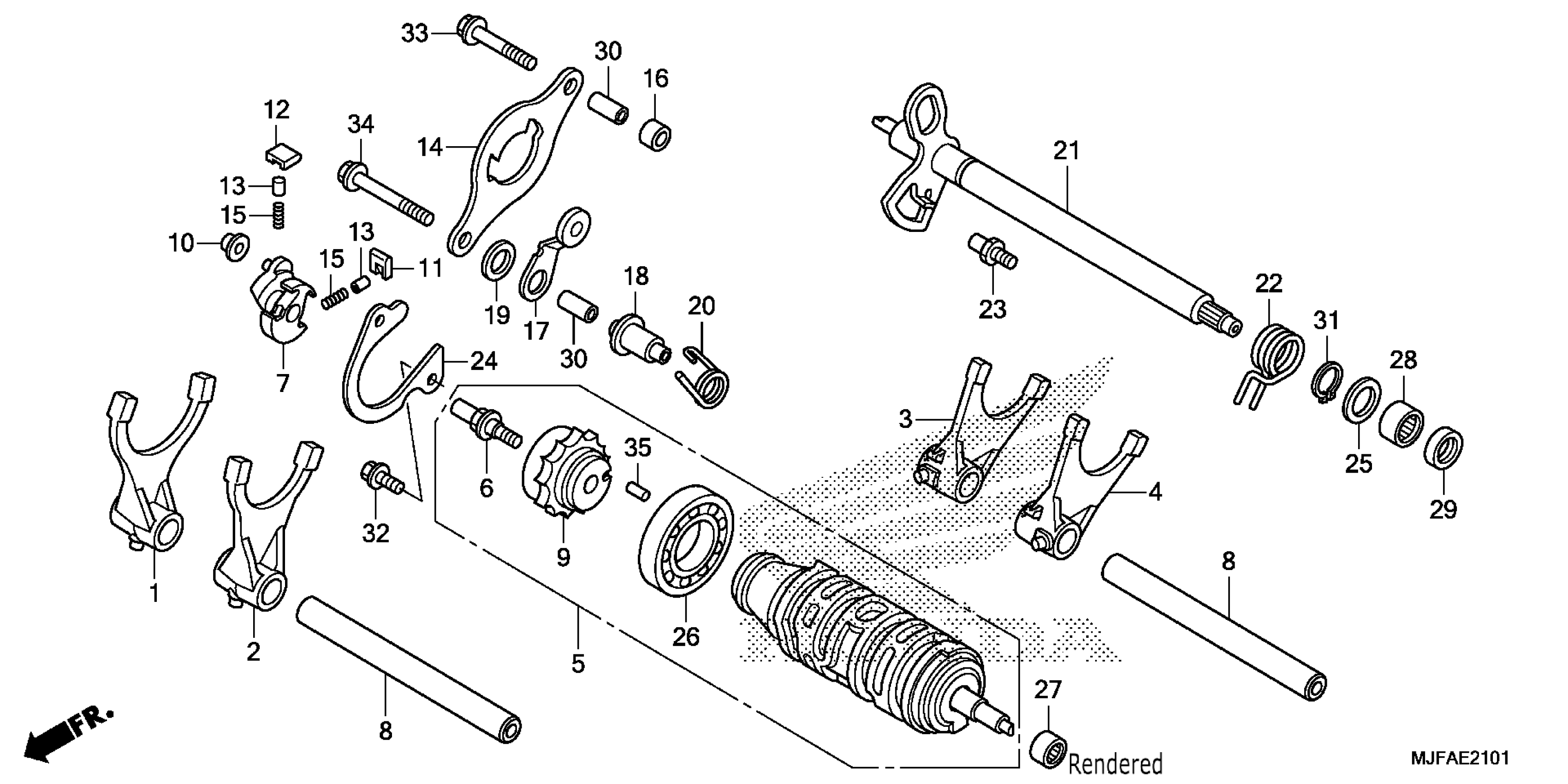

Honda CTX700DA (15) CTX700D, JPN, VIN# JH2RC694-FK100001 GEARSHIFT DRUM (2) Diagram

#

Description
Price

1

FORK, R. GEARSHIFT (MAIN)

24211-MGS-D20

$98.79

2

FORK, L. GEARSHIFT (MAIN)

24212-MGS-D20

$104.80

3

FORK, R. GEARSHIFT (COUNTER)

24213-MGS-D20

$99.84

4

FORK, L. GEARSHIFT (COUNTER)

24214-MGS-D20

$99.84

5

DRUM ASSY., GEARSHIFT | Use up to Engine SN 6004503 This part replaces 24310-MGS-D20.

24310-MGS-D22

$262.66

5

DRUM ASSY., GEARSHIFT | Use up to Engine SN 6004503 This part replaces 24310-MGS-D21.

24310-MGS-D22

$262.66

5

DRUM ASSY., GEARSHIFT | Use up to Engine SN 6004503

24310-MGS-D22

$262.66

6

PIN, SHIFTER | Use up to Engine SN 6004503

24315-HA0-000

$12.60

6

PIN, SHIFTER | Use from Engine SN 6007150

24315-HL4-000

$9.36

6

PIN, SHIFTER | Use up to Engine SN 6007149 This part replaces 24315-MGS-D20.

24315-HL4-000

$9.36

7

SHIFTER, DRUM

24321-KT8-030

$55.03

8

SHAFT, GEARSHIFT FORK

24321-MAS-000

$22.34

9

CENTER, SHIFT DRUM

24322-MGE-D01

$38.30

10

COLLAR, SHIFTER

24322-MM4-000

$5.12

11

PAWL A, RATCHET

24324-KA3-711

$13.21

12

PAWL B, RATCHET

24325-KA3-711

$13.21

13

PLUNGER, PAWL

24326-KBH-901

$5.81

14

PLATE, CHANGE GUIDE

24328-MGS-D20

$10.52

15

SPRING, PAWL PLUNGER

24329-KA3-740

$2.92

16

COLLAR, GUIDE PLATE DISTANCE

24329-MGS-D20

$4.03

17

STOPPER, DRUM

24430-MGE-000

$16.03

18

COLLAR, SHIFT DRUM STOPPER PLATE

24434-MGS-D20

$9.75

19

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.59

20

SPRING, SHIFT DRUM STOPPER

24435-MGS-D20

$5.44

21

SPINDLE, GEARSHIFT

24610-MGS-D20

$183.51

22

SPRING, GEARSHIFT RETURN

24651-MGS-D20

$10.44

23

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

24

PLATE, SHIFT DRUM BEARING SETTING

24655-MGS-D30

$4.25

25

WASHER (14MM)

90433-KE1-000

$2.00

26

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$17.30

27

BEARING, NEEDLE (12X18X12) | Use up to Engine SN 6008106

91024-MGS-D21

$4.11

28

BEARING, NEEDLE (14X20X12) | Use up to Engine SN 6008106

91028-MGS-D21

$5.39

29

OIL SEAL (14X22X5)

91203-KK3-830

$3.81

30

PIN, DOWEL (8X20)

94301-08200

$2.25

31

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

32

BOLT, FLANGE (6X14)

95701-06014-00

$1.49

33

BOLT, FLANGE (6X35)

95701-06035-00

$1.80

34

BOLT, FLANGE (6X55)

95701-06055-00

$2.16

35

ROLLER (4X8)

96220-40080

$1.49
