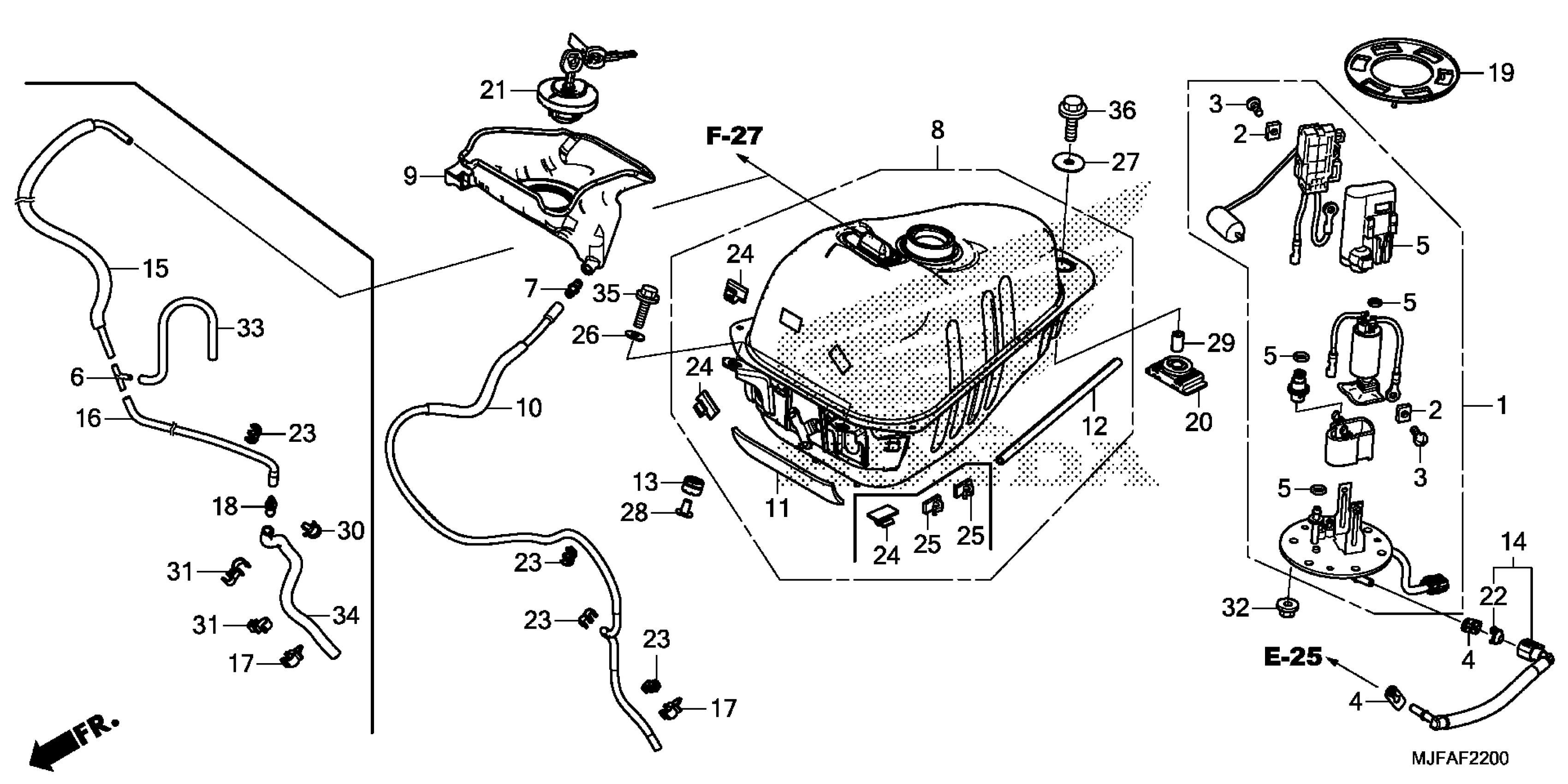

Honda CTX700DA (15) CTX700D, JPN, VIN# JH2RC694-FK100001 FUEL TANK Diagram

PUMP ASSY., FUEL This part replaces 16700-MJF-A02.

16700-MJF-A04

$671.72

STOPPER

16711-MGS-D31

$4.84

SCREW (4X6.6)

16712-MGS-D31

$1.89

DAMPER, CONNECTOR

16719-MEW-920

$2.92

FILTER ASSY., FUEL This part replaces 16730-MGS-D31.

16730-MKT-D01

$42.30

JOINT A, VACUUM TUBE

17201-MG9-000

$15.94

JOINT, BREATHER TUBE

17359-419-670

$1.95

TANK ASSY., FUEL

17500-MJF-M00

$974.70

TRAY, FUEL TANK

17507-MJF-A00

$19.61

TUBE, DRAIN

17508-MJF-A00

$24.82

MAT, FUEL TANK

17509-MJF-A00

$4.59

TRIM B, FUEL TANK

17517-KZZ-900

$7.19

RUBBER, TANK MOUNTING

17525-KFK-000

$4.87

HOSE, FUEL FEED

17526-MJF-A01

$93.89

TUBE A, SEPARATOR BREATHER

17530-MJF-M00

$17.74

TUBE B, BREATHER

17531-MJF-M20

$11.80

CLIP

17532-MGS-D31

$1.80

JOINT, BREATHER TUBE

17561-MEE-000

$4.41

GASKET, BASE

17574-MGS-D30

$24.44

CUSHION, RR. FUEL TANK

17613-KY1-000

$11.67

CAP COMP This part replaces 17620-MJF-A01.

17620-MJF-A02

$80.11

RETAINER

17711-MGE-003

$6.34

CLIP, THROTTLE WIRE

17915-MET-641

$2.89

CLAMP, CABLE (B)

32912-MG9-950

$2.39

CLIP, HARNESS

83705-MZ7-300

$7.18

WASHER (6MM)

90406-KV3-780

$2.31

WASHER (8MM)

90501-819-000

$1.49

COLLAR (6.3X14.5)

90503-KAE-000

$4.57

COLLAR (8X20)

90513-MAT-000

$3.04

CLAMP, CONDENSER PIPE

91580-SL0-A01

$5.17

NUT, FLANGE (6MM)

94050-06080

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X250)

95005-35001-20M

$9.67

BULK HOSE (7.3X1000)

95005-75001-20M

$22.45

BOLT, FLANGE (6X28)

95701-06028-00

$1.73

BOLT, FLANGE (8X32)

95701-08032-00

$1.49
