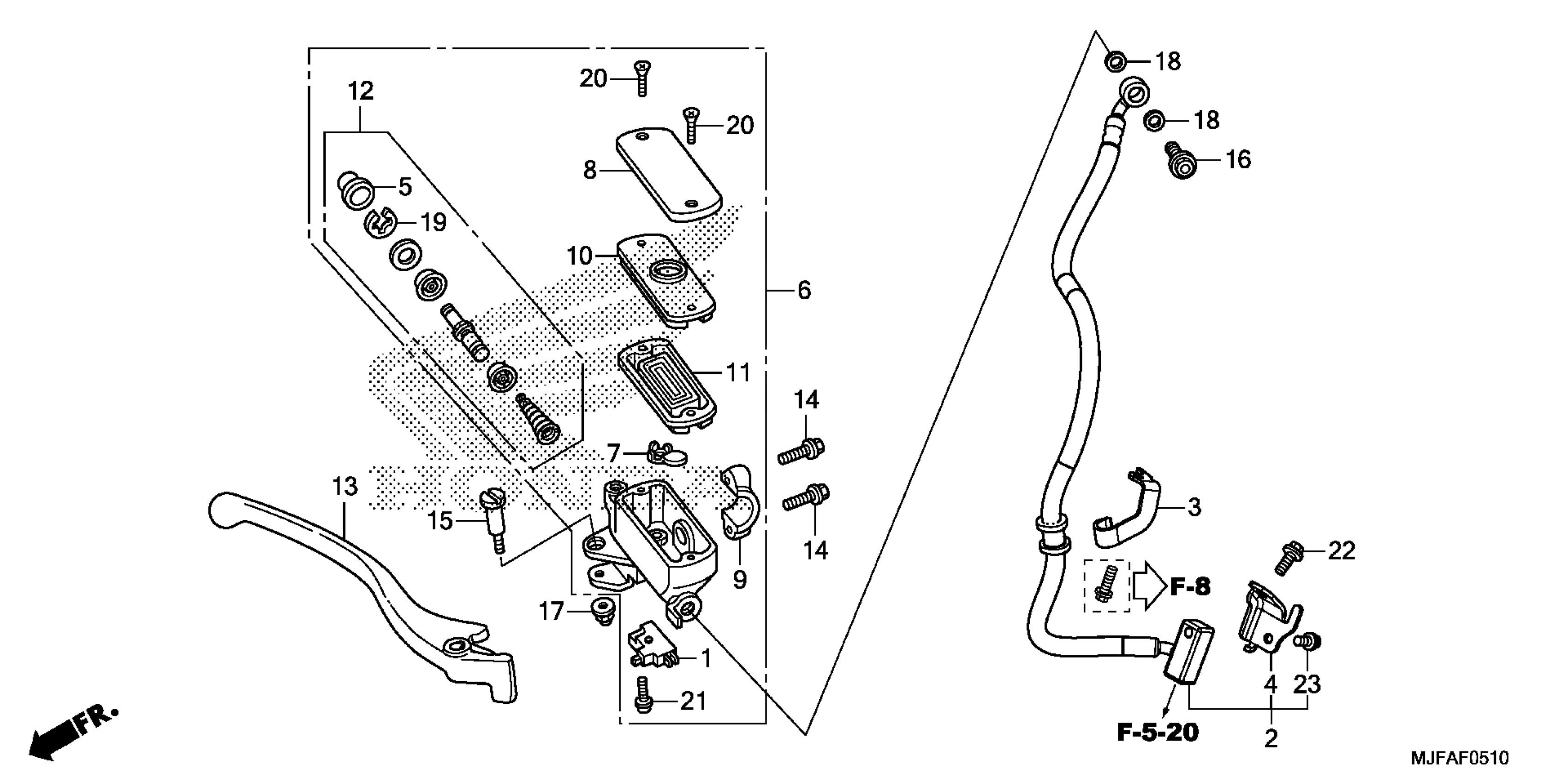

Honda CTX700DA (15) CTX700D, JPN, VIN# JH2RC694-FK100001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

HOSE A, FR. BRAKE

45125-MJF-C11

$59.16

3

CLAMP A, FR. BRAKE

45155-MJF-C10

$7.79

4

STAY, FR. BRAKE HOSE

45158-MGS-D80

$5.93

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGS-D31

$279.84

6

MASTER CYLINDER SUB-ASSY., FR. (NISSIN) This part replaces 45510-MGS-305.

45510-MGS-D31

$279.84

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

9

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

10

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

11

DIAPHRAGM

45520-MM5-006

$15.12

12

MASTER CYLINDER SET

45530-KVY-911

$26.57

13

LEVER, R. HANDLE (COO)

53175-MJF-305

$21.13

14

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

16

BOLT, OIL (10X22)

90145-MS9-612

$7.54

17

NUT, CAP (6MM)

90201-415-000

$2.05

18

WASHER, OIL BOLT

90545-300-000

$3.99

19

CIRCLIP

90651-MA5-671

$2.66

20

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

21

SCREW-WASHER (4X12)

93893-04012-07

$1.49

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

22

BOLT, FLANGE (6X14)

95701-06014-07

$1.49

23

BOLT, FLANGE (6X12)

96001-06012-07

$1.72
