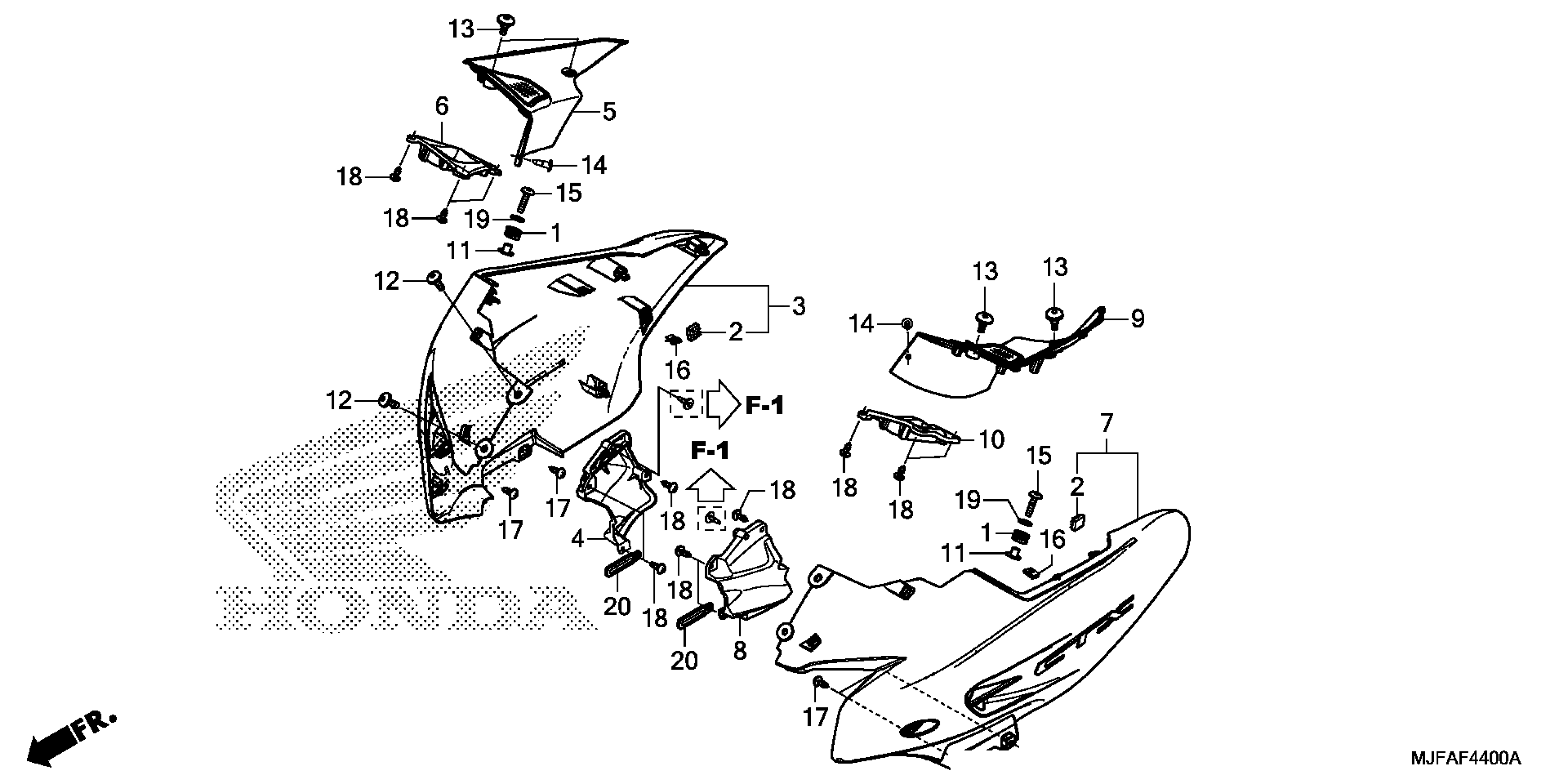

Honda CTX700DA (14) CTX700D, JPN, VIN# JH2RC694-EK000001 TO JH2RC694-EK099999 COWL Diagram

RUBBER, TAILLIGHT

33712-KT1-670

$4.28

FASTENER B, DUAL LOCK (20X20)

64165-MJF-A30

$3.62

COWL, R. FR. SIDE (TYPE3)

64300-MJF-A30ZA

$333.99

PANEL, R. (INNER)

64312-MJF-A30

$6.24

COVER, R. (INNER)

64340-MJF-A30

$63.28

PANEL, R. (UPPER) (INNER)

64341-MJF-A30

$7.29

COWL, L. FR. SIDE (TYPE3)

64350-MJF-A30ZA

$286.29

PANEL, L. (INNER)

64362-MJF-A30

$4.43

COVER, L. (INNER)

64390-MJF-A30

$88.54

PANEL, L. (UPPER) (INNER)

64391-MJF-A30

$7.29

COLLAR, TAILLIGHT MOUNTING

84706-163-670

$3.90

BOLT, SPECIAL (6X18)

90155-MGE-000

$3.03

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.40

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

SCREW, PAN (5X20)

90120-MEL-000

$1.81

NUT, CLIP (5MM)

90677-KAN-961

$3.89

SCREW, TAPPING (4X10)

93903-24280

Unavailable

SCREW, TAPPING (4X12)

93903-24380

Unavailable

WASHER, PLAIN (6MM)

94103-06800

$0.72

CLIP (2X50)

90105-727-000

$2.93
