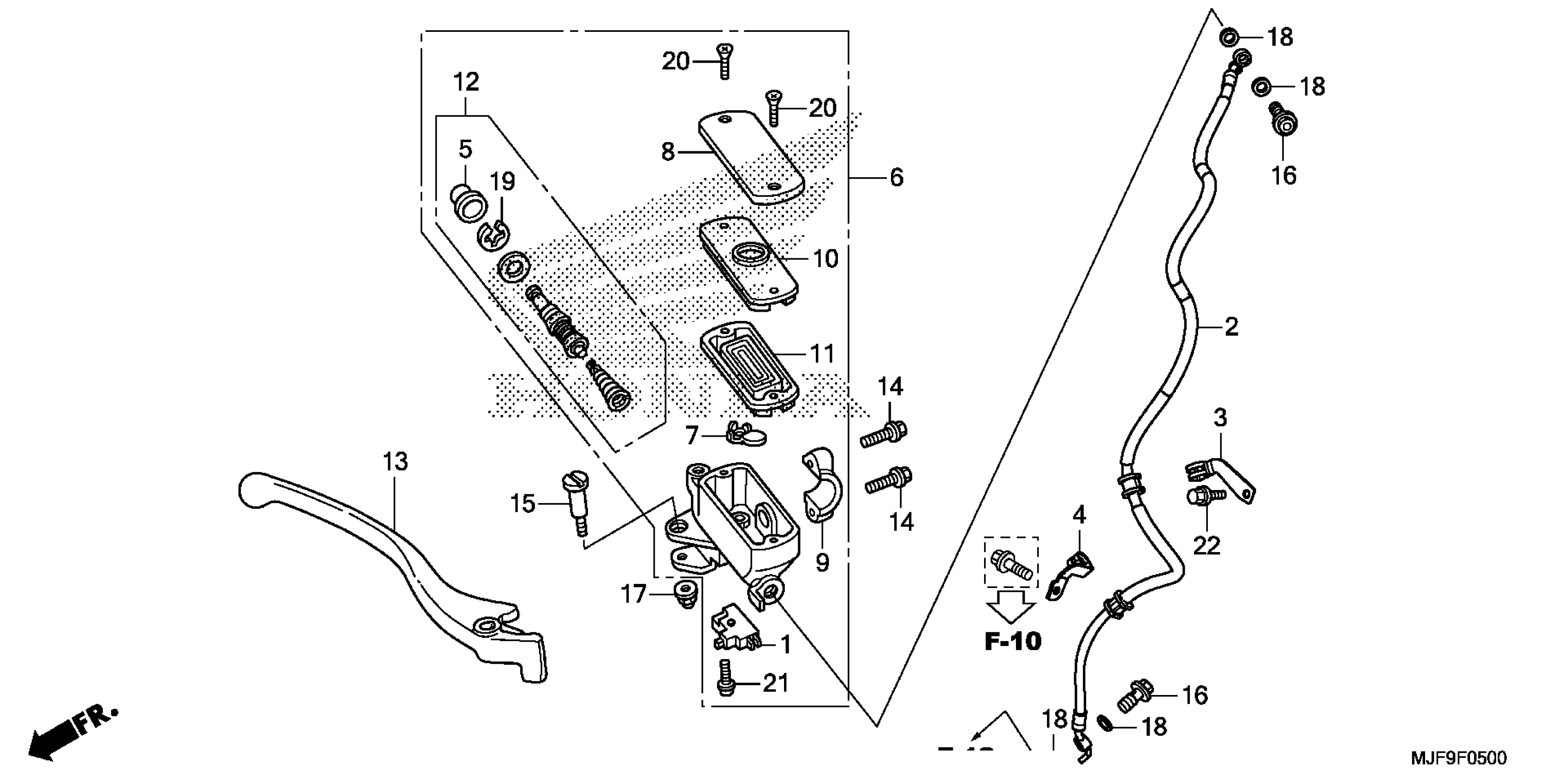

Honda CTX700AC (16) CTX700, JPN, VIN# JH2RC691-GK200001 TO JH2RC691-GK299999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

HOSE, FR. BRAKE

45125-MJF-A32

$62.13

CLAMP A, FR. BRAKE

45155-MGS-D30

$9.31

CLAMP B, FR. BRAKE HOSE

45156-MGS-D30

$8.92

BOOT

45504-410-003

$12.16

MASTER CYLINDER SUB-ASSY., FR. (NISSIN)

45510-MGS-D31

$279.84

PROTECTOR

45512-MA6-006

$4.28

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

PLATE, DIAPHRAGM (NISSIN)

45518-MM5-006

$10.65

DIAPHRAGM (NISSIN)

45520-MM5-006

$15.12

MASTER CYLINDER SET

45530-KVY-911

$26.57

LEVER, R. HANDLE (COO)

53175-MJF-305

$21.13

BOLT, FLANGE (6X22)

90101-MBZ-G00

$1.49

BOLT, R. HANDLEBAR PIVOT

90114-MA5-671

$9.43

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, OIL BOLT

90545-300-000

$3.99

CIRCLIP

90651-MA5-671

$2.66

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
