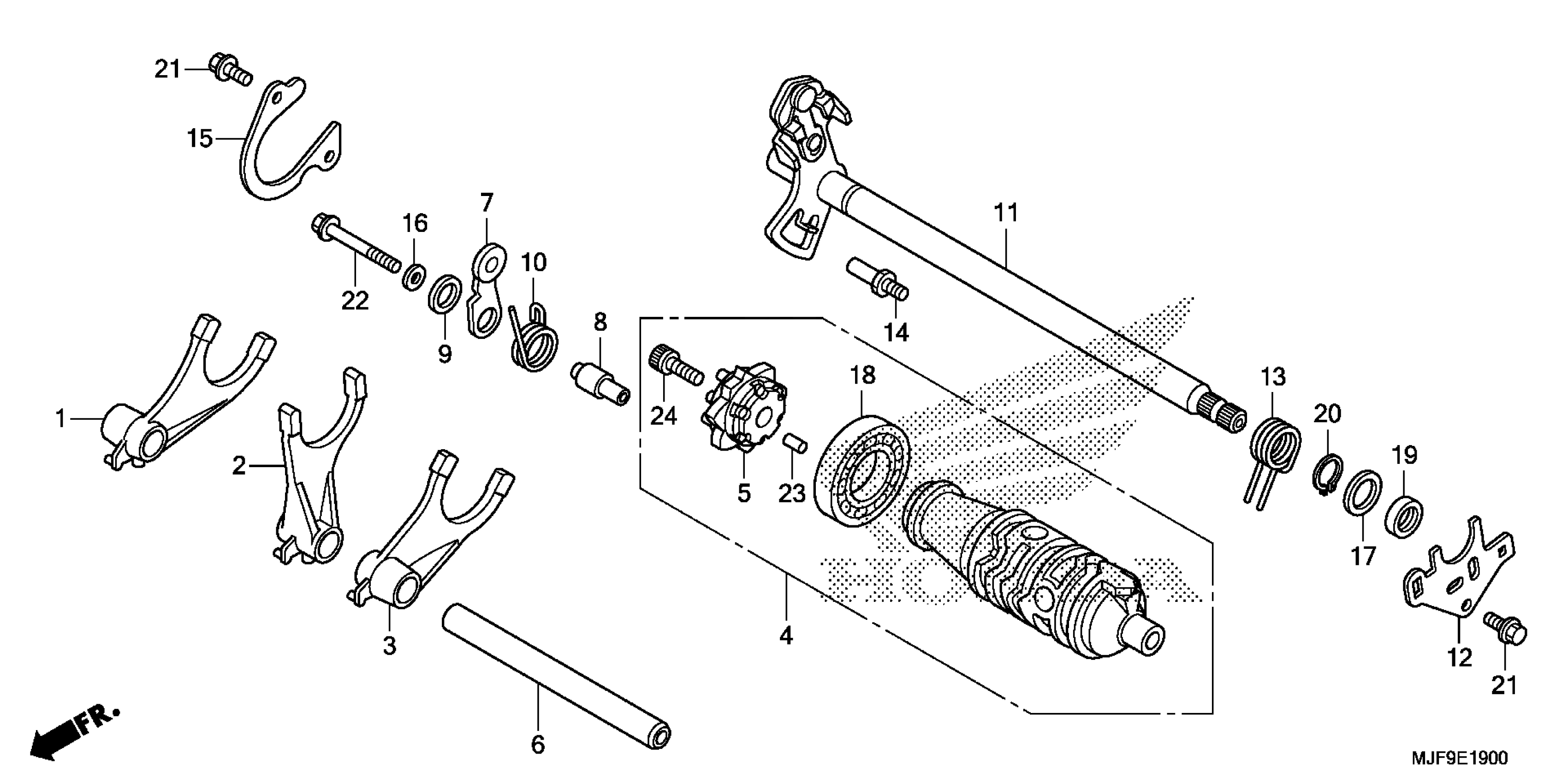

Honda CTX700A (16) CTX700, JPN, VIN# JH2RC690-GK200001 TO JH2RC690-GK299999 GEARSHIFT DRUM (1) Diagram

FORK, R. GEARSHIFT

24211-MGS-D30

$99.89

FORK, CENTER GEARSHIFT

24212-MGS-D30

$99.89

FORK, L. GEARSHIFT

24213-MGS-D30

$99.87

DRUM ASSY., GEARSHIFT

24310-MGS-D30

$245.80

CENTER, SHIFT DRUM

24315-MAS-E00

$36.44

SHAFT, GEARSHIFT FORK

24321-MAS-000

$22.34

STOPPER, GEARSHIFT DRUM

24430-MGS-D30

$23.41

COLLAR, SHIFT DRUM STOPPER PLATE

24434-MGS-D30

$7.92

COLLAR, DRUM STOPPER SIDE

24435-MGE-000

$2.59

SPRING, SHIFT DRUM STOPPER

24435-MGS-D30

$5.44

SPINDLE, GEARSHIFT

24610-MGS-D30

$175.59

PLATE, SPINDLE

24612-MGS-D30

$2.92

SPRING, GEARSHIFT RETURN

24651-MGS-D30

$7.55

PIN, GEARSHIFT RETURN SPRING

24652-HA0-000

$8.52

PLATE, SHIFT DRUM BEARING SETTING

24655-MGS-D30

$4.25

WASHER, DRUM STOPPER

90417-360-000

$1.74

WASHER, THRUST (16MM)

90453-235-000

$1.83

BEARING, RADIAL BALL (25X47X8)

91007-MGS-D21

$17.30

BEARING, RADIAL BALL (25X47X8) This part replaces 91007-MGS-D31.

91007-MGS-D21

$17.30

OIL SEAL (16X24X5)

91201-MGS-D31

$10.16

CIRCLIP (OUTER) (16MM)

94510-16000

$1.49

BOLT, FLANGE (6X14) (Honda Code 2410884)

95701-06014-00

$1.49

BOLT, FLANGE (6X45)

95701-06045-08

$2.06

ROLLER (4X8)

96220-40080

$1.49

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
