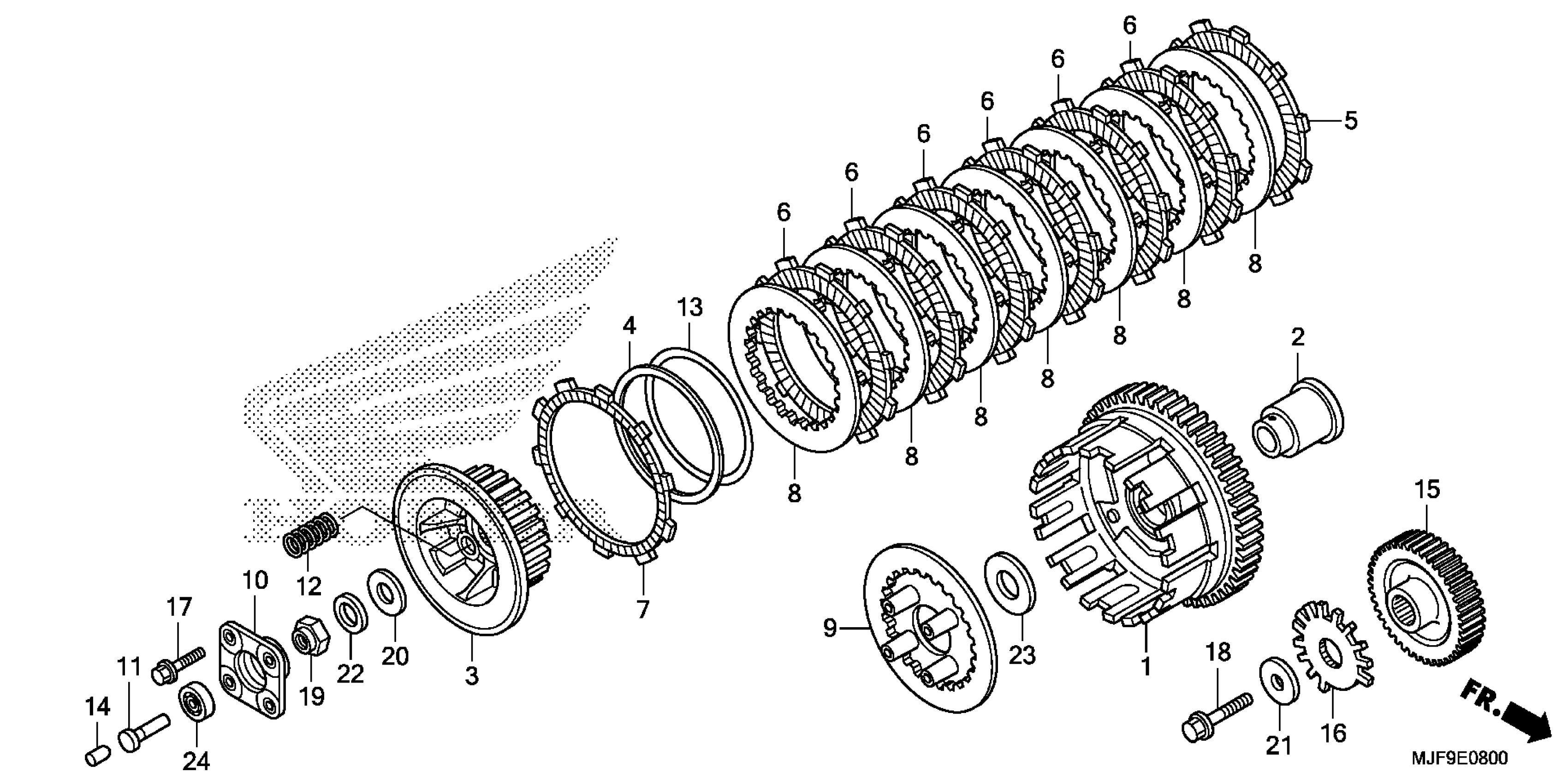

Honda CTX700A (16) CTX700, JPN, VIN# JH2RC690-GK200001 TO JH2RC690-GK299999 CLUTCH (1) Diagram

CLUTCH OUTER (71T)

22100-MGS-D30

$368.30

GUIDE, CLUTCH (OUTER)

22116-MGS-D30

$34.39

CENTER, CLUTCH (24T)

22120-MBA-000

$78.87

SEAT, JUDDER SPRING

22125-435-000

$8.22

DISK, CLUTCH FRICTION

22201-MAV-000

$11.69

DISK, CLUTCH FRICTION

22201-MFF-D00

$13.37

DISK B, CLUTCH FRICTION

22202-MAE-000

$14.37

PLATE, CLUTCH

22321-MN8-000

$8.42

PLATE, CLUTCH PRESSURE

22350-MS6-922

$53.91

PLATE, CLUTCH LIFTER

22361-MR1-000

$19.01

ROD, CLUTCH CENTER

22366-MFF-D00

$10.78

SPRING, CLUTCH

22401-MM9-000

$3.55

SPRING, JUDDER

22402-435-000

$30.64

ROD, CLUTCH LIFTER

22847-MFF-D00

$6.13

GEAR, PRIMARY DRIVE (41T)

23103-MGS-D30

$133.84

ROTOR, PULSE

30291-MGS-D30

$7.30

BOLT, FLANGE (6X35)

90007-MJH-Y01

$2.77

BOLT, FLANGE (10MM)

90023-MBW-000

$8.91

NUT, LOCK (18MM)

90236-HA0-000

$9.38

WASHER (18MM)

90401-MZ8-B40

$2.30

WASHER (10.5X36X4)

90414-MGE-D00

$2.42

WASHER, LOCK

90432-428-000

$7.05

WASHER, THRUST (22MM)

90452-471-000

$4.45

BEARING, RADIAL BALL (6001)

96100-60010-00

$7.14
