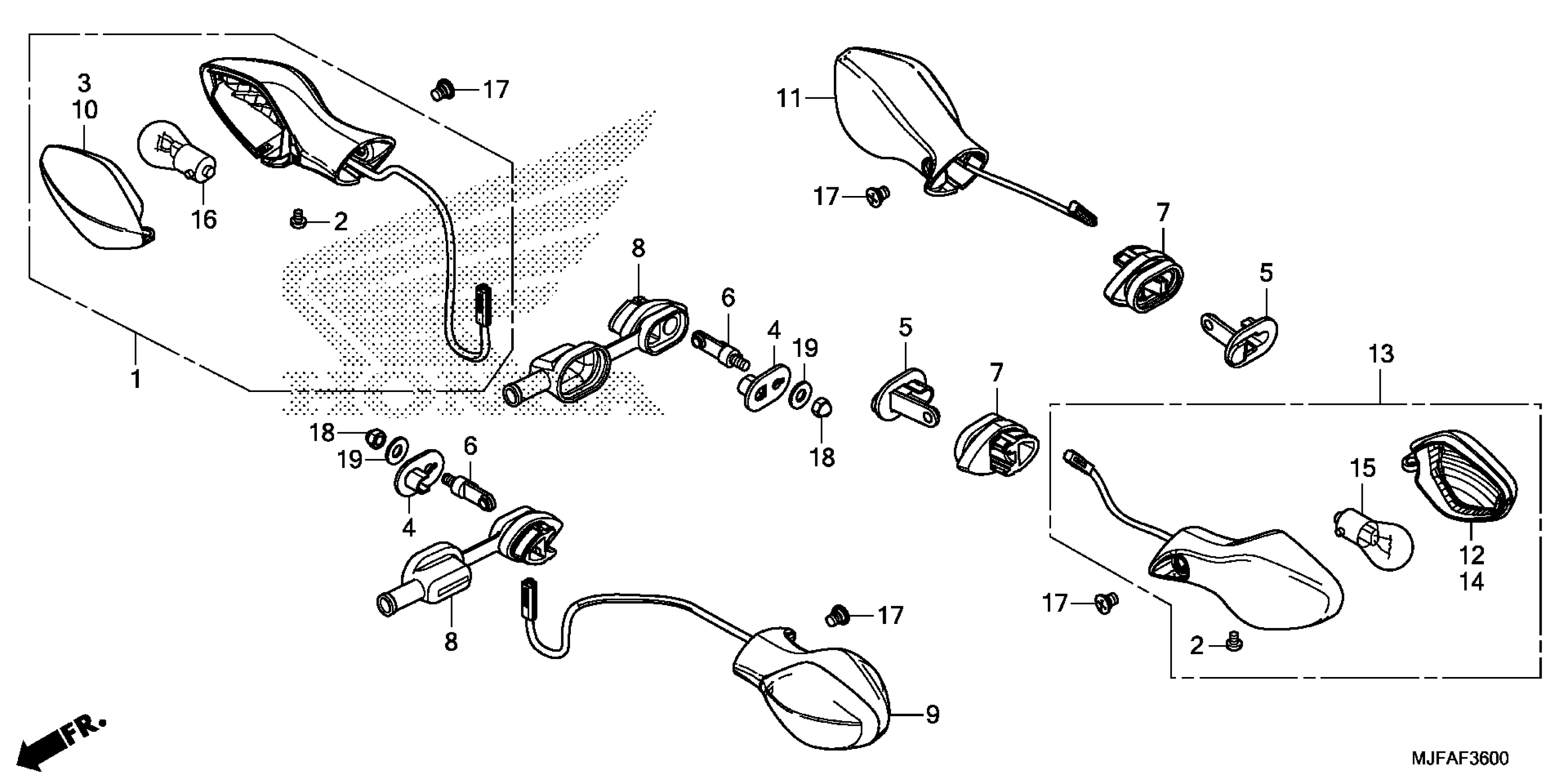

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 TURN SIGNAL Diagram

#

Description
Price

1

WINKER ASSY R FR This part replaces 33400-MJF-306.

33400-MJF-326

$14.22

2

SCREW, SPECIAL (4X10)

33402-MGS-D31

$1.49

3

LENS, R. TURN SIGNAL (COO) This part replaces 33404-KZZ-305.

33404-KZZ-315

$3.01

3

LENS, R. TURN SIGNAL (COO)

33404-KZZ-315

$3.01

3

LENS, R. TURN SIGNAL (COO) This part replaces 33404-MGS-J31.

33404-KZZ-315

$3.01

4

PLATE, TURN SIGNAL

33411-MGZ-J00

$1.49

5

STAY, TURN SIGNAL

33412-MGS-D30

$7.70

6

STAY, TURN SIGNAL

33412-MGZ-J00

$17.82

7

RUBBER, TURN SIGNAL MOUNTING

33413-MGS-D30

$5.98

8

RUBBER, TURN SIGNAL MOUNTING

33413-MGZ-J00

$8.80

9

WINKER ASSY L FR This part replaces 33450-MJF-306.

33450-MJF-326

$96.57

10

LENS, L. TURN SIGNAL (COO) This part replaces 33454-KZZ-305.

33454-KZZ-315

$2.95

10

LENS, L. TURN SIGNAL (COO)

33454-KZZ-315

$2.95

10

LENS, L. TURN SIGNAL (COO) This part replaces 33454-MGS-J31.

33454-KZZ-315

$2.95

11

WINKER ASSY R RR This part replaces 33600-MJF-305.

33600-MJF-325

$13.87

11

WINKER ASSY R RR This part replaces 33600-MJF-315.

33600-MJF-325

$13.87

12

LENS, R. TURN SIGNAL (COO) This part replaces 33404-KZZ-305.

33404-KZZ-315

$3.01

12

LENS, R. TURN SIGNAL (COO)

33404-KZZ-315

$3.01

12

LENS, R. TURN SIGNAL (COO) This part replaces 33404-MGS-J31.

33404-KZZ-315

$3.01

13

WINKER ASSY L RR This part replaces 33650-MJF-305.

33650-MJF-325

$13.07

13

WINKER ASSY L RR This part replaces 33650-MJF-315.

33650-MJF-325

$13.07

14

LENS, L. TURN SIGNAL (COO) This part replaces 33454-KZZ-305.

33454-KZZ-315

$2.95

14

LENS, L. TURN SIGNAL (COO)

33454-KZZ-315

$2.95

14

LENS, L. TURN SIGNAL (COO) This part replaces 33454-MGS-J31.

33454-KZZ-315

$2.95

15

BULB, TURN SIGNAL LIGHT (P21W)

34904-MGZ-J01

$17.82

16

BULB, TAILLIGHT (P21/5W) (LIFE ELEX)

34906-MGZ-J01

$6.71

17

SCREW, SPECIAL (6X8)

90380-MGS-D30

$3.51

18

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

18

NUT, CAP (6MM)

94021-06020

$1.73

18

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

18

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

19

WASHER, PLAIN (6MM)

94101-06700

$1.49
