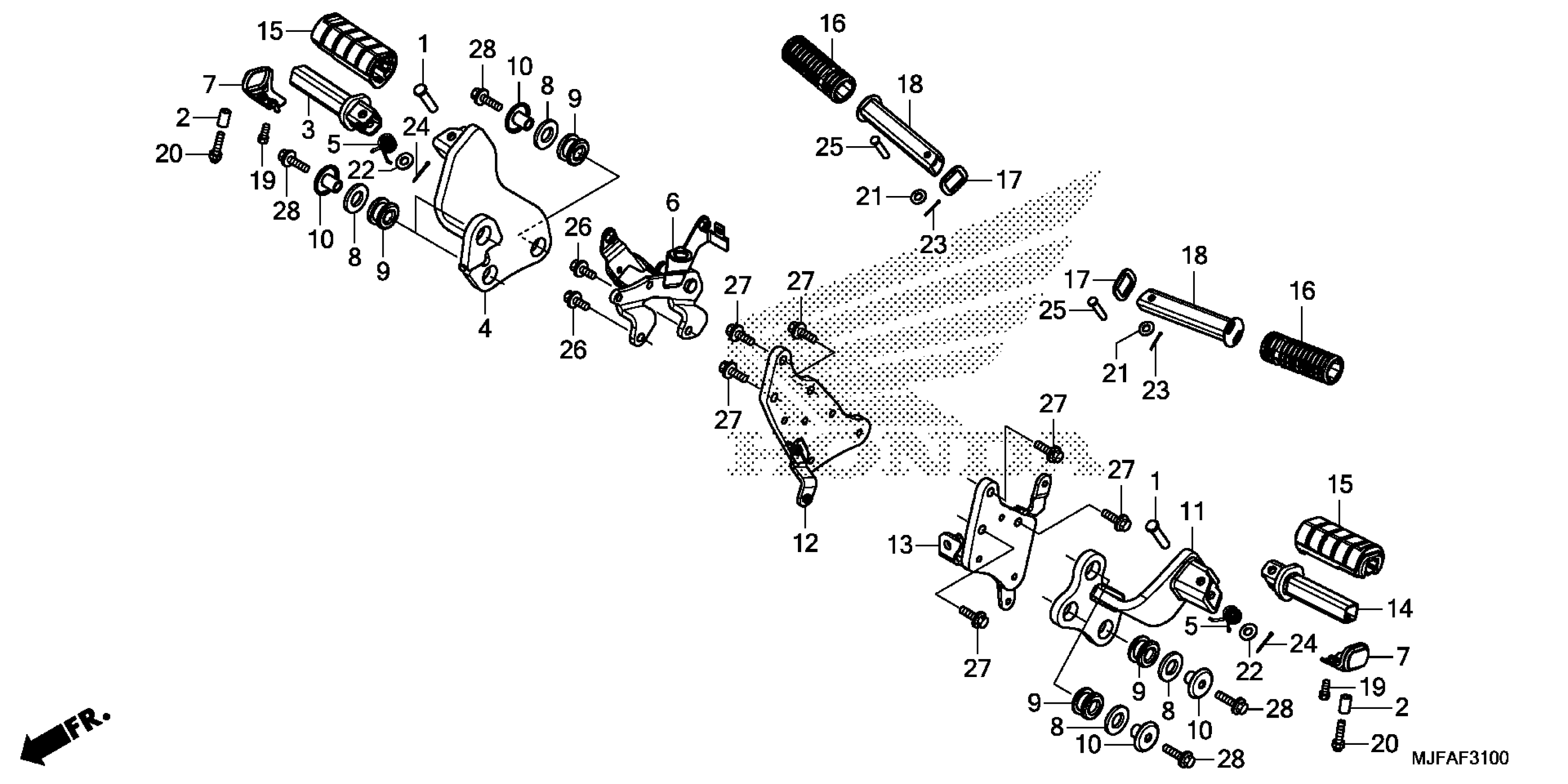

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 STEP Diagram

#

Description
Price

1

PIN, STEP BAR JOINT

50603-033-010

$2.98

2

COLLAR, MAIN STEP (10X16)

50611-MJF-A00

$3.22

3

BAR, R. STEP (COO)

50612-MEG-305

$15.85

4

HOLDER, R. MAIN STEP

50615-MJF-A00

$72.61

5

SPRING, STEP RETURN

50617-MB1-700

$5.41

6

BRACKET, RR. BRAKE

50618-MJF-A00

$77.84

7

STOPPER, STEP RUBBER

50619-MGR-670

$16.71

8

RUBBER, STEP MOUNTING

50622-MJF-A00

$1.13

9

RUBBER, STEP MOUNTING

50623-MAV-000

$4.03

10

COLLAR, STEP

50624-MAV-000

$5.10

11

HOLDER, L. MAIN STEP

50625-MJF-A00

$69.10

12

PLATE, R. STEP

50630-MJF-A00

$67.68

13

PLATE, L. STEP

50640-MJF-A00

$65.81

14

BAR, L. STEP (COO)

50642-MEG-305

$15.01

15

RUBBER, MAIN STEP (COO) This part replaces 50661-MEG-000.

50661-MEG-305

$5.67

15

RUBBER, MAIN STEP (COO)

50661-MEG-305

$5.67

16

RUBBER, PILLION FOOTPEG This part replaces 50710-377-000.

50716-371-660

$12.78

16

RUBBER, PILLION FOOTPEG

50716-371-660

$12.78

17

WASHER, PILLION STEP

50712-MFE-670

$2.81

18

BAR, PILLION STEP (COO)

50715-413-305

$15.98

19

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

20

BOLT, CAP (6X25)

92501-06025-0A

$2.64

21

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

21

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

21

WASHER, PLAIN (6MM)

94101-06800

Unavailable

22

WASHER, PLAIN (8MM)

94101-08000

$0.75

23

PIN, SPLIT (1.6X12)

94201-16120

$0.94

24

PIN, SPLIT (2.0X15)

94201-20150

$0.94

25

PIN A, PILLION STEP

95015-81000

$2.01

26

BOLT, FLANGE (8X18)

95701-08018-07

$0.77

27

BOLT, FLANGE (8X28)

95701-08028-08

$1.91

28

BOLT, FLANGE (8X32)

96300-08032-07

$1.72
