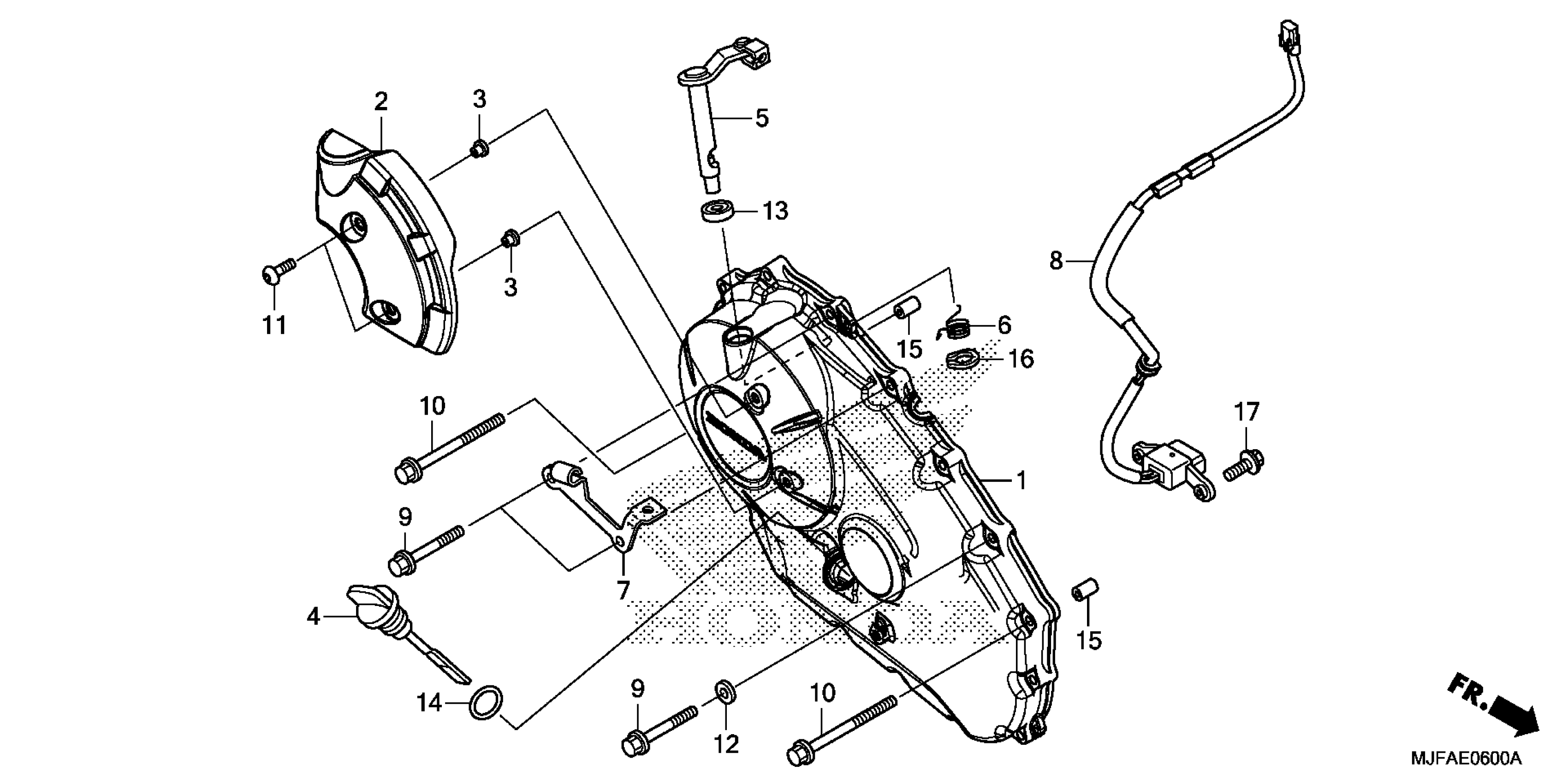

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 RIGHT CRANKCASE COVER (1) Diagram

COVER, R. CRANKCASE

11330-MJF-A00

$370.69

COVER, R. ENGINE SIDE

11380-MJF-A00

$13.72

COLLAR

11385-MJF-A00

$2.92

DIPSTICK, OIL

15650-MGS-D30

$28.61

LEVER, CLUTCH

22810-MGS-D30

$80.39

SPRING, CLUTCH LEVER

22815-413-000

$3.08

RECEIVER, CLUTCH CABLE

22821-MJF-A00

$11.26

GENERATOR ASSY., PULSE

30300-MJF-A01

$119.87

BOLT, FLANGE (6X28) (NSHF)

90006-GHB-680

$2.03

BOLT, FLANGE (6X40) (NSHF)

90006-GHB-710

$1.92

BOLT, SPECIAL (6X17)

90085-MGC-920

$2.57

WASHER, SEALING (6MM)

90488-425-000

$2.28

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$5.05

O-RING (18X3)

91307-035-000

$2.92

PIN, DOWEL (8X14)

94301-08140

$2.25

CIRCLIP (OUTER) (10MM)

94510-10000

$1.49

BOLT, FLANGE (6X16)

95701-06016-00

$1.55
