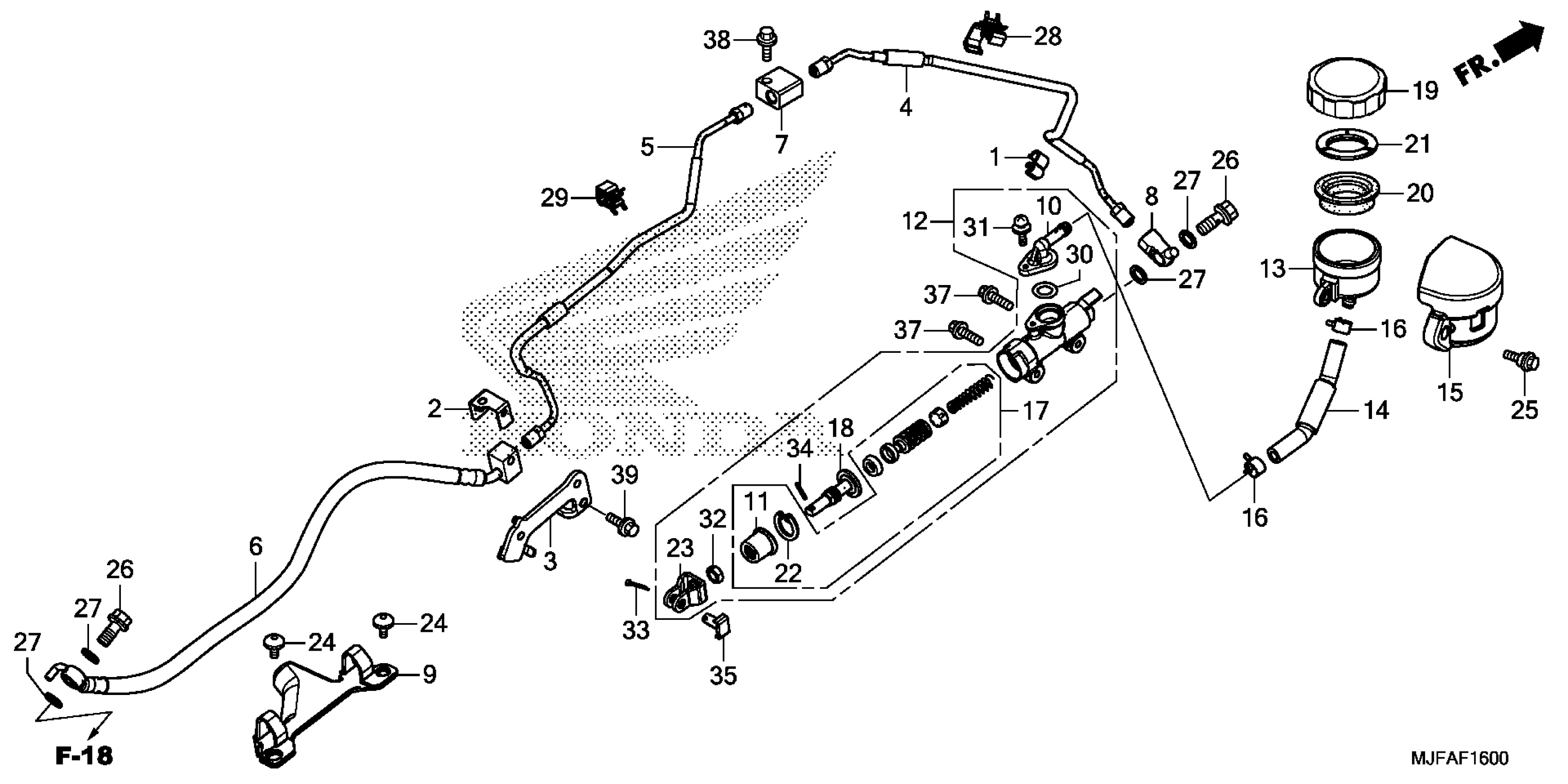

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 REAR BRAKE MASTER CYLINDER (1) Diagram

CLAMP, PIPE

11152-KS4-003

$7.13

STAY, SENSOR WIRE

38515-MJF-A00

$4.18

STAY, RR. BRAKE HOSE

43160-MJF-A00

$16.59

PIPE A, RR. BRAKE

43310-MJF-A00

$19.11

PIPE B, RR. BRAKE

43311-MJF-A00

$22.89

HOSE D, RR. BRAKE

43313-MJF-A01

$98.07

JOINT, BRAKE PIPE (2WAY)

43314-MJF-A01

$22.39

JOINT, BRAKE PIPE

43321-MJF-A01

$36.21

GUIDE, RR. BRAKE HOSE

43468-MGS-D31

$16.59

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.74

BOOT

43504-MB2-006

$10.04

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN) This part replaces 43510-MJF-305.

43510-MJF-A01

$219.67

CUP, OIL

43511-MR7-016

$32.46

HOSE, RR. BRAKE MASTER CYLINDER

43512-MJF-A01

$19.33

COVER, RR. MASTER CYLINDER CUP

43513-MJF-A00

$19.00

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$13.12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$46.73

ROD, PUSH

43530-MV9-006

$35.31

CAP, OIL CUP

45513-MEL-D21

$18.42

DIAPHRAGM

45520-300-000

$9.05

PLATE, DIAPHRAGM

45521-MJ6-006

$4.06

CIRCLIP

46182-MEL-D21

$1.93

JOINT, BRAKE ROD

46504-MAH-671

$14.30

SCREW, SPECIAL (5X14)

90101-MJJ-D30

$3.17

BOLT, FLANGE (6X25)

90113-MJF-A00

$4.43

BOLT, OIL (10X22)

90145-MS9-612

$7.54

WASHER, OIL BOLT

90545-300-000

$3.99

CLAMP, BRAKE PIPE (7.0X2)

90661-MEW-921

$2.84

CLAMP, BRAKE PIPE (7.0)

90662-MGS-D81

$3.03

O-RING (14.8X2.4)

91212-422-006

$2.56

SCREW-WASHER (4X12)

93893-04012-07

$1.49

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

NUT, HEX. (8MM)

94002-08000-0S

$1.49

PIN, SPLIT (2.0X15)

94201-20150

$1.49

PIN, SPRING (2X10)

94305-20102

$1.49

PIN D, JOINT

95015-54000

$4.24

BOLT, FLANGE (6X18)

95701-06018-00

$1.62

BOLT, FLANGE (6X12)

96001-06012-00

$1.80

BOLT, FLANGE (6X14)

96001-06014-00

$1.72
