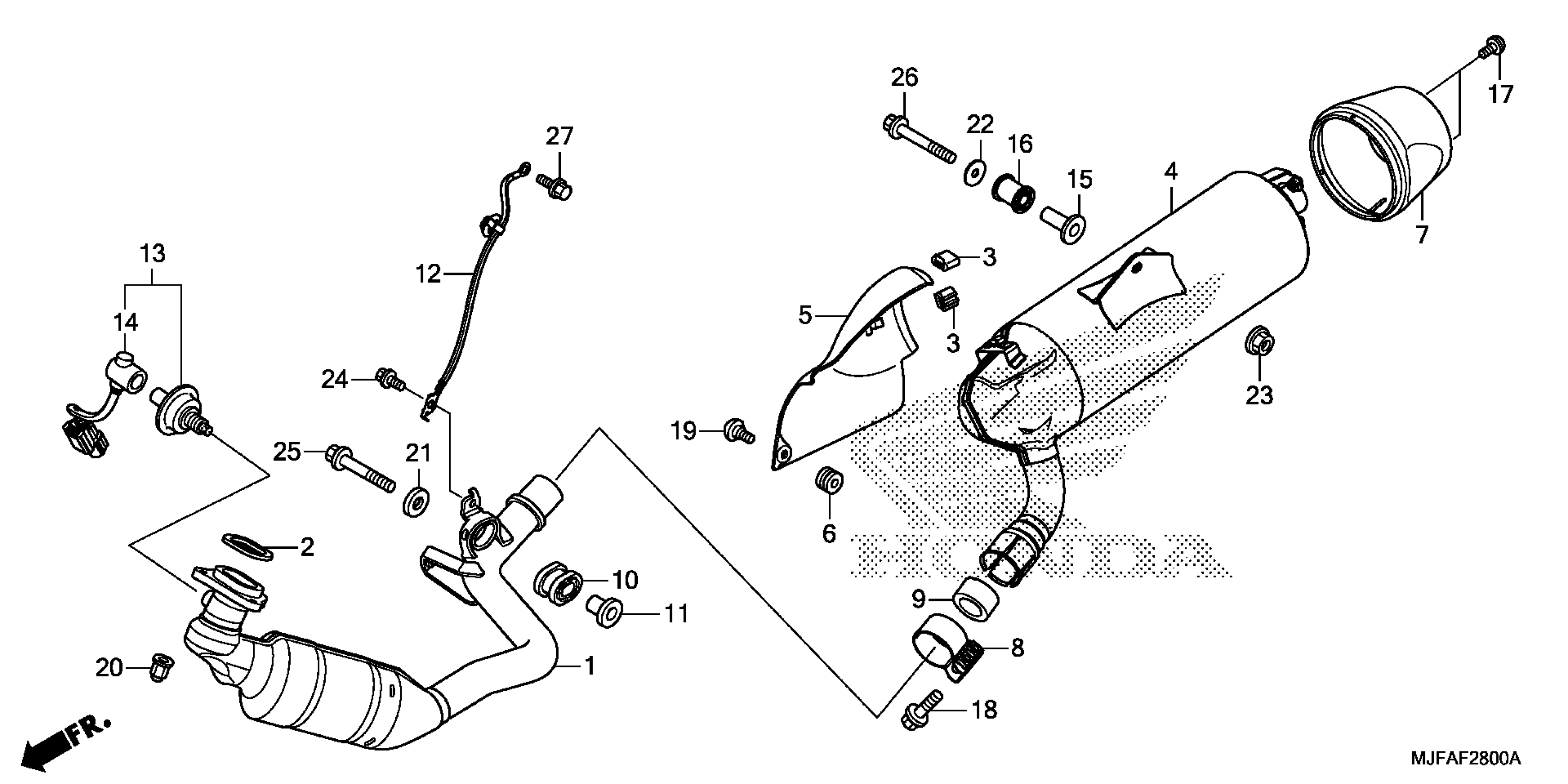

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 MUFFLER Diagram

#

Description
Price

1

PIPE, EX.

18150-MJF-A01

$1,003.06

2

GASKET, EX. PIPE

18291-MGS-D31

$10.46

3

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$1.90

4

MUFFLER

18310-MJF-A02

$564.72

5

COVER, MUFFLER

18342-MJF-A01

$53.61

6

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.01

7

COVER, MUFFLER END

18350-MJF-A00

$159.81

8

BAND, MUFFLER

18376-KG0-003

$17.29

9

GASKET, MUFFLER

18392-MK4-000

$12.54

10

RUBBER, EX. PIPE MOUNTING

18422-MFJ-D10

$17.07

11

COLLAR, EX. PIPE MOUNTING

18423-MGS-D30

$7.10

12

SUB-HARNESS, OXYGEN SENSOR GROUND

32200-MJF-A00

$8.29

13

SENSOR, OXYGEN

36532-MJF-A01

$247.21

14

WIRE, OXYGEN SENSOR

36533-MJF-A01

$61.34

15

COLLAR, MOUNTING RUBBER

50607-KK6-000

$8.42

16

RUBBER, MUFFLER MOUNTING

50608-KK6-000

$7.45

17

BOLT, SOCKET (6X10)

90102-MJF-A00

$2.96

18

BOLT, FLANGE (8X35)

90103-KCM-620

$1.46

19

SCREW, PAN (6X12)

90113-GFP-B00

$3.41

20

NUT, CAP (8MM)

90304-ME1-670

$5.68

21

WASHER (8MM)

90501-819-000

$1.38

22

WASHER (8.5X28)

90534-MV4-000

$2.66

23

NUT, FLANGE (8MM)

94050-08080

$0.87

24

BOLT, FLANGE (6X12)

95701-06012-00

$1.84

25

BOLT, FLANGE (8X45)

96300-08045-04

$1.40

26

BOLT, FLANGE (8X50)

96300-08050-04

$1.65

27

BOLT, FLANGE (6X12)

95701-06012-00

$1.84
