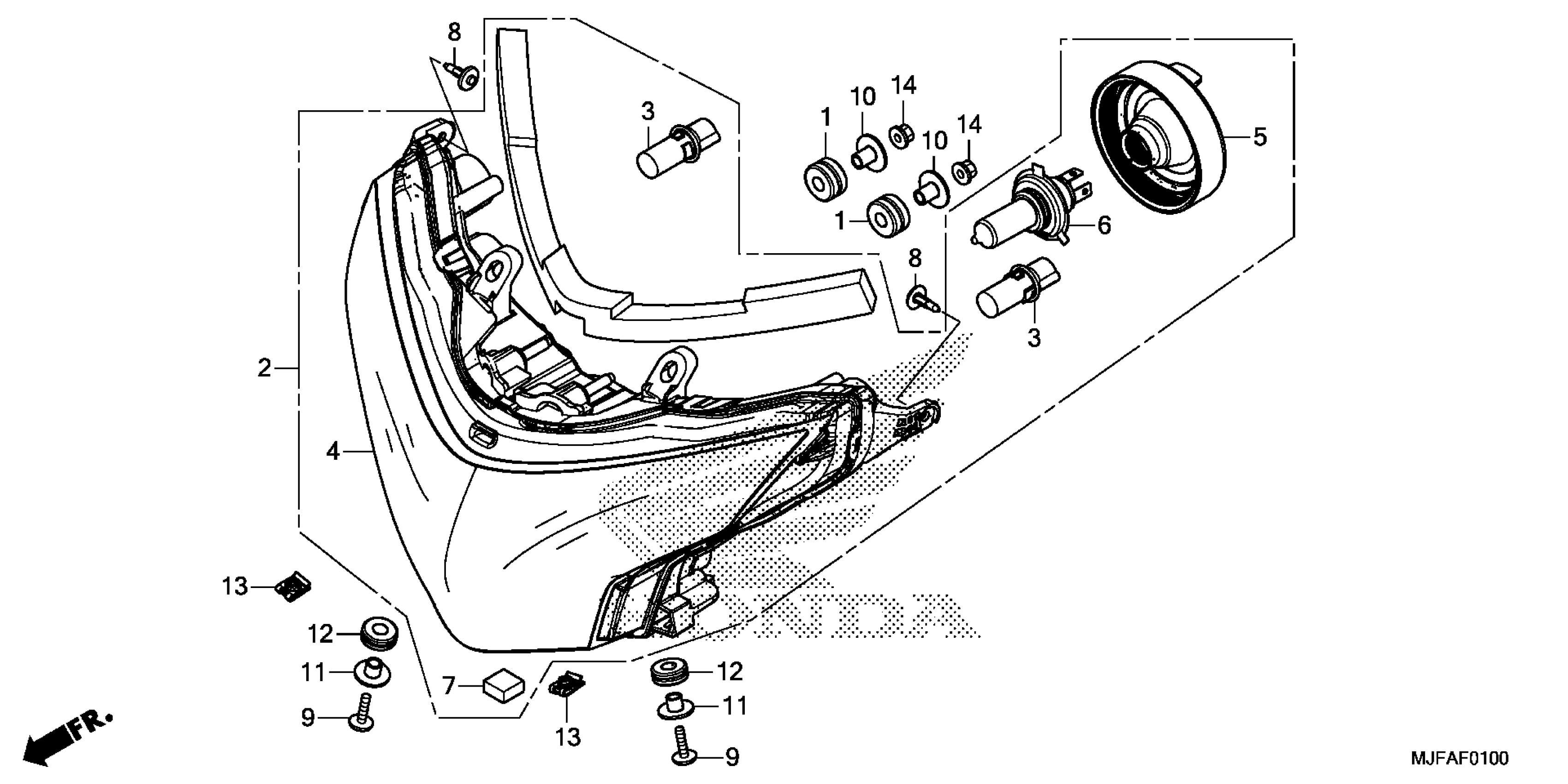

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 HEADLIGHT Diagram

#

Description

Price

1

RUBBER, AIR CLEANER HOUSING MOUNTING

17245-107-010

$2.77

2

HEADLIGHT SET (COO)

33010-MJF-305

$399.80

3

SOCKET, DUMMY

33105-MJF-A31

$8.00

4

HEADLIGHT UNIT SET (COO)

33110-KYJ-305

$132.30

4

HEADLIGHT UNIT SET (COO) This part replaces 33110-KYJ-881.

33110-KYJ-305

$132.30

5

COVER, RUBBER

33112-KWR-003

$8.84

6

BULB, HEADLIGHT (H4) (12V 60/55W) (KOITO)

34901-KWR-003

$41.02

7

RUBBER A, SIDE COVER

83605-MY5-G30

$2.38

8

RIVET, PUSH (5MM)

90116-KFK-630

$3.33

9

SCREW, PAN (5X20)

90120-MEL-000

$1.78

10

COLLAR (6.2X11)

90501-GR2-000

$5.80

11

COLLAR A, AIR CLEANER HOUSING

90501-MC4-000

$3.35

12

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.85

13

NUT, CLIP (5MM)

90677-KAN-961

$3.79

14

NUT, FLANGE (6MM)

94050-06080

$0.59
