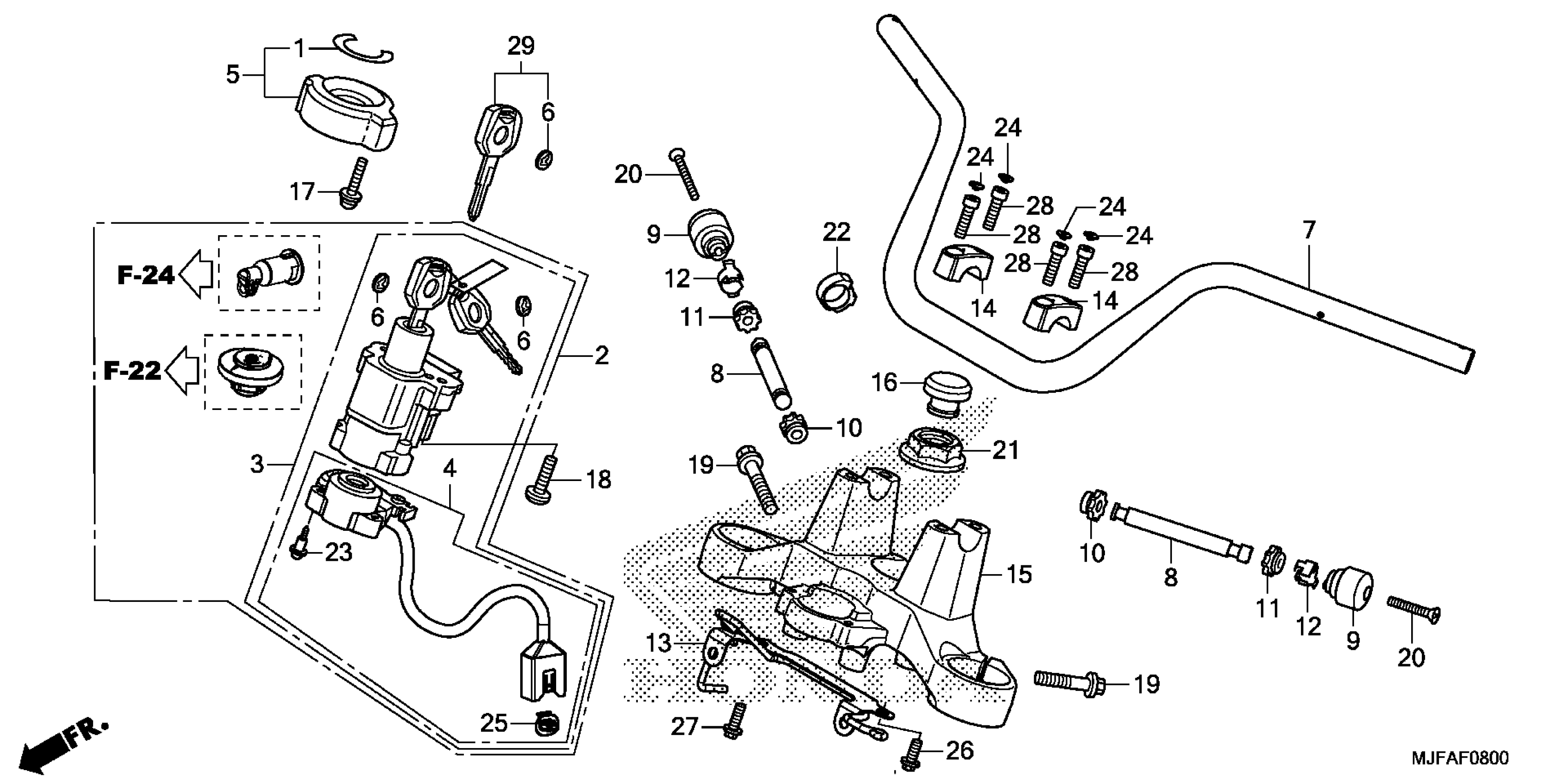

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 HANDLEBAR + TOP BRIDGE Diagram

SEAL, IGNITION SWITCH

30433-MBW-602

$2.84

LOCK SET This part replaces 35010-MJF-A00.

35010-MJF-A01

$325.69

SWITCH ASSY., COMBINATION & LOCK

35100-MJF-A01

$207.21

BASE, CONTACT

35101-MJF-A01

$94.70

COVER, COMBINATION SWITCH

35106-MAT-A00

$10.52

EMBLEM, KEY | (Optional).

35113-MFJ-D01

$2.92

HANDLEBAR *NH303M* (MAT AXIS GRAY METALLIC) | Ion blue metallic PB388M; This part replaces 53100-MJF-305ZA.

53100-MJF-A01ZA

$248.79

WEIGHT B, HANDLEBAR

53105-KV3-000

$17.27

WEIGHT, HANDLEBAR

53105-MN4-010

$21.73

RUBBER A, HANDLE WEIGHT

53106-KR3-000

$3.92

RUBBER B, HANDLE WEIGHT

53107-KM9-000

$3.90

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$6.22

GUIDE, CABLE

53111-MJF-A30

$16.00

HOLDER, HANDLE (UPPER)

53131-MJF-A00

$53.54

BRIDGE, FORK TOP

53230-MJF-A00

$276.93

CAP, STEERING STEM NUT

53232-MJ4-670

$13.43

SCREW-WASHER (5X22)

90020-MBW-610

$2.56

BOLT, ONE-WAY (8MM)

90107-MBG-000

$2.92

BOLT, FLANGE SOCKET (8X32)

90160-MGJ-D00

$4.44

SCREW, OVAL (6X65)

90191-KBG-000

$4.94

NUT, STEERING STEM FLANGE

90304-MCF-000

$10.79

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

SCREW, TAPPING (3X16)

91059-KY2-711

$2.97

CAP, SOCKET BOLT

91456-371-770

$3.47

CLIP, CONNECTOR (BLACK)

91533-MGS-D30

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, FLANGE (6X16)

96001-06016-00

$1.49

BOLT, SOCKET (8X32) This part replaces 96600-08032-00.

96600-08032-10

$2.07

BOLT, SOCKET (8X32)

96600-08032-10

$2.07

KEY, BLANK | (Optional).

35121-MGS-A31

$23.60
