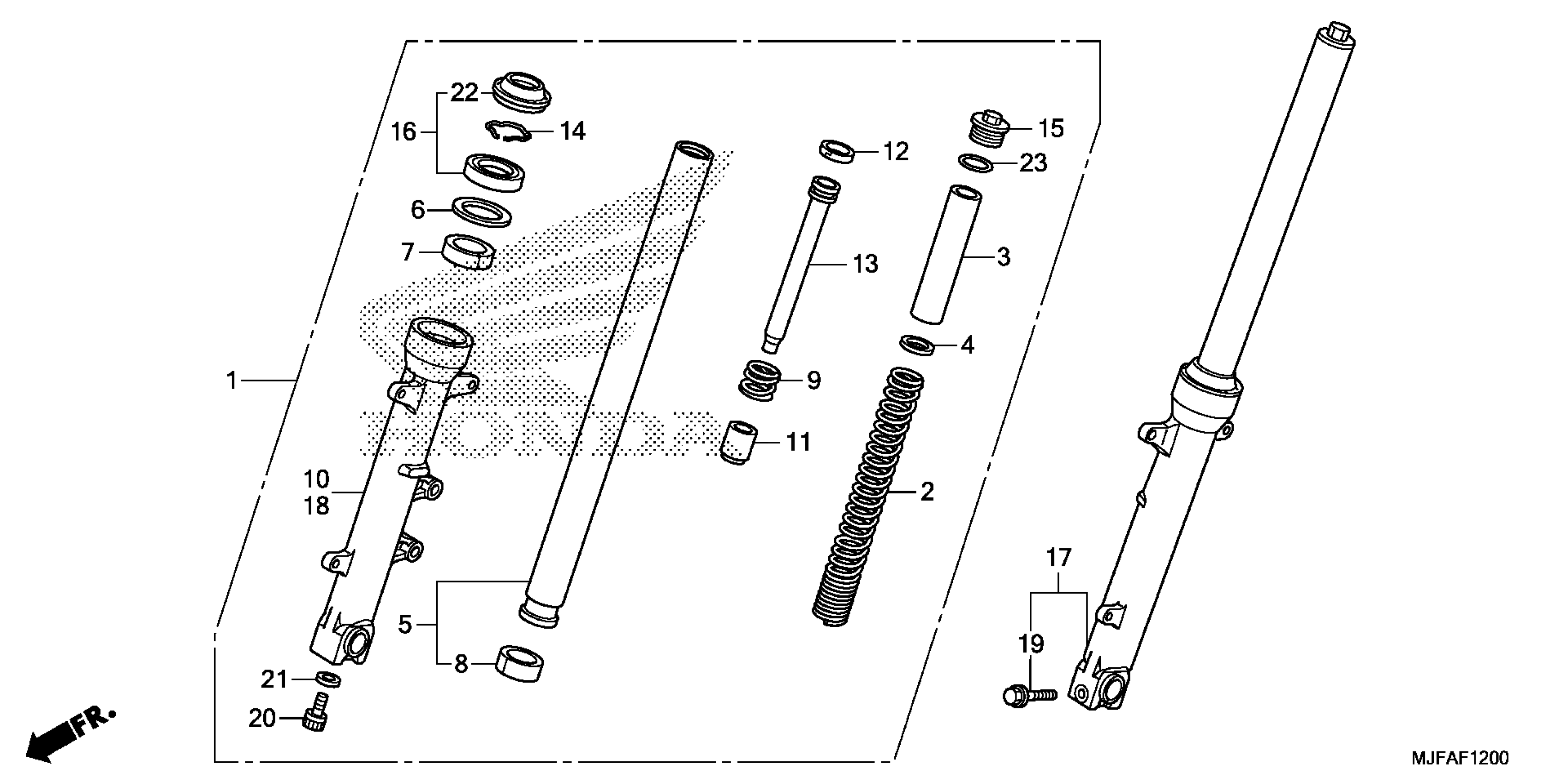

Honda CTX700A (15) CTX700, JPN, VIN# JH2RC690-FK100001 FRONT FORK Diagram

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-MJF-305.

51400-MJF-315

$775.87

FORK ASSY., R. FR. (COO) (SHOWA)

51400-MJF-315

$775.87

SPRING, FR. FORK (SHOWA)

51401-MGS-D11

$97.25

COLLAR, SPRING (SHOWA)

51402-KV3-701

$24.00

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.78

PIPE, FR. FORK (SHOWA)

51410-MGS-D31

$380.72

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.65

BUSH, GUIDE

51414-MFJ-A51

$7.25

BUSH, SLIDER

51415-MFJ-A51

$7.25

SPRING, FR. REBOUND (SHOWA)

51416-KF0-003

$7.28

CASE, R. (LOWER) (SHOWA)

51420-MGS-D31

$385.28

PIECE, OIL LOCK (SHOWA)

51432-MV9-003

$24.82

RING, PISTON

51437-MM5-003

$5.31

PIPE, SEAT

51440-MGS-D71

$49.18

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.53

BOLT, FR. FORK

51454-MM9-671

$38.35

SEAL SET, FR. FORK This part replaces 51490-MER-R61.

51490-MKA-D81

$22.76

SEAL SET, FR. FORK

51490-MKA-D81

$22.76

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-MJF-305.

51500-MJF-315

$775.87

CASE, L. (LOWER) (SHOWA)

51520-MGS-D31

$385.28

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

DUST SEAL (SHOWA)

91251-MKA-D81

$8.55

DUST SEAL (SHOWA) This part replaces 91254-MEE-D01.

91251-MKA-D81

$8.55

O-RING (33.2X2.4)

91356-KF0-003

$3.76
