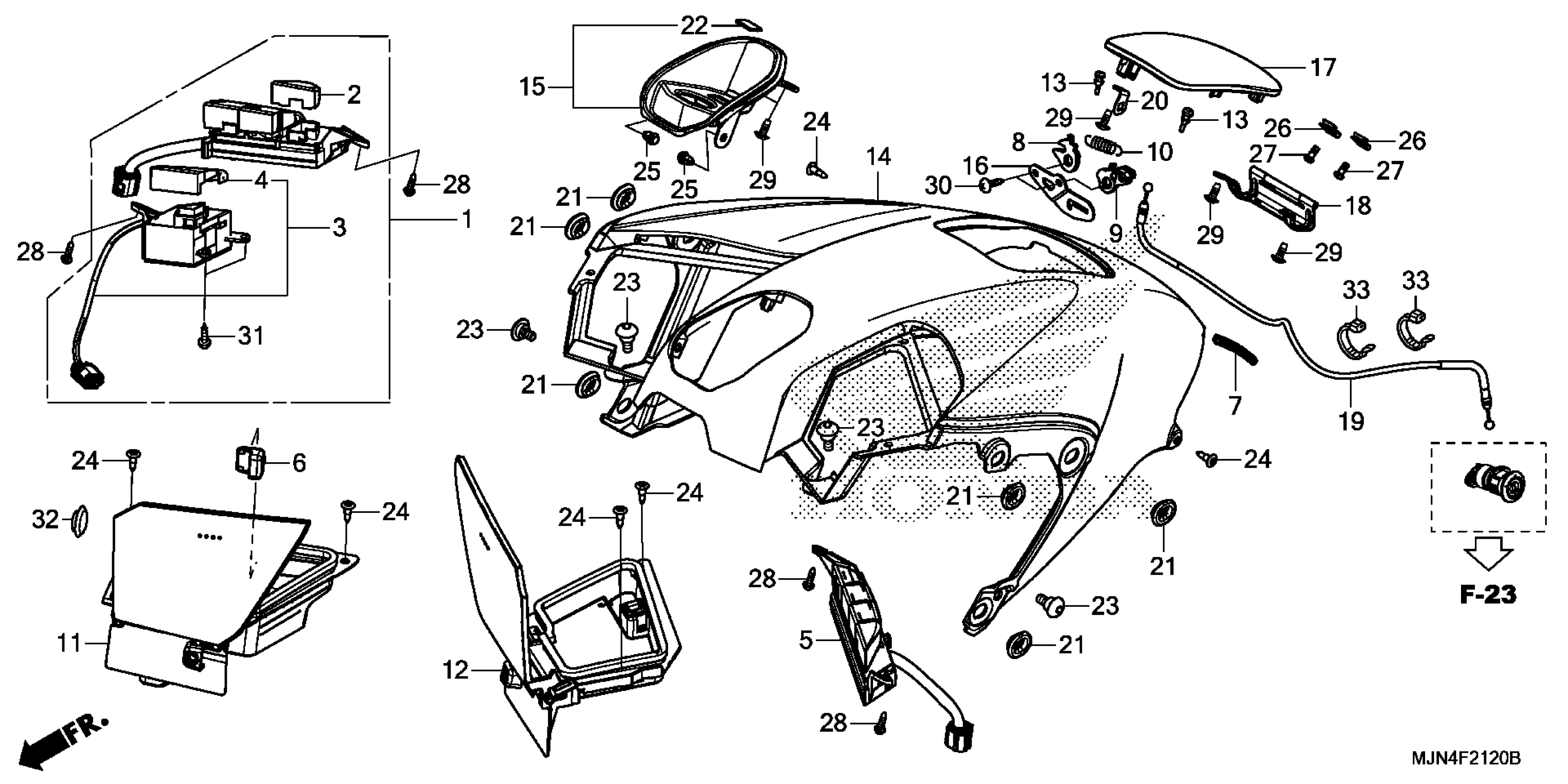

Honda CTX1300AC (14) MOTORCYCLE, JPN, VIN# JH2SC741-EK000001 TOP SHELTER Diagram

#

Description
Price

1

SWITCH ASSY., R. PANEL

35600-MJN-A02

$200.20

3

SWITCH ASSY., FOGLIGHT

35620-MJN-A01

$40.86

4

KNOB (DUMMY)

35621-MJN-A01

$4.32

5

SWITCH ASSY., L. PANEL (DUMMY)

35655-MJN-A02

$39.84

6

CLIP, USB CONNECTOR HOLDER (A)

39115-TK6-003

$1.07

7

RUBBER, PROTECTOR

64121-MCZ-000

$2.07

8

CAM A, POCKET COVER LOCK

64428-MCA-000

$2.58

9

CAM B, POCKET COVER LOCK

64429-MCA-000

$2.58

10

SPRING, POCKET LOCK CAM

64436-MCA-000

$4.36

11

POCKET ASSY., R. This part replaces 64600-MJN-A01.

64600-MJN-A02

$21.55

11

POCKET ASSY., R.

64600-MJN-A02

$21.55

12

POCKET ASSY., L. This part replaces 64650-MJN-A01.

64650-MJN-A02

$19.17

12

POCKET ASSY., L.

64650-MJN-A02

$19.17

13

RUBBER, SHELTER LID

83132-MN5-000

$2.17

14

SHELTER, TOP *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C; This part replaces 83155-MJN-A00ZA.

83155-MJN-A01ZA

$662.51

14

SHELTER, TOP *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M; This part replaces 83155-MJN-A00ZC.

83155-MJN-A01ZC

$662.51

14

SHELTER, TOP *R342C* (CANDY PROMINENCE RED)

83155-MJN-A01ZA

$662.51

14

SHELTER, TOP *PB388M* (ION BLUE METALLIC)

83155-MJN-A01ZB

$662.51

14

SHELTER, TOP *NH463M* (DARKNESS BLACK METALLIC)

83155-MJN-A01ZC

$662.51

15

COVER ASSY., FR. SHELTER

83160-MJN-A00

$20.58

16

STAY, CABLE LID

83174-MJN-A00

$3.07

17

LID, FUEL *R342C* (CANDY PROMINENCE RED) | Use up to Frame SN EK000093Candy prominence red R342C; This part replaces 83175-MJN-A00ZA.

83175-MJN-A01ZA

$26.59

17

LID, FUEL *PB388M* (ION BLUE METALLIC) | Use up to Frame SN EK000093Ion blue metallic PB388M;

83175-MJN-A00ZB

$26.81

17

LID, FUEL *NH463M* (DARKNESS BLACK METALLIC) | Use up to Frame SN EK000093Darkness black metallic NH463M; This part replaces 83175-MJN-A00ZC.

83175-MJN-A01ZC

$27.81

17

LID, FUEL *R342C* (CANDY PROMINENCE RED) | Use from Frame SN EK000094

83175-MJN-A01ZA

$26.59

17

LID, FUEL *PB388M* (ION BLUE METALLIC) | Use from Frame SN EK000094

83175-MJN-A01ZB

$26.59

17

LID, FUEL *NH463M* (DARKNESS BLACK METALLIC) | Use from Frame SN EK000094

83175-MJN-A01ZC

$27.81

18

HINGE, FUEL LID

83176-MJN-A00

$20.75

19

CABLE, LID LOCK

83177-MJN-A01

$16.32

20

PLATE, LID LOCK

83179-MJN-A00

$2.51

21

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

22

EMBLEM, PRODUCT (UEHARA)

86150-GFC-902

$2.71

23

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.36

24

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

25

CLIP, SPLASH SHIELD

90657-SB0-003

$4.90

26

NUT, CLIP (5MM)

90677-KAN-961

$3.79

27

SCREW, PAN (5X12)

93500-05012-0H

$0.83

28

SCREW, TAPPING (4X10)

93903-24220

$0.83

29

SCREW, TAPPING (4X10)

93903-24280

$1.23

30

SCREW, TAPPING (4X12)

93903-24380

Unavailable

31

SCREW, TAPPING (4X12)

93913-24220

$0.83

32

PLUG, BLIND (20MM)

95550-20000

$1.81

33

BAND, WIRE (95MM)

90650-KV6-003

$2.90

34

RUBBER, GARNISH

67113-MCT-940

$1.34
