Description

Price

1

DAMPER SET, WHEEL

06410-MCS-G00

$25.69

2

AXLE, RR. WHEEL

42301-MJN-A00

$60.20

3

COLLAR, RR. WHEEL SIDE

42311-MJN-A00

$18.77

4

FLANGE ASSY., FINAL DRIVEN

42610-MJN-A00

$262.66

5

COLLAR, RR. AXLE DISTANCE

42620-MJN-A00

$29.67

6

COLLAR A, RR. AXLE DISTANCE

42624-MCH-000

$14.43

7

WHEEL SUB-ASSY., RR. (TYPE2) (COO)

42650-MJN-305ZA

$1,055.57

8

TIRE, RR This part replaces 42711-MJN-A01.

42711-MJN-A05

$281.32

8

TIRE, RR. This part replaces 42711-MJN-A02.

42711-MJN-A04

$323.37

9

VALVE, RIM (BS)

42753-ML7-003

$12.74

9

VALVE, RIM (DUNLOP)

42753-ML7-004

$12.74

10

DISK, RR. BRAKE (TYPE2)

43351-MJN-A00ZB

$482.98

12

WEIGHT, BALANCE (10G) (TOHO ZINK)

44721-SEA-N02

$4.23

12

WEIGHT, BALANCE (20G) (TOHO ZINK)

44722-SEA-N02

$4.94

12

WEIGHT, BALANCE (30G) (TOHO ZINK)

44723-SEA-N02

$5.72

12

WEIGHT, BALANCE (5G) (TOHO ZINK)

44726-SEA-N02

$4.56

12

WEIGHT, BALANCE (15G) (TOHO ZINK)

44727-SEA-N02

$3.91

12

WEIGHT, BALANCE (25G) (TOHO ZINK)

44728-SEA-N02

$5.34

13

BOLT, DISK (8X24) (TSUKIBOSHI)

90105-MV9-003

$6.21

15

NUT, U FLANGE (18MM)

90305-MFT-641

$8.93

16

WASHER (20X31.5X2)

90401-MAS-000

$3.21

17

WASHER (20.2X44X2)

90501-MJN-A00

$4.36

18

CIRCLIP (INNER) (188)

90651-MCH-000

$17.70

19

BEARING, RADIAL BALL (6905RS)

91052-KZ4-J21

$17.35

20

BEARING, RADIAL BALL (6204UU)

91053-MGS-D31

$12.93

21

BEARING, RADIAL BALL (20X47X20.6) (NTN)

91053-MN5-003

$74.94

22

DUST SEAL (30X47X7.5)

91253-MAE-003

$15.95

23

O-RING (61X2)

91302-MA6-003

$5.17

24

O-RING (50.5X3.5) (ARAI)

91358-MG9-003

$3.76

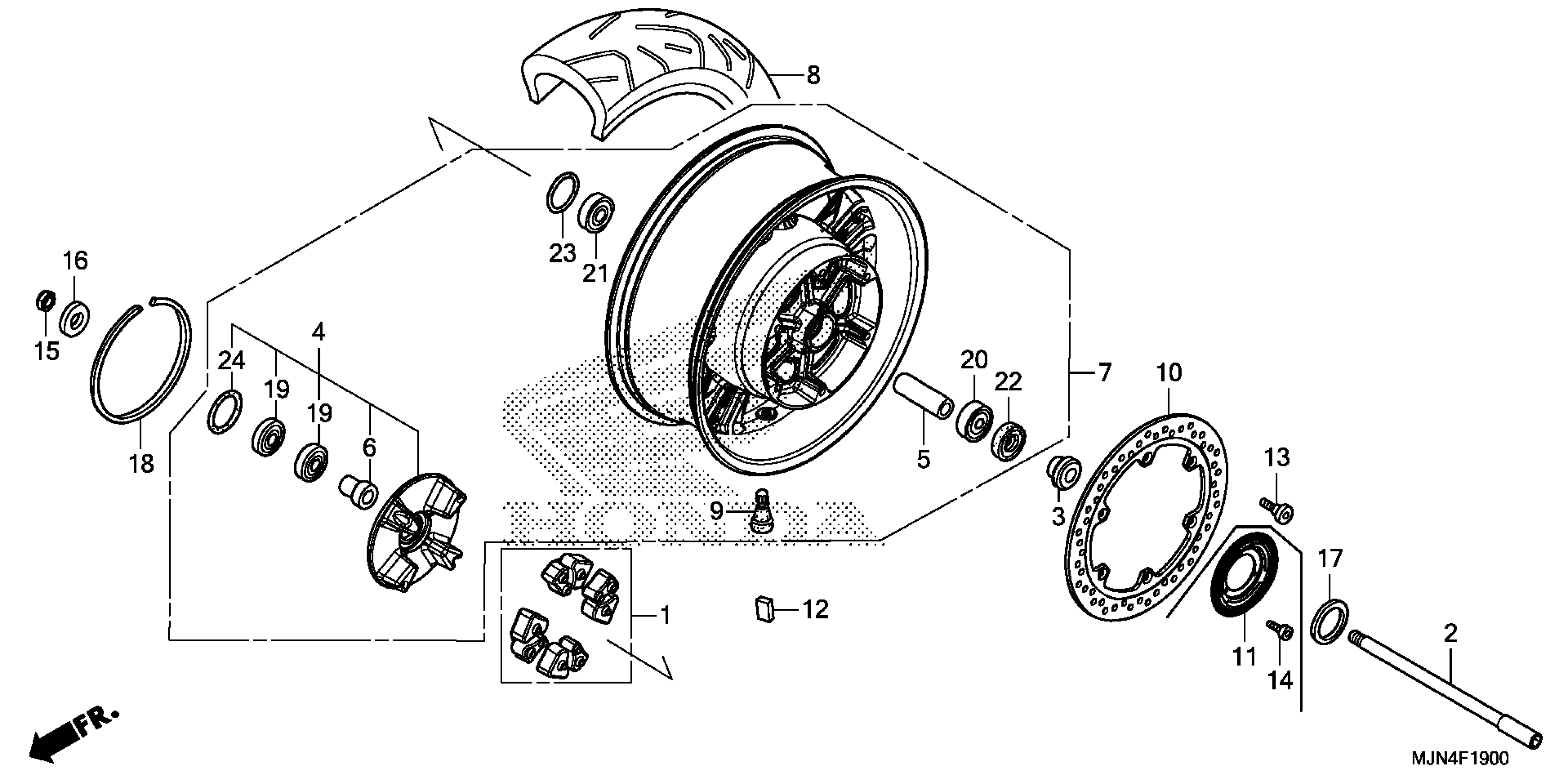

Honda CTX1300AC (14) MOTORCYCLE, JPN, VIN# JH2SC741-EK000001 REAR WHEEL Diagram
