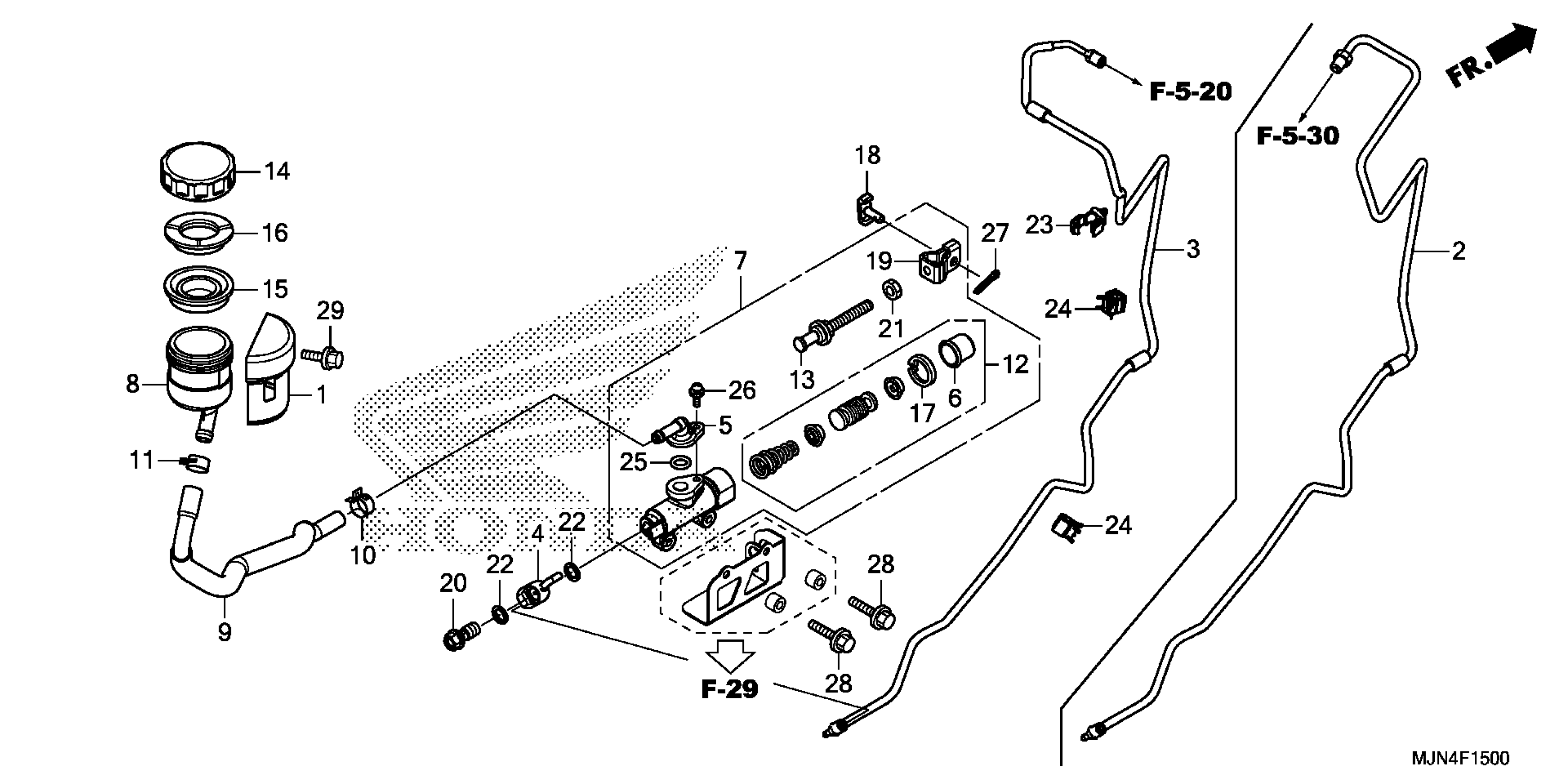

Honda CTX1300AC (14) MOTORCYCLE, JPN, VIN# JH2SC741-EK000001 REAR BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

COVER, RR. BRAKE OIL CUP

21341-MCH-000

$15.62

2

PIPE A, RR. BRAKE

43310-MJN-A00

$37.41

4

JOINT, BRAKE PIPE

43323-MFL-D01

$27.58

5

CONNECTOR, MASTER CYLINDER

43503-MER-D01

$7.04

6

BOOT

43504-MB2-006

$9.01

7

MASTER CYLINDER SUB-ASSY., RR. BRAKE

43510-MJN-A01

$171.59

8

CUP, MASTER CYLINDER OIL

43511-MGE-016

$20.51

9

HOSE, RR. MASTER CYLINDER

43512-MJN-A01

$29.42

10

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

11

CLAMP, MASTER CYLINDER OIL HOSE

43514-MN9-006

$13.91

12

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MG9-315

$54.74

13

ROD, PUSH (NISSIN)

43530-MN5-006

$26.70

14

CAP, OIL CUP

45513-MEL-D21

$16.55

15

DIAPHRAGM

45520-300-000

$8.13

16

PLATE, DIAPHRAGM

45521-MJ6-006

$3.77

17

CIRCLIP

46182-MEL-D21

$1.77

18

PIN, BRAKE ROD

46503-MAL-000

$5.46

19

JOINT, BRAKE ROD

46504-MAL-601

$12.20

20

BOLT, OIL (10X22)

90145-MS9-612

$6.82

21

NUT, HEX. (8MM)

90301-MEH-006

$1.39

22

WASHER, OIL BOLT

90545-300-000

$3.72

23

CLAMP, BRAKE PIPE (7.0)

90661-MGS-D71

$5.03

24

CLAMP, BRAKE PIPE (7.0)

90662-MGS-D81

$2.77

25

O-RING (14.8X2.4)

91212-422-006

Unavailable

26

SCREW-WASHER (4X12)

93893-04012-07

$1.22

26

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

27

PIN, SPLIT (2.0X15)

94201-20150

$0.94

28

BOLT, FLANGE (6X28)

96300-06028-04

$0.84

29

BOLT, SOCKET (6X16)

96600-06016-07

$1.58
