Description

Price

1

PUMP SET, FUEL (MSDS)

16600-MJN-A02

$685.77

2

JOINT, BREATHER TUBE

17359-419-670

$1.95

4

TANK SET, FUEL

17500-MJN-A00

$1,293.69

5

TRAY, FUEL TANK

17507-MJN-A00

$9.72

6

TUBE A, DRAIN

17508-MJN-A00

$19.10

9

HOSE, FUEL FEED

17528-MJN-A02

$143.93

10

COLLAR, FR. TANK SETTING

17535-MFL-000

$3.47

11

RUBBER, R. FR. TANK MOUNTING

17545-MFL-000

$3.12

12

COVER, CONNECTOR GUARD

17555-MJN-A01

$4.56

14

GASKET, BASE

17574-MCF-000

$15.92

15

CAP, FUEL FILLER

17670-MJN-A01

$66.57

16

RUBBER, MUFFLER MOUNTING

18421-KV3-950

$3.30

17

COLLAR, TANK MOUNT

18422-MJN-A00

$4.90

18

FUEL UNIT

37800-MJN-A01

$126.20

19

RUBBER B, SEAT SETTING

77205-286-000

$5.28

20

CLIP, HARNESS

83705-MZ7-300

$7.18

21

BOLT, SPECIAL (6X25)

90115-MAS-E00

$3.65

22

NUT, CAP (6MM)

90201-415-000

$2.05

23

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

24

O-RING (39.5X5)

91305-MC7-000

$3.31

25

NUT, FLANGE (6MM)

94050-06080

$1.49

26

WASHER, PLAIN (8MM)

94103-08800

$1.49

28

BOLT, FLANGE (8X45)

95801-08045-00

$1.80

29

RUBBER, FUEL TANK

17425-MJN-A00

$90.36

30

SEAL, WATERPROOF

17426-MJN-A00

$5.66

31

TAPE, TANK PROTECTOR

17515-MEG-300

$3.16

32

RUBBER, L. FR. TANK MOUNTING

17533-MFL-000

$5.16

33

TRIM, FUEL TANK | Use from Frame SN EK000005

17523-MEA-670

$2.92

33

RUBBER, PROTECTOR | Use up to Frame SN EK000004

64121-MCJ-750

$3.36

34

FILTER ASSY., FUEL

16730-MJN-A01

$50.85

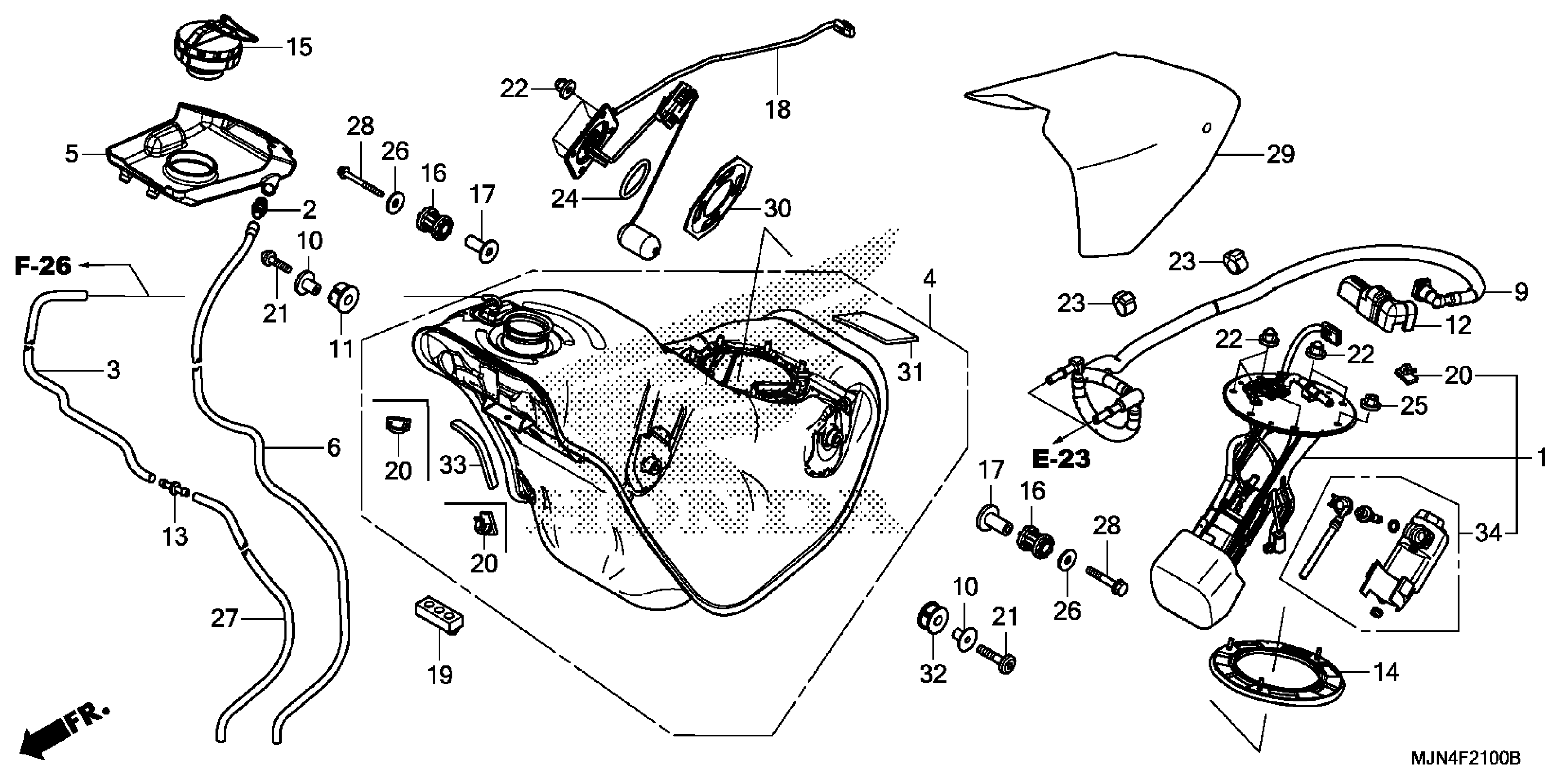

Honda CTX1300AC (14) MOTORCYCLE, JPN, VIN# JH2SC741-EK000001 FUEL TANK Diagram
