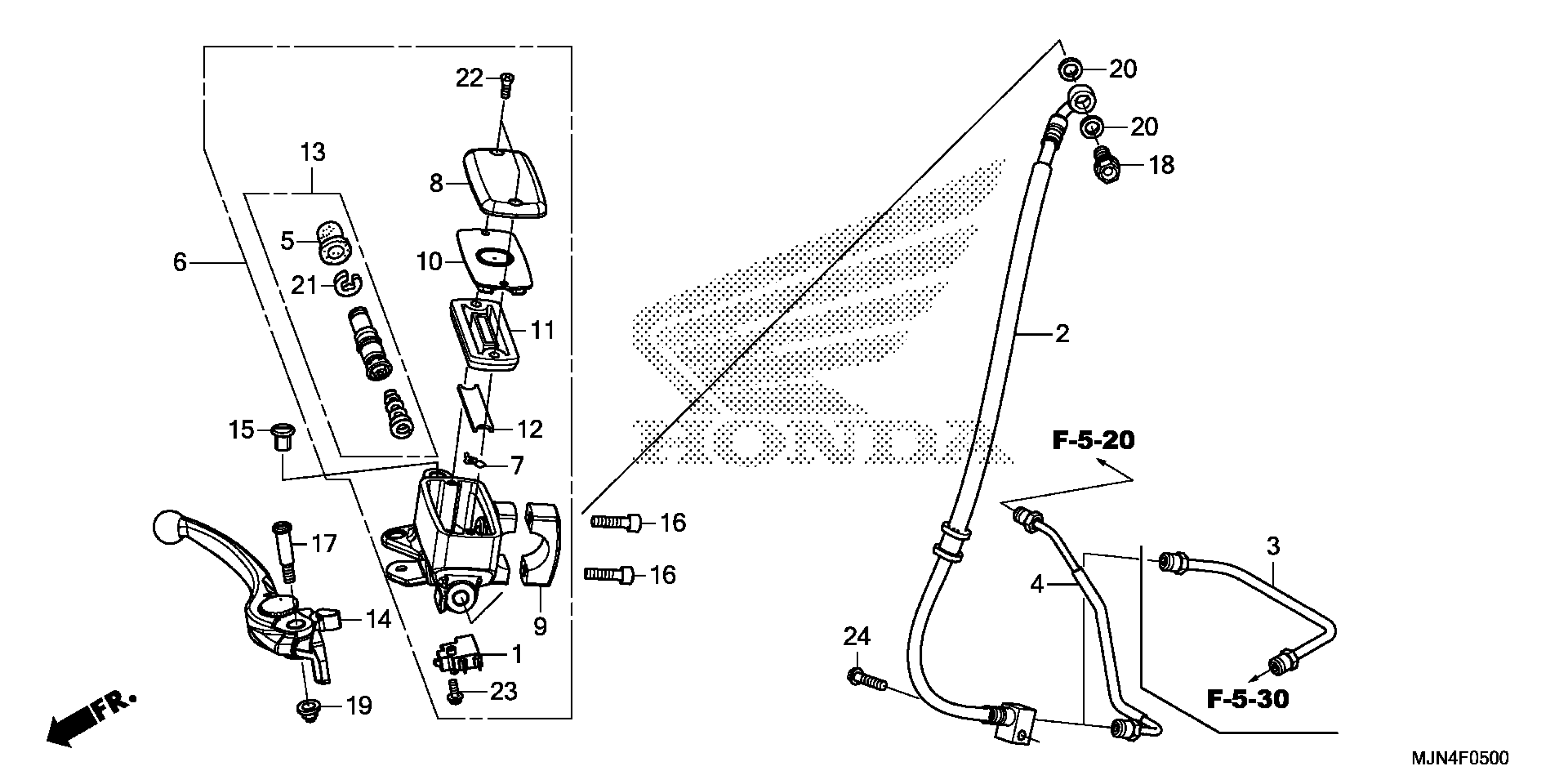

Honda CTX1300AC (14) MOTORCYCLE, JPN, VIN# JH2SC741-EK000001 FRONT BRAKE MASTER CYLINDER Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

HOSE A, FR. BRAKE

45125-MJN-A01

$57.20

3

PIPE A, FR. BRAKE

45126-MJN-A00

$12.56

5

BOOT

45504-410-003

$12.16

6

MASTER CYLINDER SUB-ASSY., FR.

45510-MJN-A01

$281.62

6

MASTER CYLINDER SUB-ASSY., FR. (COO)

45510-MJN-305

$279.92

7

PROTECTOR

45512-MA6-006

$4.28

8

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$22.41

9

HOLDER, MASTER CYLINDER (NISSIN)

45517-MAV-751

$20.71

10

PLATE, DIAPHRAGM

45518-MM5-006

$10.65

11

DIAPHRAGM

45520-MM5-006

$15.12

12

FLOAT, FR. MASTER CYLINDER (NISSIN)

45523-MN5-006

$4.49

13

MASTER CYLINDER SET

45530-MA4-671

$47.76

14

LEVER, R. HANDLE This part replaces 53170-MJN-305.

53170-MJN-A01

$47.34

15

PLUG, HANDLE LEVER BRACKET

53174-116-670

$2.48

15

PLUG, HANDLE LEVER BRACKET This part replaces 53174-463-770.

53174-116-670

$2.48

16

BOLT, SOCKET (6X22)

90101-MCL-000

$1.49

17

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.43

18

BOLT, OIL (10X22)

90145-MS9-612

$7.54

19

NUT, CAP (6MM)

90201-415-000

$2.05

20

WASHER, OIL BOLT

90545-300-000

$3.99

21

CIRCLIP

90651-MA5-671

$2.66

22

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

22

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

23

SCREW-WASHER (4X12)

93893-04012-07

$1.49

23

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

24

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
