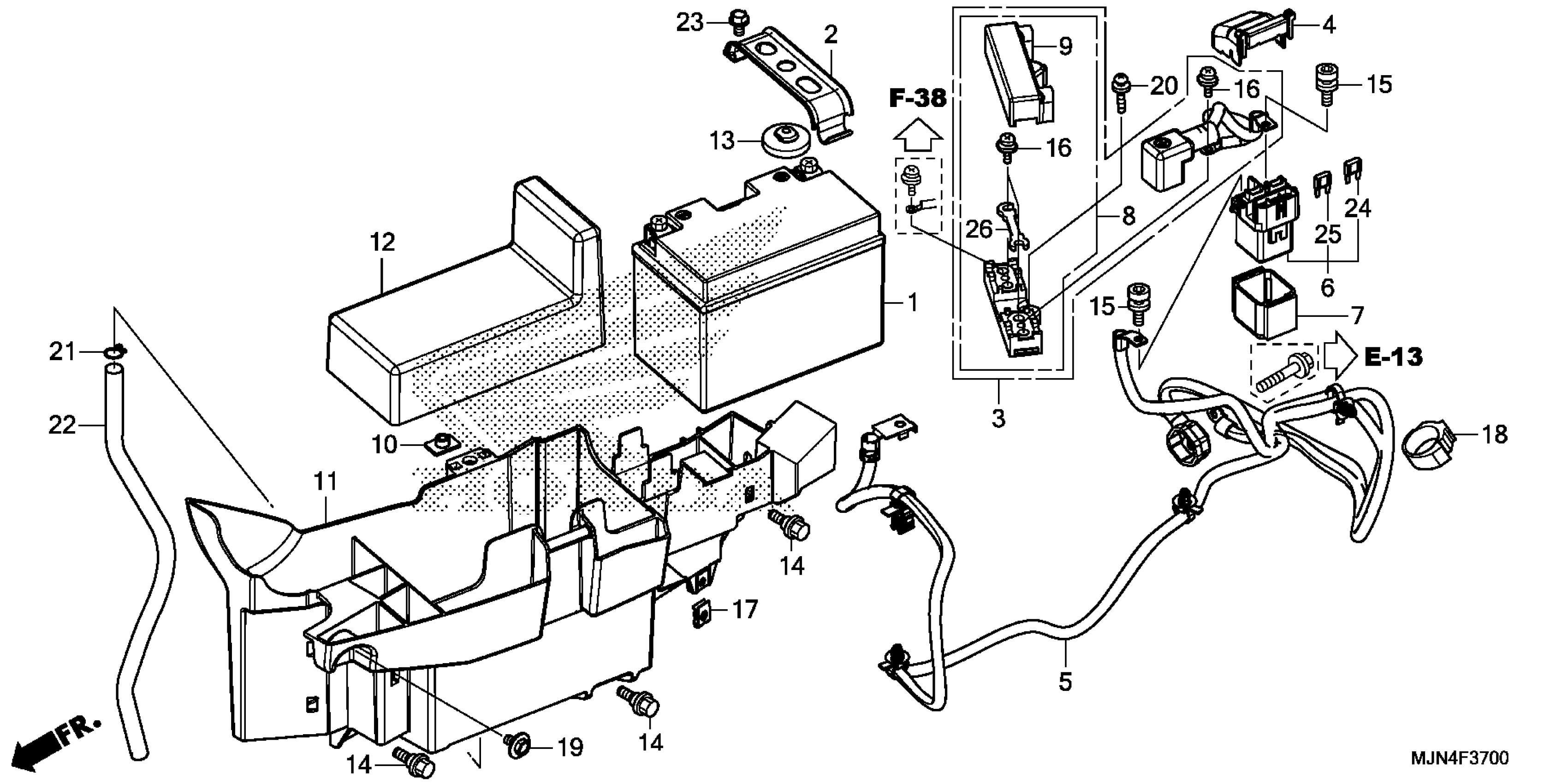

Honda CTX1300AC (14) MOTORCYCLE, JPN, VIN# JH2SC741-EK000001 BATTERY Diagram

BATTERY (YTZ14S) (YUASA) (MSDS) This part replaces 31500-MCR-D02AH.

31500-MCR-D03

$196.34

BAND, BATTERY

31501-MJN-A00

$8.15

CABLE, STARTER BATTERY

32401-MJN-A00

$71.44

COVER, STARTER MAGNETIC SWITCH | Use up to Frame SN EK001176

32406-MFT-641

$4.51

COVER, STARTER MAGNETIC SWITCH | Use from Frame SN EK001177 This part replaces 32406-MJN-A00.

32406-MJN-A01

$4.59

COVER, STARTER MAGNETIC SWITCH | Use from Frame SN EK001177

32406-MJN-A01

$4.59

CABLE, STARTER & GROUND

32410-MJN-A00

$56.25

SWITCH ASSY., STARTER MAGNETIC

35850-MFT-641

$86.48

SWITCH ASSY., STARTER MAGNETIC

35850-MJN-A00

$88.28

RUBBER, SHOCK

35856-KAB-000

$9.30

BOX ASSY., REVERSE FUSE

38260-MN5-003

$26.62

COVER, FUSE BOX

38265-MN5-003

$6.34

NUT, SPECIAL (6X7)

61304-958-003

$3.24

STAY, L. SUPPORT

64560-MJN-A00

$141.03

SPACER, BATTERY

64570-MJN-A00

$59.75

RUBBER, BATTERY BOX

83618-GF0-751

$3.95

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

SCREW-WASHER (5X10)

90153-SB2-003

$5.19

NUT, CLIP (5MM)

90677-KAN-961

$4.07

CLIP, CABLE (25MM)

90690-GHB-671

$2.18

BOLT-WASHER (6X12)

93404-06012-00

$1.55

SCREW-WASHER (6X20)

93891-06020-08

$1.80

CLIP, TUBE (C11)

95002-70000

$1.56

TUBE (6.5X370) (NOT AVAILABLE)

95005-65370-20

Unavailable

BOLT, FLANGE (6X10)

95701-06010-00

$1.49

FUSE, MINI (15A)

98200-41500

$1.49

FUSE, MINI (30A)

98200-43000

$1.67

FUSE (65A)

98200-66500

$2.30
