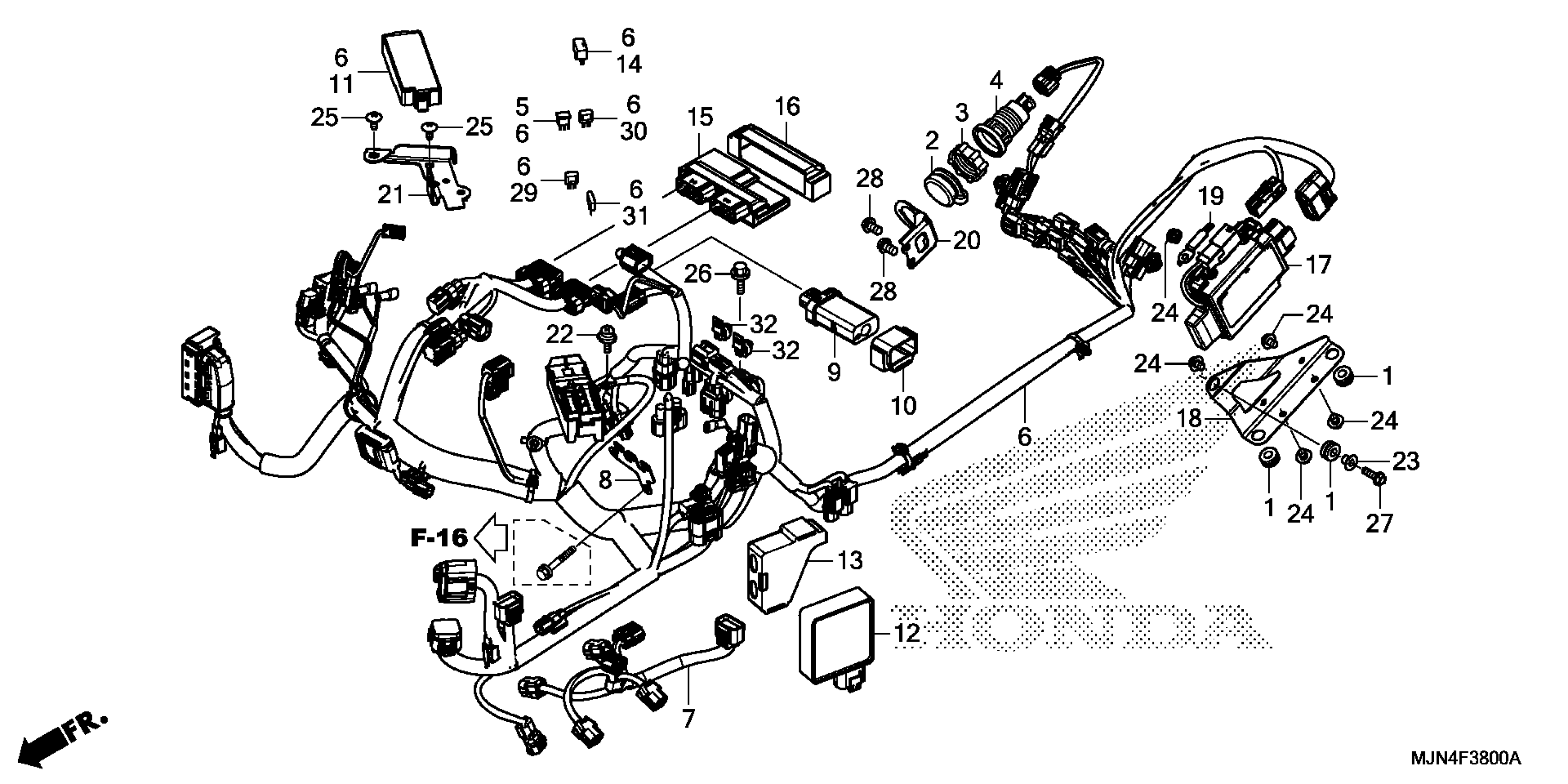

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 WIRE HARNESS Diagram

#

Description
Price

1

RUBBER A, PROTECTOR

18320-196-000

$2.67

5

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

6

WIRE HARNESS

32100-MJN-A10

$1,202.66

7

SUB-HARNESS, INJECTOR

32103-MJN-A00

$134.92

8

STAY, CONNECTOR

32106-MJN-A00

$5.15

11

COVER (UPPER)

38252-MFJ-D01

$11.24

12

RELAY, TURN SIGNAL (LED)

38301-MJN-A11

$201.51

13

CUSHION, TURN SIGNAL RELAY

38306-MGH-640

$6.18

14

RELAY (MICRO ISO 4P) This part replaces 38501-MEL-003.

38501-MKP-DN1

$4.80

15

PGM-FI UNIT

38770-MJN-A12

$1,193.05

16

SUSPENSION, PGM-FI UNIT

38771-MJN-A00

$10.36

17

AUDIO UNIT (BLUETOOTH)

39110-MJN-A11

$1,347.41

18

STAY, AUDIO UNIT

39150-MJN-A10

$21.64

19

STAY, USB CORD CONNECTOR

39155-MJN-A10

$3.15

21

STAY, FUSE BOX

64530-MJN-A00

$16.74

22

SCREW-WASHER (5X10)

90153-SB2-003

$5.19

23

COLLAR, SIDE COVER SETTING

90522-KF0-000

$4.48

24

SCREW-WASHER (5X8)

93893-05008-08

$1.49

25

SCREW, TAPPING (5X12)

93903-25210

$1.49

26

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

27

BOLT, FLANGE (6X20)

95701-06020-00

$1.55

29

FUSE, MINI (10A)

98200-41000

$1.49

30

FUSE, MINI (20A)

98200-42000

$1.49

31

FUSE, MINI (30A)

98200-43000

$1.67

32

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13
