Description

Price

1

JOINT, FUEL TUBE

16961-MK7-000

$21.68

2

CLIP, TUBE

17450-KY7-740

$2.83

3

THERMOSTAT

19300-MBT-003

$49.22

4

CASE, THERMOSTAT

19310-MJN-A00

$84.49

5

COVER, THERMOSTAT

19315-MCS-010

$22.77

6

CLAMP, HOSE (25MM)

19504-KT7-751

$5.41

7

HOSE, R. WATER

19504-MCS-010

$6.98

8

HOSE A, WATER

19505-MJN-A00

$7.92

9

HOSE, L. WATER

19506-MCS-010

$6.98

10

CLAMP, RADIATOR HOSE

19507-MAT-000

$10.76

11

CLAMP, BREATHER HOSE

19507-MK4-620

$9.43

12

HOSE C, WATER

19508-MJN-A00

$9.84

13

JOINT, R. WATER

19510-MCS-000

$22.98

14

HOSE F, WATER

19512-MJN-A00

$30.56

15

HOSE E, WATER

19513-MJN-A00

$35.74

16

CLAMP, HOSE (22-29MM)

19517-ML7-691

$11.62

17

JOINT, L. WATER

19520-MCS-000

$22.98

18

HOSE B, WATER

19522-MJN-A00

$8.54

19

HOSE G, WATER

19528-MJN-A00

$38.74

20

CONNECTOR, GROUND

32152-MB3-000

$1.93

21

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$30.74

22

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

23

O-RING (21.2X2.4) (ARAI) This part replaces 91331-MCP-900.

91331-PC9-003

$3.13

24

O-RING (43.5X2)

91361-MCS-A10

$2.11

25

CLAMP, TUBE (D12.5)

95002-41250-08

$2.34

26

BOLT, FLANGE (6X22)

96001-06022-00

$1.49

27

BOLT, FLANGE (6X25)

96001-06025-00

$2.00

28

BOLT, FLANGE (6X40)

96001-06040-00

$2.16

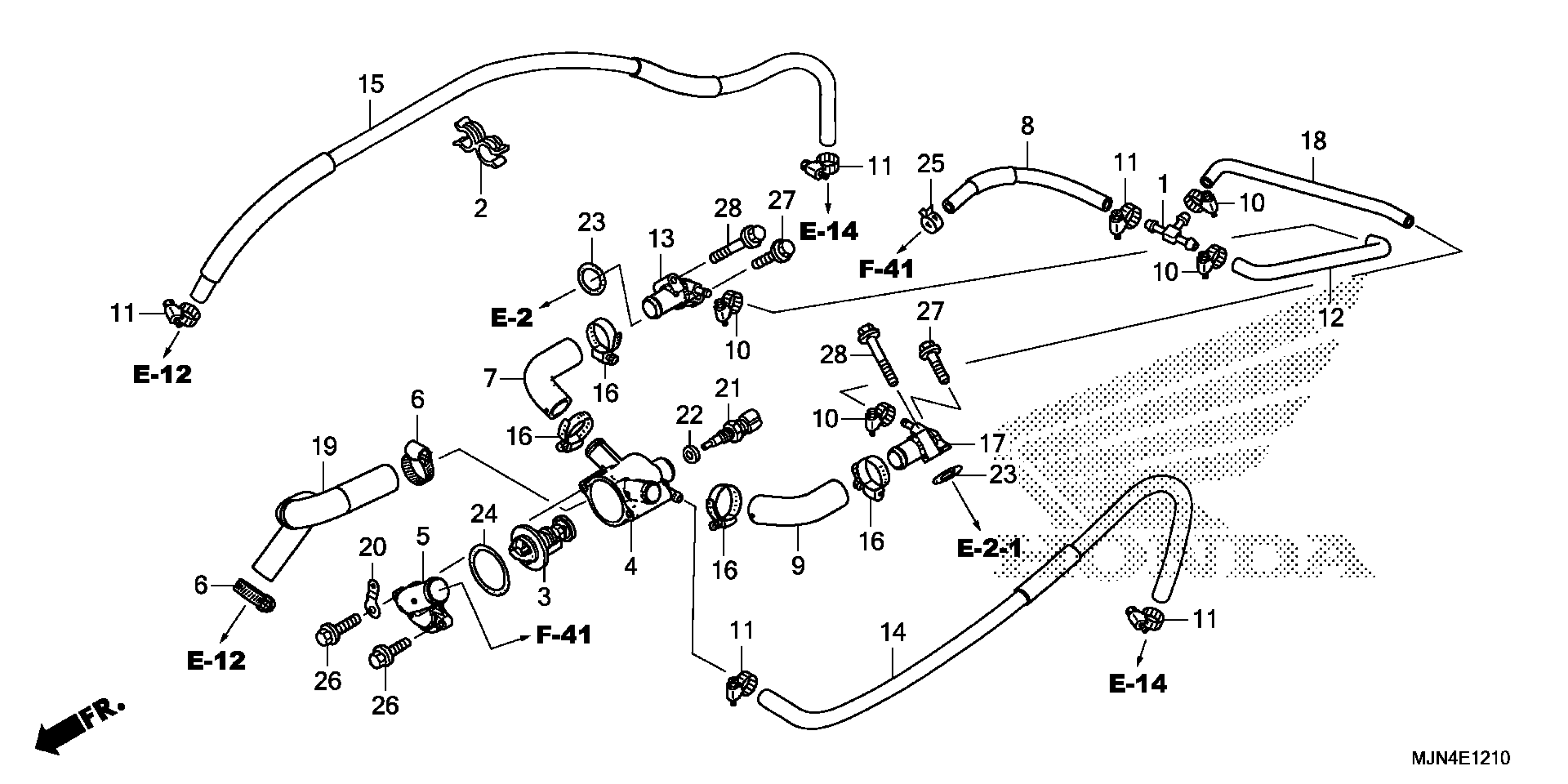

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 WATER PIPE Diagram
