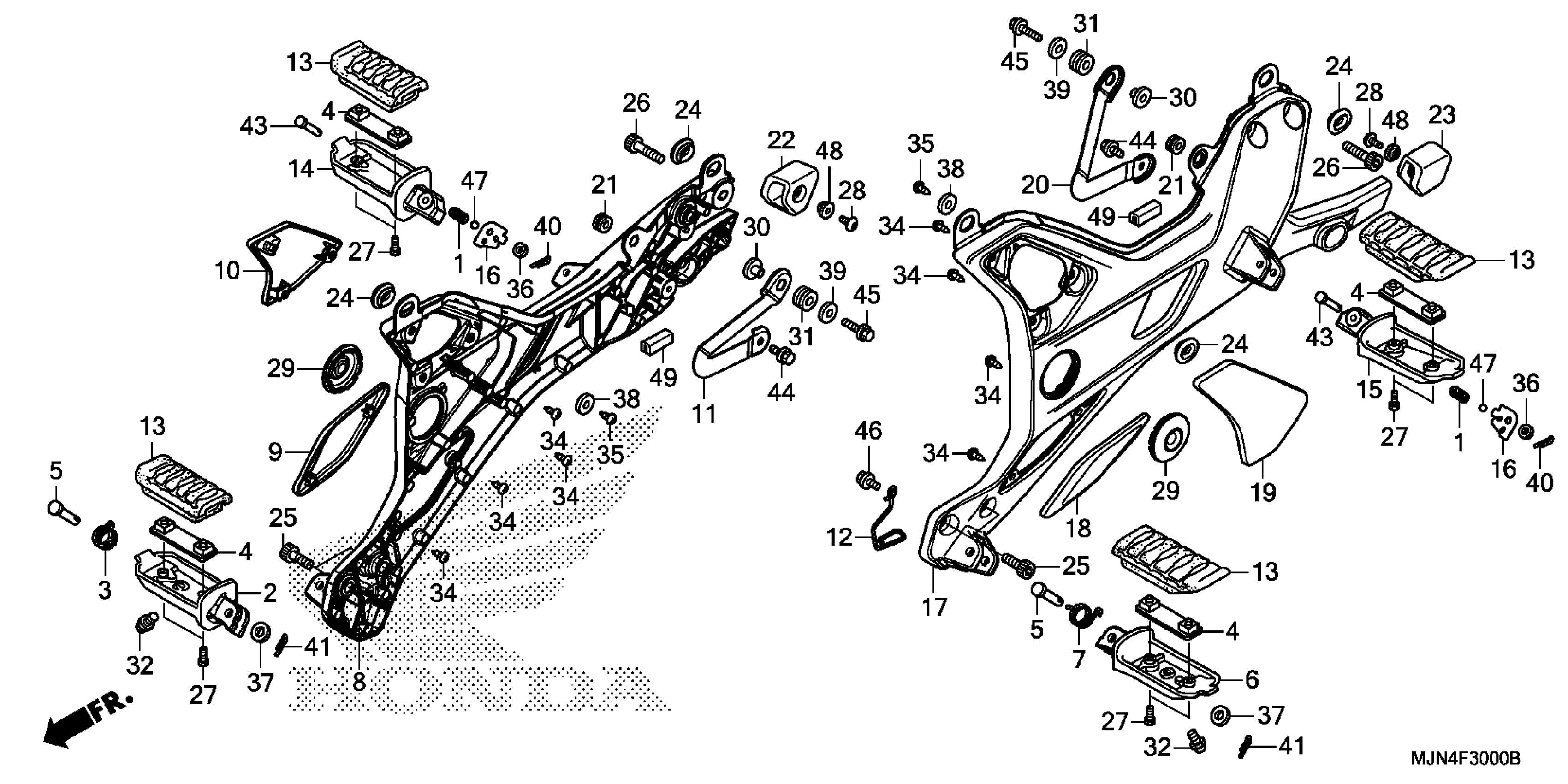

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 STEP Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

ARM, R. STEP (COO)

50612-MT3-305

$41.44

3

SPRING, R. STEP RETURN

50617-MJN-A00

$5.35

4

PLATE, STEP SETTING

50619-MT3-000

$11.03

5

PIN, STEP BAR

50639-ML0-010

$4.84

6

ARM, L. STEP (COO)

50642-MT3-305

$41.44

7

SPRING, L. STEP RETURN

50644-MJN-A00

$5.12

8

HOLDER, R. STEP *NH1* (BLACK)

50650-MJN-A00ZA

$332.34

9

GUARD, R. HEEL *NH1* (BLACK)

50651-MJN-A00ZB

$3.43

10

GUARD, R. STEP HEAT *NH1* (BLACK)

50652-MJN-A00ZA

$9.18

11

STAY, R. MUFFLER SUPPORT

50655-MJN-A00

$15.82

12

GUIDE, TUBE

50660-MJN-A00

$5.03

13

RUBBER, STEP (COO)

50661-MT3-305

$6.91

14

BAR, R. PILLION STEP (COO)

50711-MT3-305

$54.18

15

BAR, L. PILLION STEP (COO)

50712-MT3-305

$50.75

16

PLATE, PILLION STEP CLICK

50718-MT3-000

$4.29

17

HOLDER, L. STEP *NH1* (BLACK)

50750-MJN-A00ZA

$332.34

18

GUARD, L. HEEL *NH1* (BLACK)

50751-MJN-A00ZB

$3.43

19

GUARD, L. STEP HEAT *NH1* (BLACK)

50752-MJN-A00ZA

$9.18

20

STAY, L. MUFFLER SUPPORT

50755-MJN-A00

$13.66

21

GROMMET, IGNITION COVER

53133-KR1-760

$4.07

22

RUBBER, R. STEP

81520-MJN-A00

$7.91

23

RUBBER, L. STEP

81570-MJN-A00

$7.91

24

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

$5.38

25

BOLT, SOCKET (8X25)

90102-MN8-700

$3.96

26

BOLT, SOCKET (8X34)

90112-MBR-J10

$2.87

27

BOLT, MAIN STEP RUBBER SETTING

90115-MT3-000

$2.50

28

BOLT, SOCKET (5X12)

90154-MEE-D00

$1.71

29

CAP B, PIVOT

90306-MBR-000

$20.25

30

COLLAR A, AIR CLEANER HOUSING

90501-MC4-000

$3.40

31

GROMMET A, AIR CLEANER HOUSING

90505-MC4-000

$2.92

32

BOLT, CAP (8X12)

92501-08012-0A

$2.82

33

SCREW, PAN (4X10)

93500-04010-0A

$0.90

34

SCREW, TAPPING (4X8)

93903-24180

$0.82

35

SCREW, TAPPING (4X10)

93903-24280

Unavailable

36

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

36

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

36

WASHER, PLAIN (6MM)

94101-06800

Unavailable

37

WASHER, PLAIN (8MM)

94101-08000

Unavailable

38

WASHER, PLAIN (4MM)

94103-04800

$0.91

39

WASHER, PLAIN (6MM)

94103-06800

$0.72

40

PIN, SPLIT (1.6X12)

94201-16120

$1.04

41

PIN, SPLIT (2.0X15)

94201-20150

$1.04

42

CLIP (4X40)

94591-44000

$2.13

43

PIN C, PILLION STEP

95015-83000

$2.22

44

BOLT, FLANGE (6X14)

95701-06014-08

$1.63

45

BOLT, FLANGE (6X25)

95801-06025-08

$1.79

46

BOLT, FLANGE (6X12)

96001-06012-00

$1.79

47

BALL, STEEL (#8) (1/4)

96211-08000

Unavailable

48

COLLAR (5X2.3)

90514-MGH-640

$3.50

49

PROTECTOR, RUBBER

77212-MFJ-D00

$1.60
