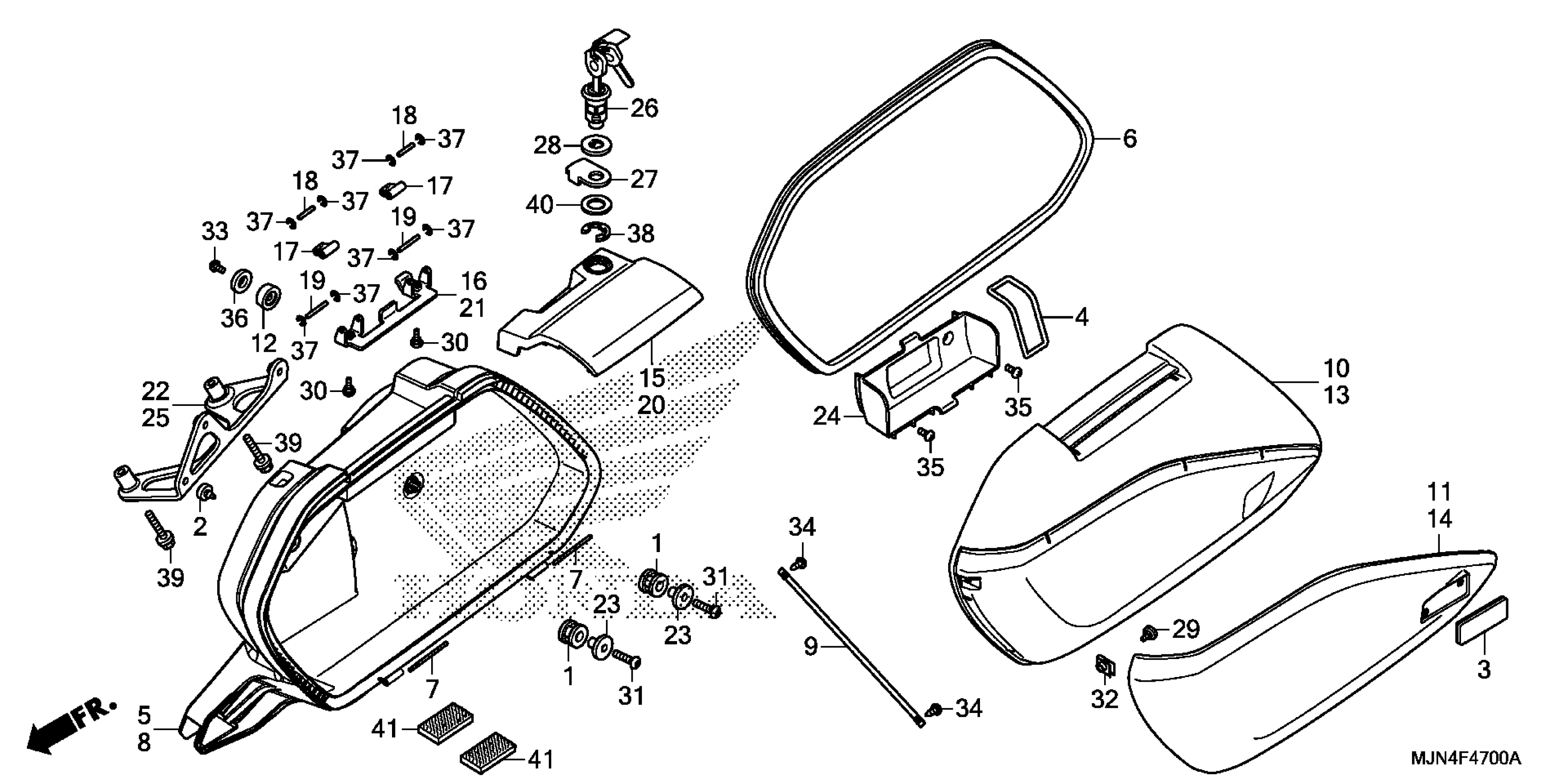

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 SADDLEBAG Diagram

#

Description
Price

1

RUBBER, L. FR. TANK MOUNTING

17533-MEL-000

$3.48

2

RUBBER, STOPPER (NOT AVAILABLE)

33707-HA0-000

Unavailable

3

REFLECTOR, REFLEX

33741-MZ7-003

$20.87

4

BAND B, TOOL

50291-MCW-D00

$8.43

5

BASE, R. SADDLEBAG

81210-MJN-A00

$1,179.53

6

SEAL, SADDLEBAG

81220-MJN-A00

$52.90

7

PIN, HINGE

81230-MJN-A00

$4.97

8

BASE, L. SADDLEBAG

81260-MJN-A00

$1,232.50

9

BAND, LUGGAGE STOPPER

81280-MGS-D30

$14.68

10

LID, R. SADDLEBAG

81310-MJN-A00

$768.41

11

COVER, R. SADDLEBAG *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

81320-MJN-A00ZA

$252.49

11

COVER, R. SADDLEBAG *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

81320-MJN-A00ZB

$246.54

11

COVER, R. SADDLEBAG *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

81320-MJN-A00ZC

$246.54

12

CUSHION, SADDLEBAG

81327-MT3-000

$4.29

13

LID, L. SADDLEBAG

81360-MJN-A00

$803.18

14

COVER, L. SADDLEBAG *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

81370-MJN-A00ZA

$252.49

14

COVER, L. SADDLEBAG *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

81370-MJN-A00ZB

$246.54

14

COVER, L. SADDLEBAG *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

81370-MJN-A00ZC

$246.54

15

LEVER, R. SADDLEBAG

81410-MJN-A00

$41.13

16

BRACKET, R. LID LOCK

81420-MJN-A00

$21.59

17

LINK, LID LOCK

81430-MJN-A00

$3.96

18

SHAFT, LEVER

81435-MJN-A00

$2.37

19

SHAFT, LID LOCK

81440-MJN-A00

$2.85

20

LEVER, L. SADDLEBAG

81460-MJN-A00

$42.15

21

BRACKET, L. LID LOCK

81470-MJN-A00

$21.59

22

BRACKET, R. SADDLEBAG

81510-MJN-A00

$134.26

23

COLLAR, SADDLEBAG

81512-MJN-A00

$5.84

24

BOX, TOOL

81540-MJN-A00

$48.78

25

BRACKET, L. SADDLEBAG

81560-MJN-A00

$134.26

26

KEY, SADDLEBAG LOCK (WAVE)

81600-MJN-A01

$28.78

26

KEY, SADDLEBAG LOCK (WAVE) This part replaces 81600-MJN-A02.

81600-MJN-A01

$28.78

27

PLATE, CAM

81611-MJN-A01

$3.81

28

PLATE, SPRING

81612-MJN-A01

$4.24

29

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.40

30

BOLT, SPECIAL (6MM)

90127-MCP-900

$1.66

31

BOLT, SOCKET (8X32)

90136-MBB-000

$3.46

32

NUT, CLIP (5MM)

90677-KAN-961

$3.89

33

SCREW, TAPPING (4X8)

93903-24180

$0.76

34

SCREW, TAPPING (4X12)

93903-24380

Unavailable

35

SCREW, TAPPING (5X12)

93903-25280

$1.25

36

WASHER, PLAIN (4MM)

94103-04700

$0.87

37

E-RING (3MM)

94540-03010

$1.01

38

E-RING (7MM)

94540-07018

$3.49

39

BOLT, FLANGE (8X45)

95701-08045-07

$2.76

40

WASHER, PLAIN (10.2MM) | Use up to Frame SN EK000019

88514-HAC-003

$2.74

40

WASHER (10.2X18X0.8) | Use from Frame SN EK000020

90502-MJN-A00

$3.04

41

TAPE, MAGIC (25X50) (FEMALE)

83643-355-300

$2.80
