Partiron

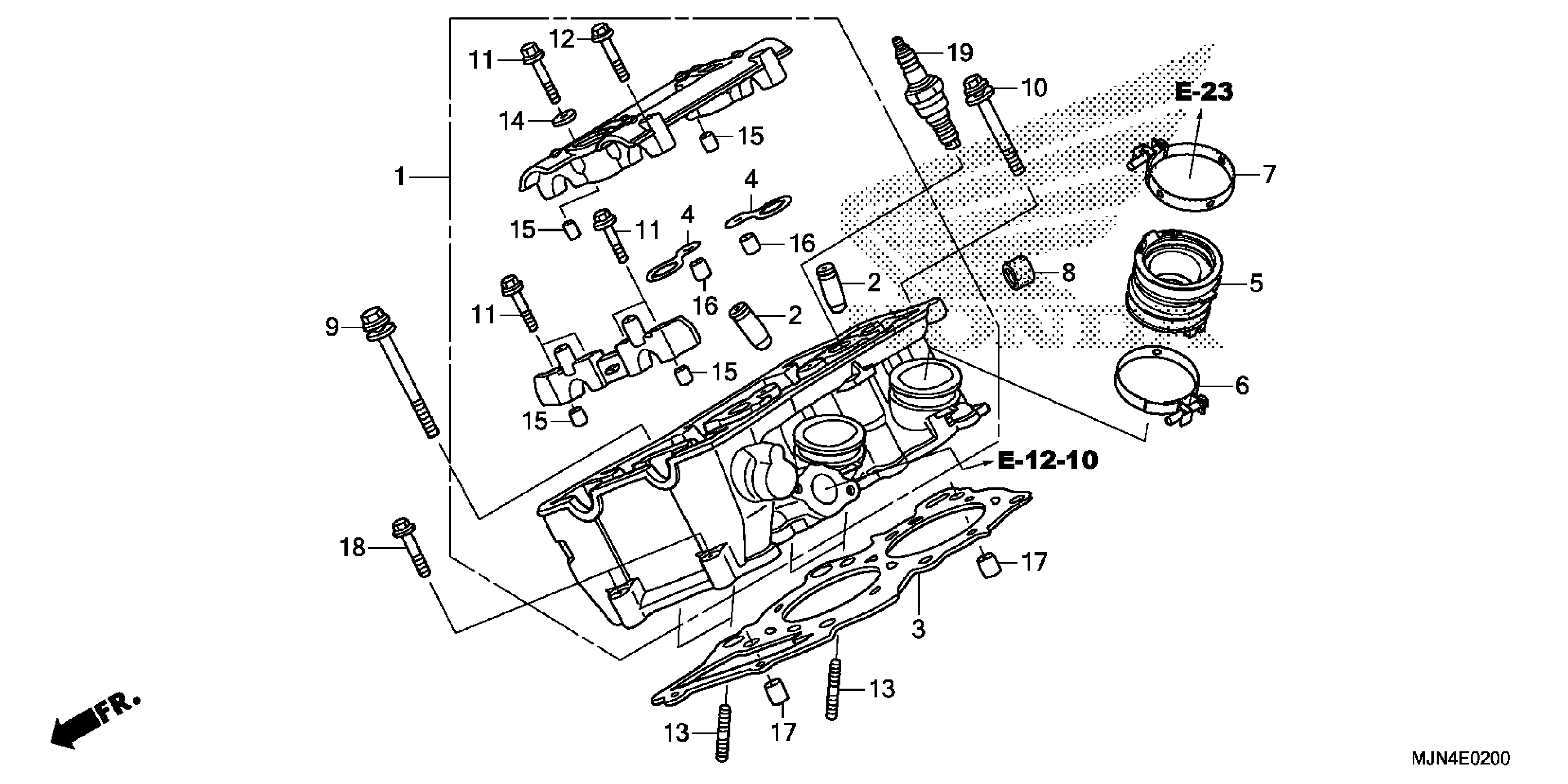

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 RIGHT CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY., R.

12010-MJN-A00

$1,008.87

2

GUIDE, VALVE (OVER SIZE)

12205-MCS-305

$16.03

3

GASKET, R. CYLINDER HEAD

12251-MCS-003

$62.76

4

GASKET, PLUG HOLE

12395-MCS-000

$4.96

5

INSULATOR, THROTTLE BODY

16211-MJN-A00

$22.60

6

BAND A, INSULATOR

16217-MCS-000

$3.97

7

BAND B, INSULATOR

16218-MJN-A00

$6.81

8

TUBE, BRAKE PEDAL SPRING

46515-MN1-670

$3.01

9

BOLT-WASHER (10X105)

90007-MAT-000

$9.97

10

BOLT-WASHER (10X90)

90007-MCS-000

$5.13

11

BOLT, FLANGE (6X48)

90018-425-000

$3.19

12

BOLT, FLANGE (6X39.5)

90019-MA6-000

$2.80

13

BOLT, STUD (8X24)

90035-MM5-000

$4.88

14

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

15

PIN, DOWEL (8X16) This part replaces 90702-HC4-000.

94301-08160

$1.93

15

PIN, DOWEL (8X16)

94301-08160

$1.93

16

PIN, DOWEL (10X16)

94301-10160

$2.80

17

PIN, DOWEL (12X20)

94301-12200

$2.80

18

BOLT, FLANGE (6X40)

95701-06040-00

$1.74

19

SPARK PLUG (CR7EH9) (NGK)

98059-57916

$7.24

19

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-57926.

98059-59916

$6.79

19

SPARK PLUG (CR8EH9) (NGK) | (Optional).

98059-58916

$7.50

19

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-58926.

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-58926.

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59910.

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59910.

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK)

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK) | (Optional).

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK) This part replaces 98059-59926.

98059-59916

$6.79

19

SPARK PLUG (CR9EH-9) (NGK) | (Optional). This part replaces 98059-59926.

98059-59916

$6.79
