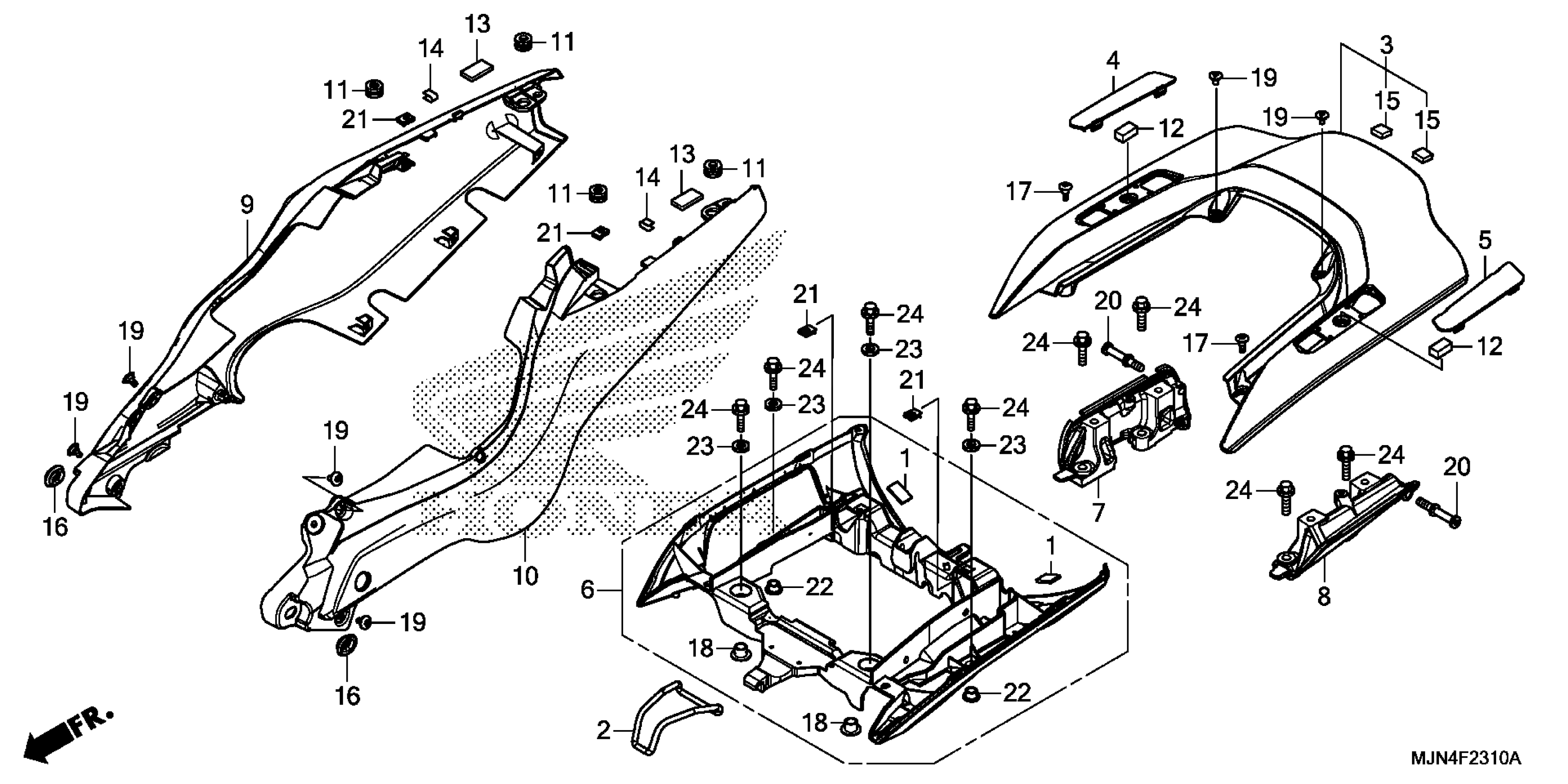

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 REAR COWL Diagram

#

Description
Price

1

RUBBER, RADIATOR SHROUD

19036-GS2-600

$2.67

2

BAND B, TOOL

50291-MCW-D00

$8.30

3

COWL, RR. CENTER *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

77211-MJN-A00ZA

$149.77

3

COWL, RR. CENTER *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

77211-MJN-A00ZB

$149.77

3

COWL, RR. CENTER *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

77211-MJN-A00ZC

$149.77

4

COVER, R. RR. CENTER *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

77213-MJN-A00ZA

$5.19

4

COVER, R. RR. CENTER *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

77213-MJN-A00ZB

$5.19

4

COVER, R. RR. CENTER *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

77213-MJN-A00ZC

$5.19

5

COVER, L. RR. CENTER *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

77218-MJN-A00ZA

$5.19

5

COVER, L. RR. CENTER *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

77218-MJN-A00ZB

$5.19

5

COVER, L. RR. CENTER *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

77218-MJN-A00ZC

$5.19

6

BASE, RR. CENTER COWL *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

77221-MJN-A00ZA

$126.97

6

BASE, RR. CENTER COWL *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

77221-MJN-A00ZB

$126.97

6

BASE, RR. CENTER COWL *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

77221-MJN-A00ZC

$126.97

7

STAY, R. COWL BASE *NHA86M* (MAT BALLISTIC BLACK)

77223-MJN-A00ZA

$100.35

8

STAY, L. COWL BASE *NHA86M* (MAT BALLISTIC BLACK)

77224-MJN-A00ZA

$100.35

9

COWL, R. RR. *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

77231-MJN-A00ZA

$240.57

9

COWL, R. RR. *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

77231-MJN-A00ZB

$230.19

9

COWL, R. RR. *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

77231-MJN-A00ZC

$230.19

10

COWL, L. RR. *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

77236-MJN-A00ZA

$230.19

10

COWL, L. RR. *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

77236-MJN-A00ZB

$230.19

10

COWL, L. RR. *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

77236-MJN-A00ZC

$230.19

11

RUBBER, RR. FENDER CUSHION

80101-165-000

$3.48

12

RUBBER

61313-GJ1-000

$4.72

12

RUBBER, STOPPER

80105-MAH-610

$6.54

13

RUBBER, SPACER

80109-GEY-640

$2.45

14

RUBBER, PROTECTOR

80119-MGE-300

$2.80

15

RUBBER, COVER SETTING (LOWER)

83523-MR5-870

$2.80

16

GROMMET, AIR CLEANER HOUSING

83551-GE2-000

Unavailable

17

SCREW, SPECIAL (5X17)

90103-MGE-000

$1.72

18

COLLAR, DOOR

90105-HL1-A00

$3.78

19

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.36

20

BOLT, HOOK (8MM)

90116-MJN-A00

$4.45

21

NUT, CLIP (5MM)

90677-KAN-961

$3.79

22

COLLAR

91501-MGS-D30

$2.77

23

WASHER, PLAIN (8MM)

94101-08800

$1.71

24

BOLT, FLANGE (8X28)

95701-08028-08

$1.91
