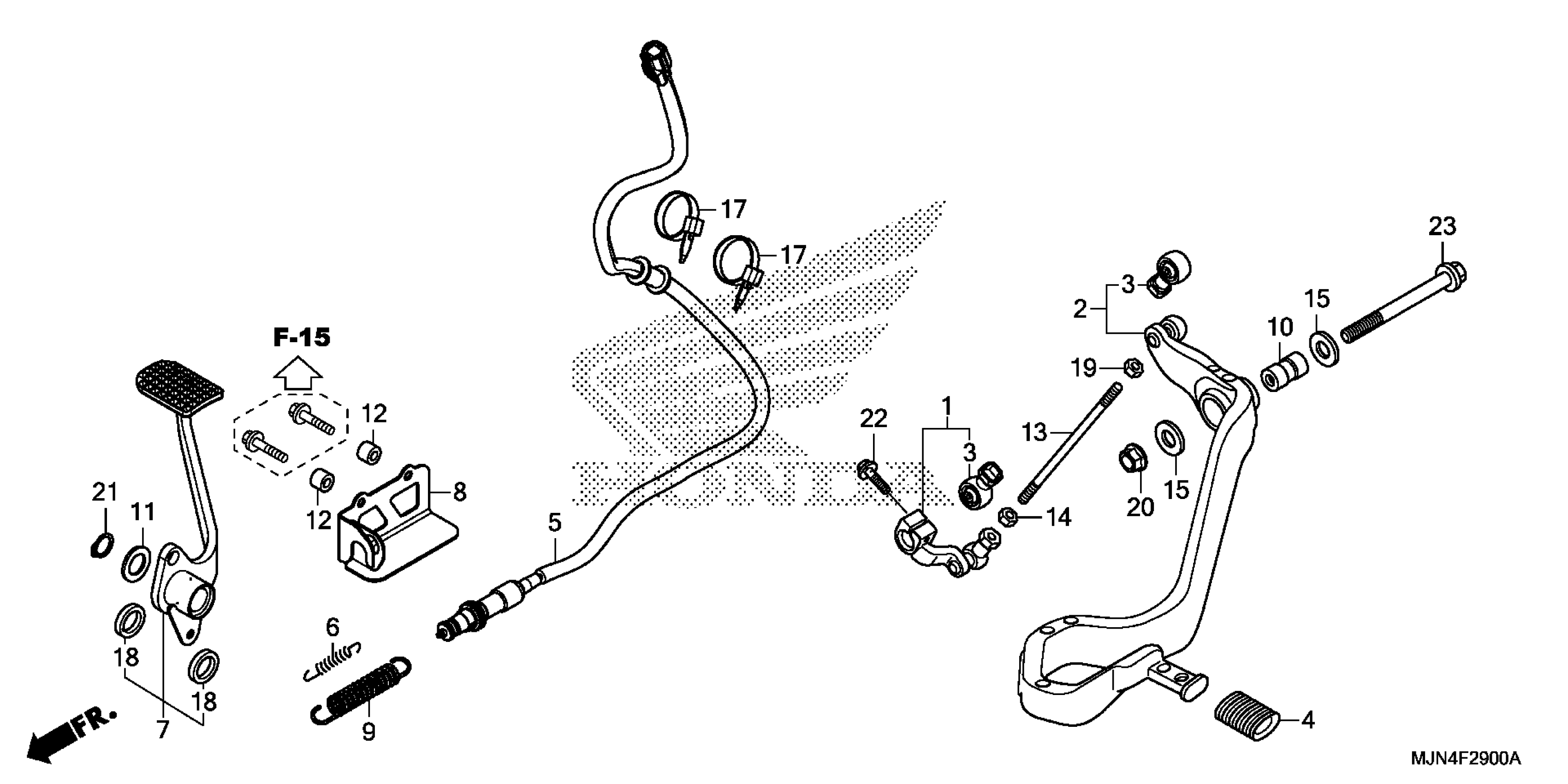

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 PEDAL Diagram

#

Description
Price

1

ARM, GEARSHIFT

24710-MCS-G00

$35.76

2

PEDAL, GEARSHIFT This part replaces 24720-MJN-305.

24720-MJN-A00

$104.60

3

COVER, DUST

24724-MBW-D21

$6.66

4

RUBBER, CHANGE PEDAL

24781-371-000

$4.89

5

SWITCH ASSY., RR. STOP

35350-MJN-A00

$12.47

5

SWITCH ASSY., RR. STOP

35350-MJN-A01

$12.43

6

SPRING, STOP SWITCH | Use up to Frame SN EK001188

35357-MJN-A00

$4.09

6

SPRING, STOP SWITCH | Use from Frame SN EK001189

35357-MJN-A01

$4.24

7

PEDAL ASSY., RR. BRAKE

46500-MJN-A00

$104.60

7

PEDAL ASSY., RR. BRAKE This part replaces 46500-MJN-305.

46500-MJN-A00

$104.60

8

STAY, STOP SWITCH

46506-MJN-A00

$15.47

9

SPRING, BRAKE PEDAL RETURN | Use up to Frame SN EK001188

46514-MJN-A00

$6.37

9

SPRING, BRAKE PEDAL RETURN | Use from Frame SN EK001189

46514-MJN-A01

$6.54

10

COLLAR, RR. BRAKE PIVOT

46515-MM8-000

$10.75

11

WASHER, BUSH

53312-657-000

$9.38

12

COLLAR, STEERING DAMPER

53709-MFL-000

$1.91

13

BOLT, TIE ROD

90165-MJN-A00

$7.38

14

NUT, GOVERNOR ARM FIXING (LEFT HAND THREAD)

90201-700-000

$0.71

15

WASHER, SPROCKET SETTING

90551-033-000

$1.60

16

CLIP, SWITCH COVER

90601-KAF-003

$2.47

17

BAND, WIRE (BLACK)

90652-KT1-771

$4.28

18

DUST SEAL (17X23X3) (NOK)

91206-968-003

$3.52

19

NUT, HEX. (6MM)

94002-06000-0S

$1.21

20

NUT, FLANGE (10MM)

94050-10000

$1.43

21

CIRCLIP (OUTER) (15MM)

94511-15000

$0.63

22

BOLT, FLANGE (6X20)

95701-06020-00

$1.63

23

BOLT, FLANGE (10X100)

95701-10100-00

$2.72
