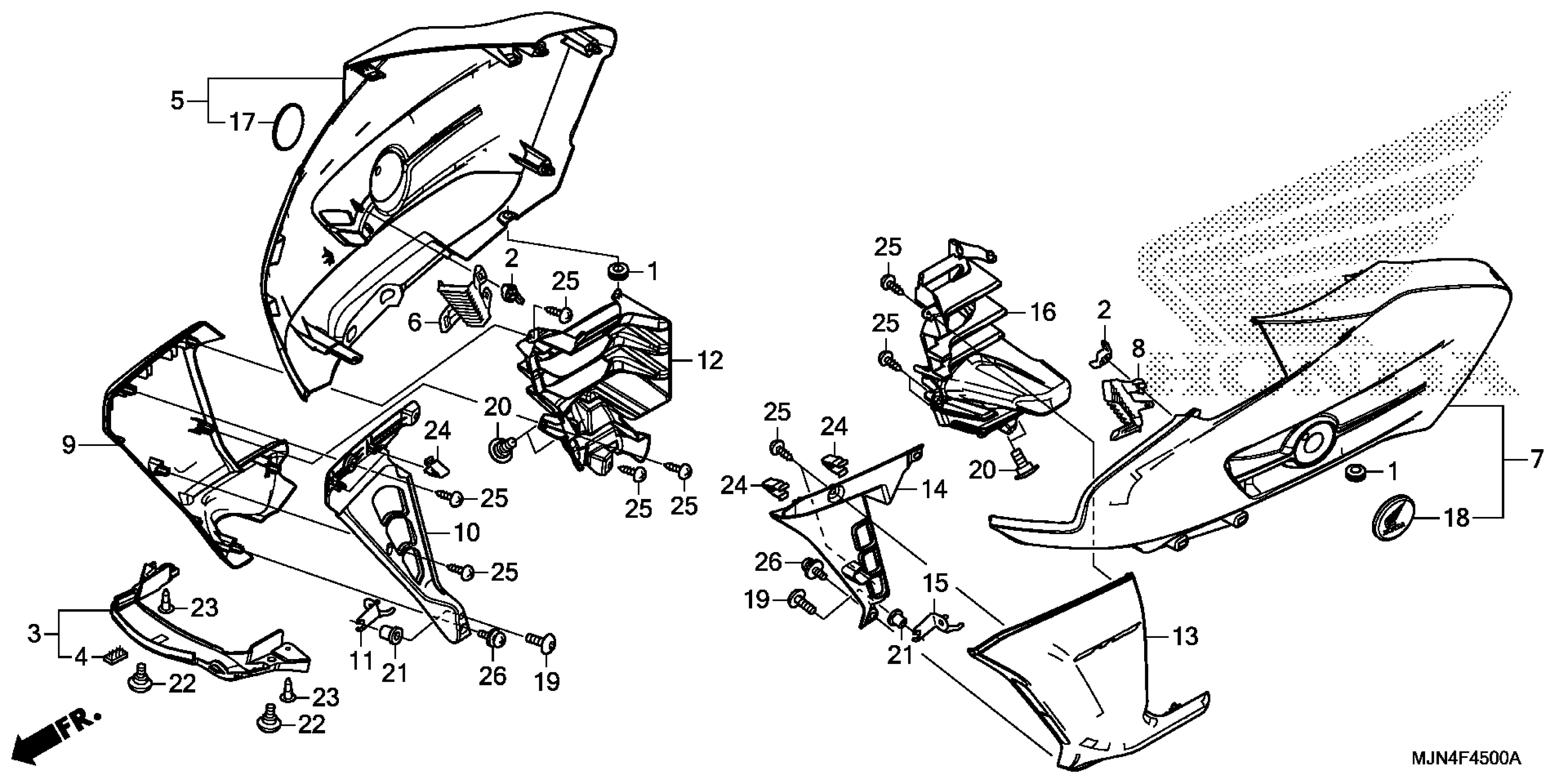

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 MIDDLE COWL Diagram

#

Description
Price

1

GROMMET A, RR. COVER (8X16X6.6)

11344-MB0-000

$2.62

2

CLIP, TWIST

64213-MJN-A01

$1.78

3

COWL, FR. (LOWER) *R342C* (CANDY PROMINENCE RED) | Candy prominence red R342C;

64225-MJN-A00ZA

$20.04

3

COWL, FR. (LOWER) *PB388M* (ION BLUE METALLIC) | Ion blue metallic PB388M;

64225-MJN-A00ZB

$20.04

3

COWL, FR. (LOWER) *NH463M* (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

64225-MJN-A00ZC

$20.04

4

FASTENER B, DUAL LOCK (20X10)

64243-MJG-670

$2.00

5

COWL SET, R. MIDDLE *R342C* (WL) (CANDY PROMINENCE RED) | Candy prominence red R342C;

64300-MJN-A00ZD

$307.20

5

COWL SET, R. MIDDLE *PB388M* (WL) (ION BLUE METALLIC) | Ion blue metallic PB388M;

64300-MJN-A00ZE

$307.20

5

COWL SET, R. MIDDLE *NH463M* (WL) (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

64300-MJN-A00ZF

$319.13

6

COVER, R. MIDDLE

64315-MJN-A00

$26.25

7

COWL SET, L. MIDDLE *R342C* (WL) (CANDY PROMINENCE RED) | Candy prominence red R342C;

64350-MJN-A00ZD

$319.13

7

COWL SET, L. MIDDLE *PB388M* (WL) (ION BLUE METALLIC) | Ion blue metallic PB388M;

64350-MJN-A00ZE

$321.01

7

COWL SET, L. MIDDLE *NH463M* (WL) (DARKNESS BLACK METALLIC) | Darkness black metallic NH463M;

64350-MJN-A00ZF

$321.01

8

COVER, L. MIDDLE

64365-MJN-A00

$21.80

9

COVER SET, R. SHROUD (TYPE1) (WL)

64405-MJN-A00ZB

$98.23

10

INNER, R. SHROUD

64420-MJN-A00

$27.29

11

STAY, R. SHROUD

64421-MJN-A00

$5.14

12

LOUVER, R. SHROUD

64430-MJN-A00

$125.20

13

COVER SET, L. SHROUD (TYPE1) (WL)

64455-MJN-A00ZB

$98.23

14

INNER, L. SHROUD

64470-MJN-A00

$28.51

15

STAY, L. SHROUD

64471-MJN-A00

$5.14

16

LOUVER, L. SHROUD

64480-MJN-A00

$125.20

17

BADGE, R. PRODUCT

64503-MFL-000

$34.51

18

BADGE, L. PRODUCT

64508-MFL-000

$34.51

19

SCREW, TRUSS (5X16)

90103-MGS-D50

$1.71

20

SCREW, PAN (6X14)

90106-KBV-000

$3.64

21

NUT, COWL SETTING (5MM)

90111-KW3-003

$4.20

22

SCREW, SPECIAL (5X11)

90114-MGE-000

$2.36

23

CLIP, BUMPER SEAL

90116-SP0-003

$4.40

24

CLIP, SNAP FITTING (PO)(NATURAL)

90666-SDA-A01

$0.75

25

SCREW, TAPPING (4X10)

93903-24280

$1.23

26

SCREW-WASHER (5X8)

93891-05008-07

$0.90
