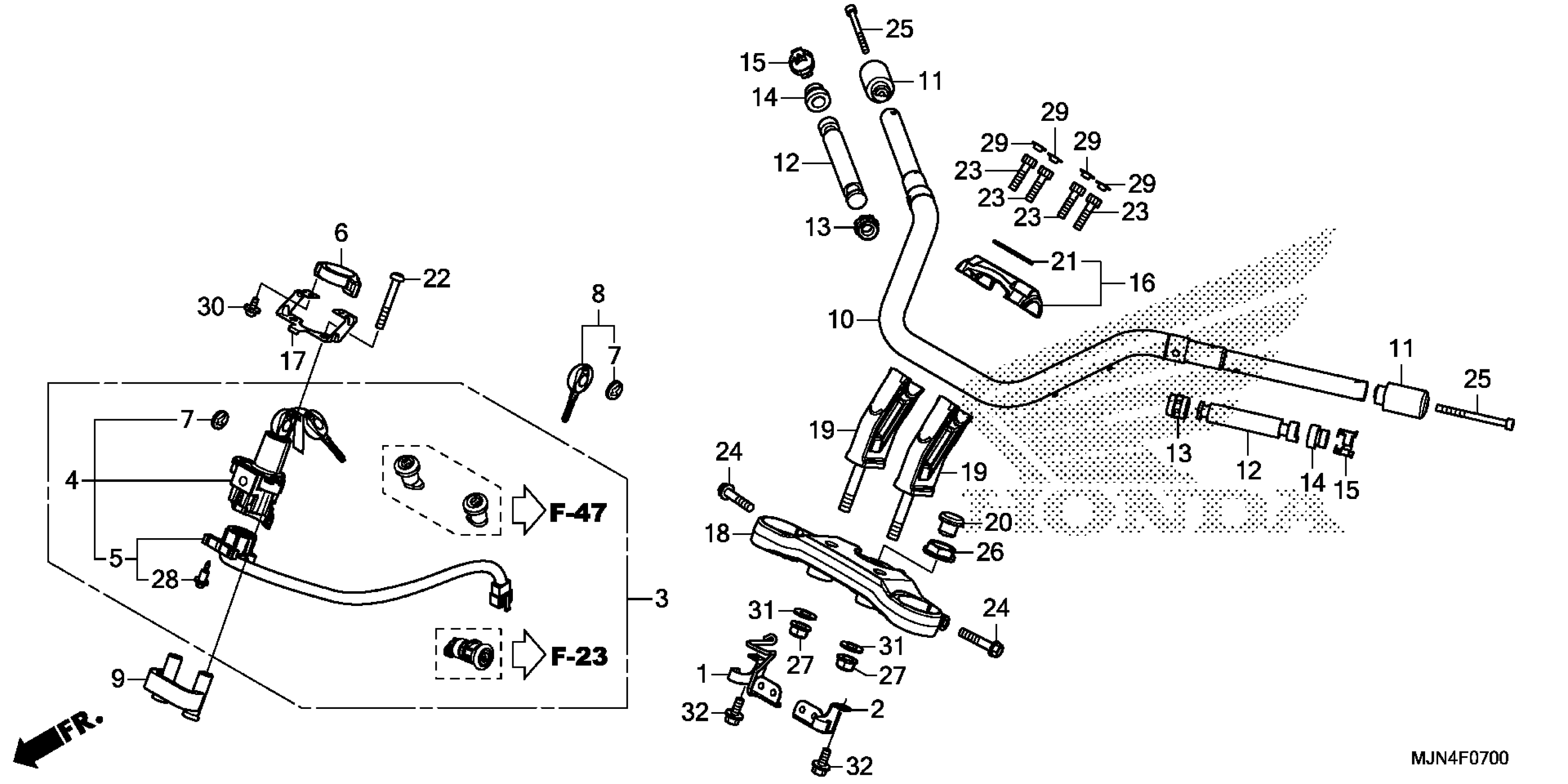

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 HANDLEBAR + TOP BRIDGE Diagram

#

Description
Price

1

GUIDE, R. FR. CABLE

17915-MJN-A00

$12.43

2

GUIDE, L. FR. CABLE

17916-MJN-A00

$8.33

3

LOCK SET

35010-MJN-A00

Unavailable

4

SWITCH ASSY., COMBINATION & LOCK

35100-MJN-A01

$169.01

5

BASE, CONTACT

35101-MJN-D01

$77.22

6

COVER, COMBINATION SWITCH

35106-MJN-A00

$11.04

7

EMBLEM, KEY | (Optional).

35113-MGP-000

$4.16

8

KEY, BLANK | (Optional).

35121-MGP-A93

$21.01

8

KEY, CUT INCL. OVERNIGHT SHIP (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MGP-A93RUSH

Unavailable

8

KEY, CUT INCL. STD SHIPPING (PLEASE SEE WAVE CUTTING SERV. REQUEST FORM IN IN) | (Optional).

35121-MGP-A93STD

Unavailable

9

STAY, KEY MOUNTING

50197-MJN-A00

$25.99

10

HANDLEBAR (COO)

53100-MJN-305

$189.10

11

WEIGHT, HANDLEBAR

53104-MJN-A00

$24.65

12

WEIGHT B, HANDLEBAR

53105-KV3-000

$15.52

13

RUBBER A, HANDLE WEIGHT

53106-MJ0-000

$3.66

14

RUBBER B, HANDLE WEIGHT

53107-MJ0-000

$3.52

15

RING, HANDLE WEIGHT SNAP

53108-MJ0-000

$4.78

16

HOLDER ASSY., HANDLE (UPPER)

53130-MJN-A00

$99.25

17

STAY, RECEIVER UNIT

53180-MJN-D00

$8.97

18

BRIDGE, FORK TOP

53230-MJN-A00

$155.25

19

HOLDER, HANDLE (LOWER)

53231-MJN-A00

$54.07

20

CAP, STEERING STEM NUT

53232-MJ4-670

$12.06

21

EMBLEM, HANDLE HOLDER (UPPER)

86531-MJN-A00

$7.59

22

BOLT, ONE-WAY (8MM)

90107-MJN-A00

$4.20

23

BOLT, SOCKET (8X34)

90112-MBR-J10

$2.83

24

BOLT, FLANGE (8X40)

90165-MCJ-000

$2.20

25

BOLT, SOCKET (6X70)

90191-MAJ-G00

$2.80

26

NUT, STEERING STEM

90304-MJ4-670

$13.83

27

NUT, FLANGE (12MM) (FUSE RASHI)

90306-KF0-003

Unavailable

28

SCREW, TAPPING (3X16)

91059-KY2-711

$2.80

29

CAP, SOCKET BOLT (8MM)

91455-MA6-750

$3.46

30

SCREW-WASHER (5X8)

93891-05008-08

$1.06

31

WASHER, PLAIN (12MM)

94101-12000

$1.12

32

BOLT, FLANGE (6X14)

96001-06014-07

$1.09
