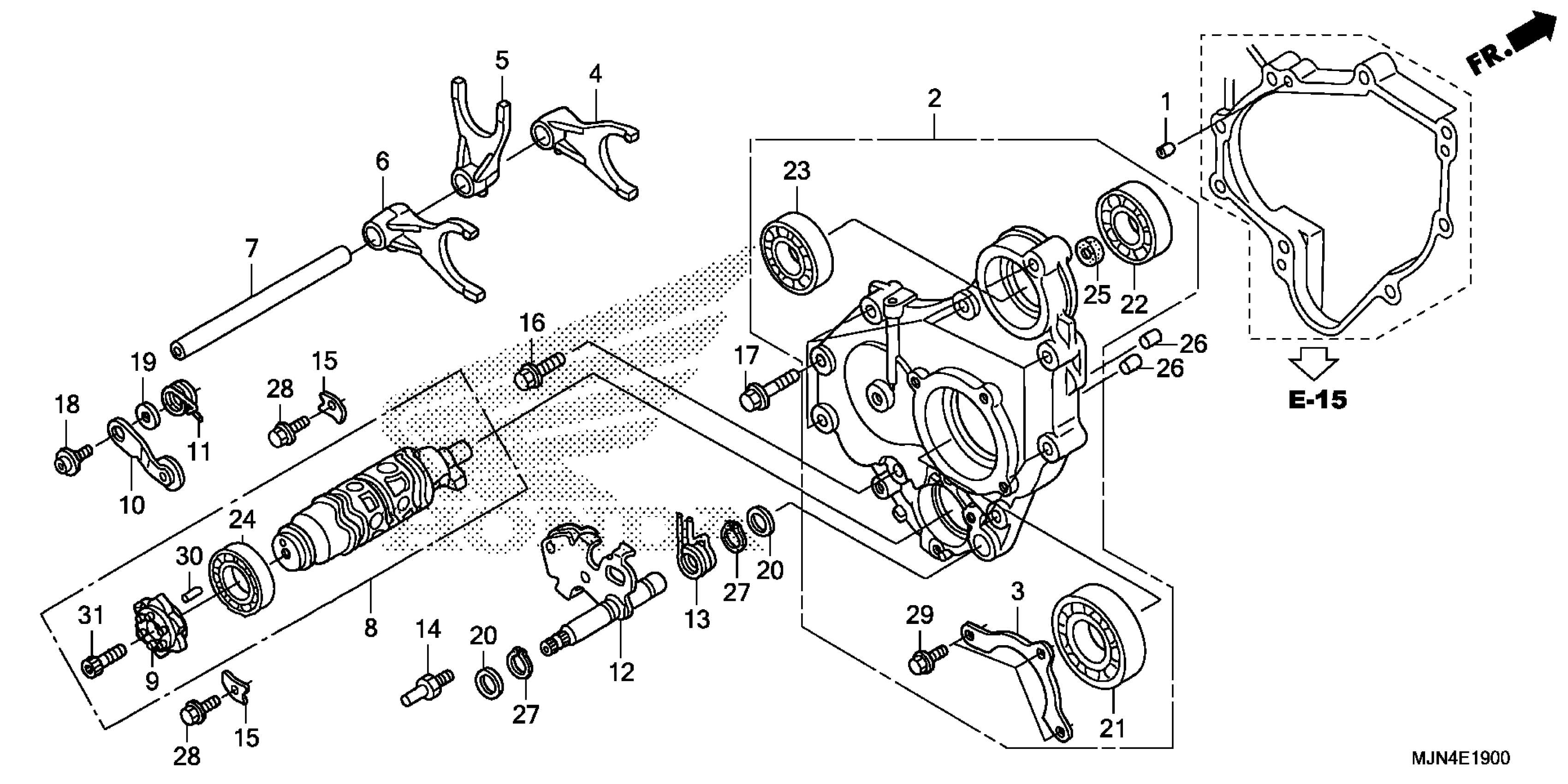

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 GEARSHIFT DRUM Diagram

#

Description
Price

1

ORIFICE B (1.6MM)

11206-MCS-000

$2.03

2

HOLDER, TRANSMISSION BEARING

21120-MCS-000

$321.80

3

PLATE, COUNTERSHAFT BEARING SETTING

23222-MCS-000

$5.89

4

FORK, FR. GEARSHIFT

24211-MCS-000

$60.41

5

FORK, CENTER GEARSHIFT

24212-MCS-000

$60.41

6

SWINGARM, GEARSHIFT

24213-MCS-000

$60.41

7

SHAFT, GEARSHIFT FORK

24261-MCS-000

$17.84

8

DRUM, GEARSHIFT

24310-MCS-000

$148.43

9

CENTER, SHIFT DRUM

24315-MAS-E00

$36.44

10

ARM, GEARSHIFT DRUM STOPPER

24430-096-700

$11.61

11

SPRING, GEARSHIFT DRUM STOPPER

24435-MCS-000

$3.62

12

SPINDLE, GEARSHIFT

24610-MCS-000

$93.48

13

SPRING, SHIFT RETURN

24651-MBB-000

$6.39

14

PIN, SHIFT RETURN SPRING

24652-035-000

$4.01

15

PLATE, SHIFT DRUM BEARING SETTING

24655-MCS-000

$3.13

16

BOLT, FLANGE (8X32)

90002-MCS-000

$1.85

17

BOLT, FLANGE (8X40)

90003-MCS-000

$1.93

18

PIVOT, SHIFT DRUM STOPPER ARM

90022-MY5-600

$11.61

19

WASHER, DRUM STOPPER

90417-360-000

$1.74

20

WASHER (14MM)

90451-155-000

$3.78

21

BEARING, SPECIAL RADIAL BALL (63/28)

91001-MCS-003

$21.38

22

BEARING, SPECIAL RADIAL BALL (63/22)

91003-MCS-003

$25.74

23

BEARING, RADIAL BALL (22X52X15)

91005-MCS-003

$14.29

24

BEARING, BALL (16005) (NTN)

91008-374-003

$15.03

25

OIL SEAL (8X16X5.5)

91209-MCS-000

$3.80

26

PIN B, DOWEL (8X14)

94302-08140

$2.25

27

CIRCLIP (OUTER) (14MM)

94510-14000

$1.49

28

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

29

BOLT, FLANGE (6X16)

95701-06016-00

$1.55

30

ROLLER (4X8)

96220-40080

$1.49

31

BOLT, SOCKET (8X20)

96600-08020-10

$2.13
