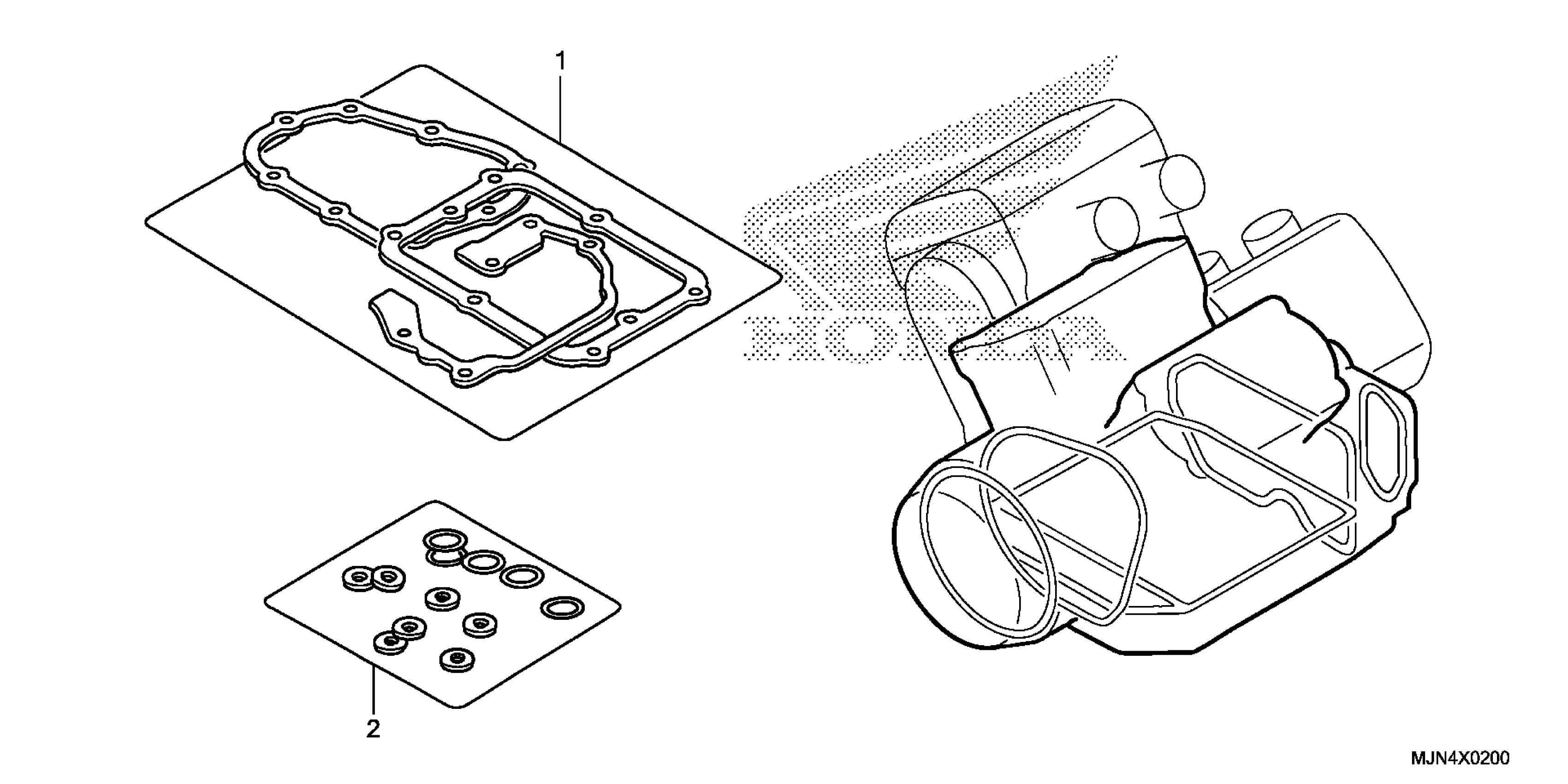

Honda CTX1300AAC (14) MOTORCYCLE, JPN, VIN# JH2SC745-EK000001 GASKET KIT B Diagram

#

Description
Price

1

GASKET SHEET KIT B

06115-MCS-020

$51.23

1

GASKET, FR. COVER This part replaces 11394-MCS-010.

11394-MCS-020

$18.82

1

GASKET, TENSIONER LIFTER

14560-MCS-003

$4.13

1

GASKET, WATER PUMP

19226-MCS-A10

$16.60

1

GASKET, SLAVE CYLINDER

22862-MGJ-D00

$4.64

2

WASHER O-RING KIT B

06116-MCS-010

$81.03

2

GASKET, OIL STRAINER

15154-MM5-000

$6.15

2

SEAL, RING

15433-KGB-610

$2.48

2

WASHER, SEALING (6MM)

90442-397-000

$2.25

2

WASHER, NEUTRAL

90443-MJ6-000

$1.75

2

WASHER, SEALING (8.5MM)

90463-MCS-000

$2.04

2

WASHER, SEALING (6.5MM)

90463-ML7-000

$2.80

2

WASHER, SEALING (6MM)

90488-425-000

$2.07

2

O-RING (19.9X3.1)

91301-MCS-A11

$3.21

2

O-RING (45X2.5) (ARAI)

91301-679-003

$4.77

2

O-RING (18X3) (ARAI)

91302-KE8-003

$2.38

2

O-RING (18.1X3.6)

91302-MAL-601

$3.28

2

O-RING (15X2.5)

91302-377-000

$4.94

2

O-RING (95.5X2.4)

91303-MCS-003

$5.61

2

O-RING (13.8X2.5)

91303-377-000

$3.18

2

O-RING (23X2.4) (ARAI)

91304-GC8-003

$2.80

2

O-RING

91304-MAJ-G41

$5.78

2

O-RING (9.8X2.4)

91305-422-000

$2.36

2

O-RING (16X2.1) (NOK)

91309-PX4-003

$2.80

2

O-RING (24.4X3.1) This part replaces 91309-425-003.

91312-MG7-003

Unavailable

2

O-RING (24.4X3.1)

91312-MG7-003

Unavailable

2

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.42

2

O-RING (14.8X2.2)

91313-MG7-004

$3.42

2

OIL SEAL, PASSAGE PIPE (20.3MM)

91315-MCS-003

$2.77

2

O-RING (66MM)

91351-881-000

$4.19

2

O-RING (29.7X2.4) (NOK) This part replaces 91356-425-003.

91356-425-005

$2.80

2

O-RING (29.7X2.4) (NOK)

91356-425-005

$2.80

2

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.57
